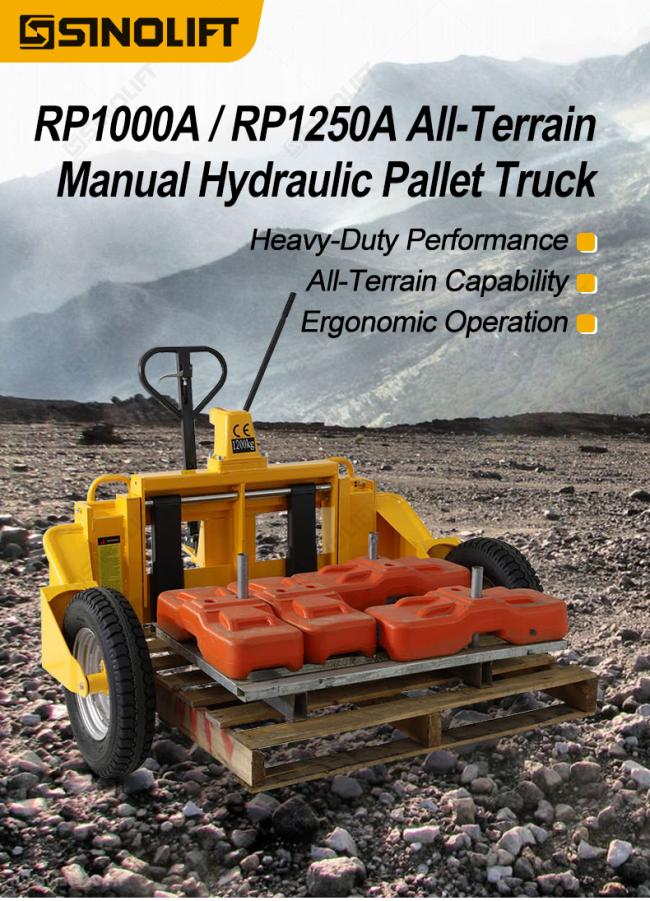

RP1000A / RP1250A All Terrain Manual Hydraulic Pallet Truck
Product Name
RP1000A / RP1250A All Terrain Manual Hydraulic Pallet Truck
The RP1000A/RP1250A All-Terrain Manual Pallet Truck delivers heavy-duty performance, ergonomic control, and smart fork width adjustment—built to withstand tough outdoor use on any surface.
Key Features

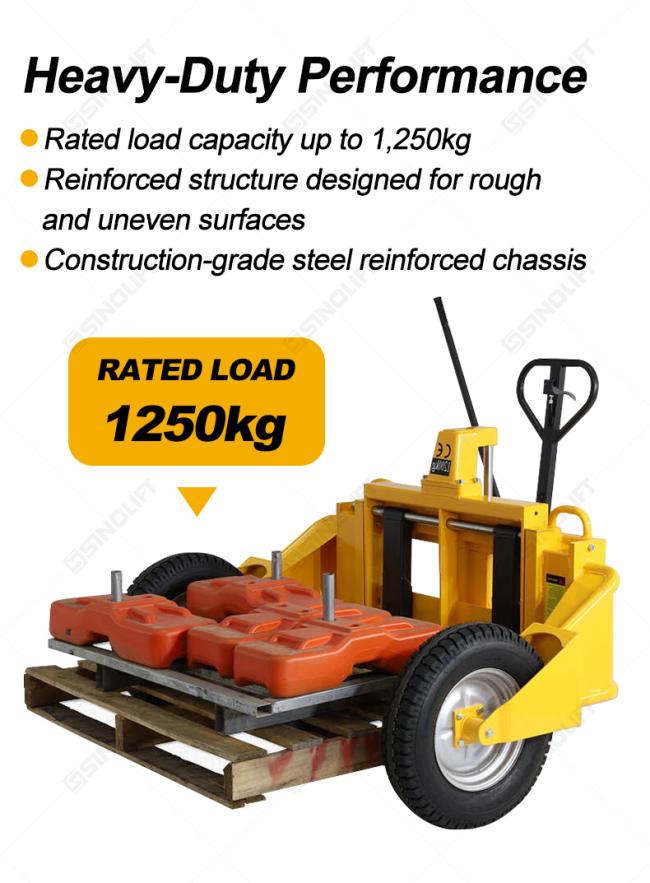

1. Heavy Duty Performance
Rated load capacity up to 1,250kg
Reinforced structure designed for rough and uneven surfaces
Construction-grade steel reinforced chassis

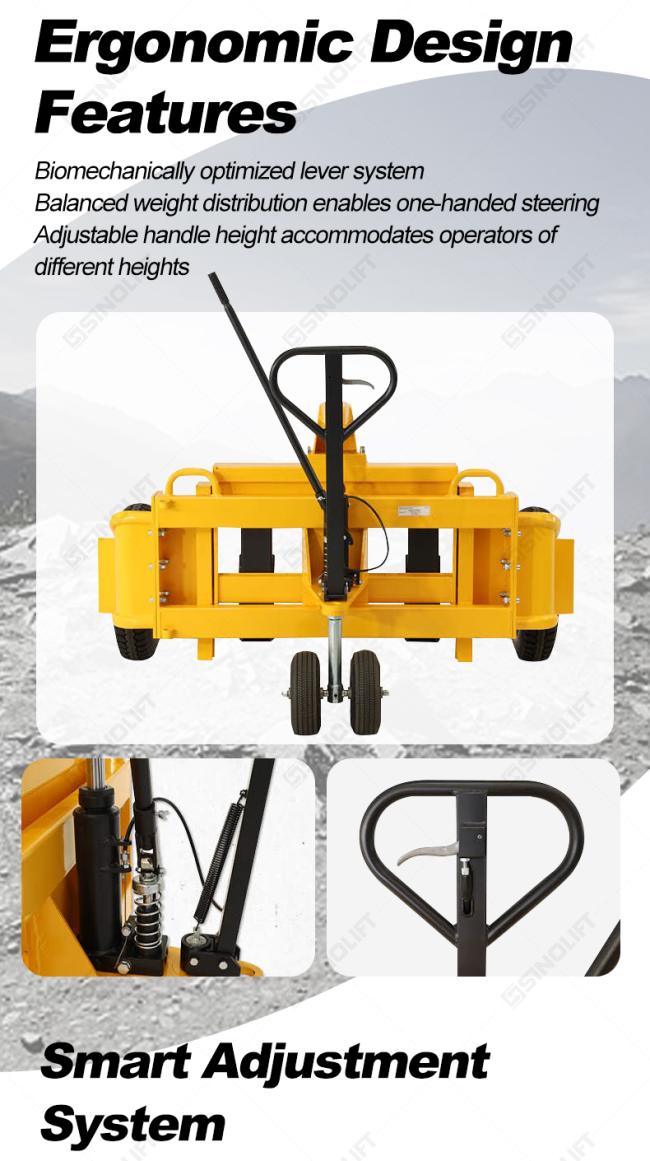

2. Ergonomic Design Features
Biomechanically optimized lever system
Balanced weight distribution enables one-handed steering
Adjustable handle height accommodates operators of different heights
3. All-Terrain Adaptability
IP54 certified dustproof and waterproof construction
Suitable for outdoor environments (construction sites, nurseries, warehouses)

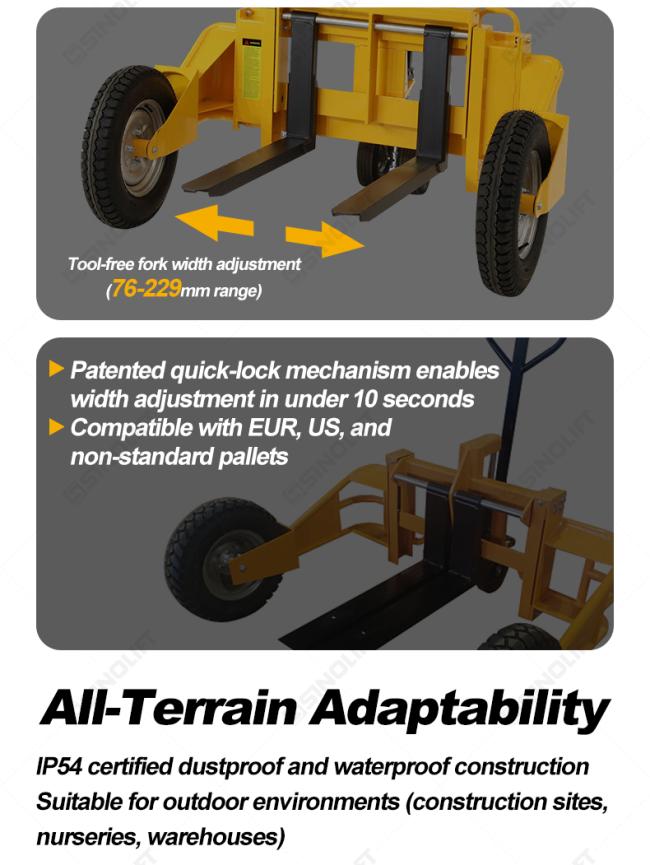

4. Smart Adjustment System
Tool-free fork width adjustment (76 229mm range)
Patented quick lock mechanism enables width adjustment in under 10 seconds
Compatible with EUR, US, and non-standard pallets
Application Scenarios
- Construction Sites
- Warehousing & Logistics
- Nurseries & Garden Centers
- Agriculture
- Factory Workshops
Product Specifications
| Specification | Unit | RP1000A | RP1250A |
| Rated Capacity | kg | 1000 | 1250 |
| Max. Fork Height | h1 mm | 240 | 240 |
| Min. Fork Height | h mm | 70 | 70 |
| Fork Length | l mm | 800 (860) | 800 (860) |
| Load Center | C mm | 400 (430) | 400 (430) |
| Adjustable Fork Width | mm | 216-680 | 256-680 |
| Individual Fork Width | b mm | 100 | 120 |
| Distance inside the Front Wheel | B1 mm | 1230 | 1230 |
| Axle Distance between the front Wheel and the rear steering wheel | Y mm | 973 | 973 |
| Front Load Wheel (Dia.×Wid) | mm | Ø568×145 | Ø568×145 |
| Rear Steering Wheel (Dia.×Wid) | mm | Ø250 | Ø250 |
| Turn Radius | Wa mm | 1500 | 1500 |
| Overall Size (L×W×H) | mm | 1406×1670×1280 | 1406×1670×1280 |
| Net Weight | kg | 210 | 238 |
