Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker
Product Name
Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

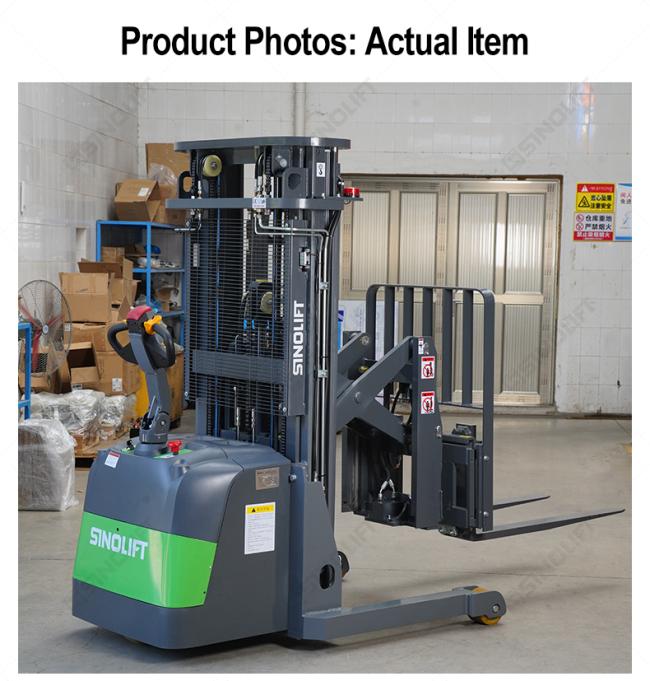

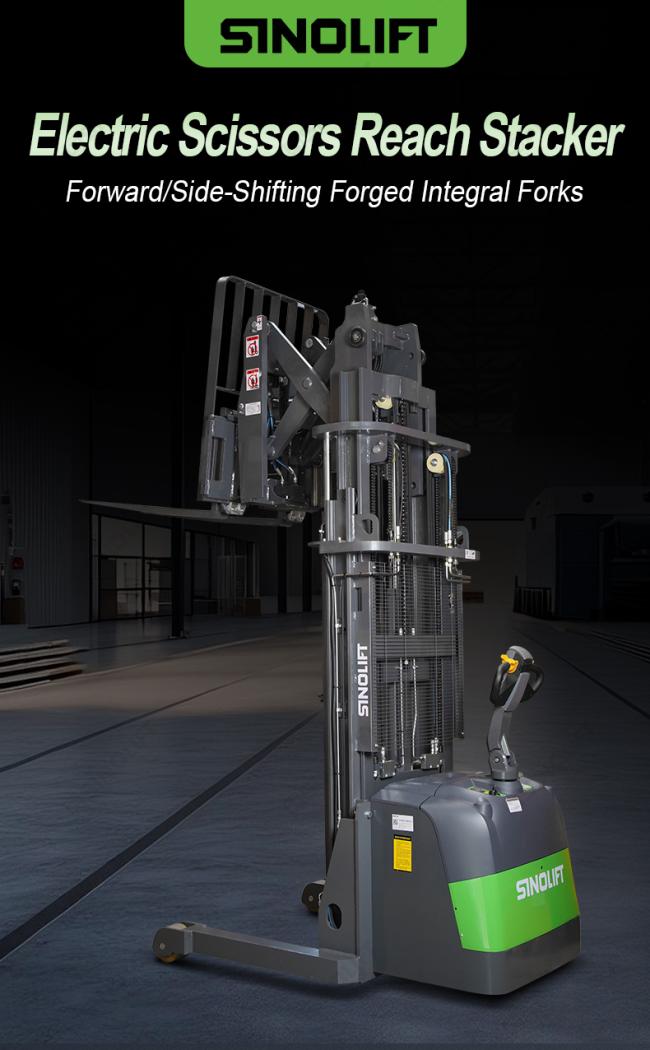

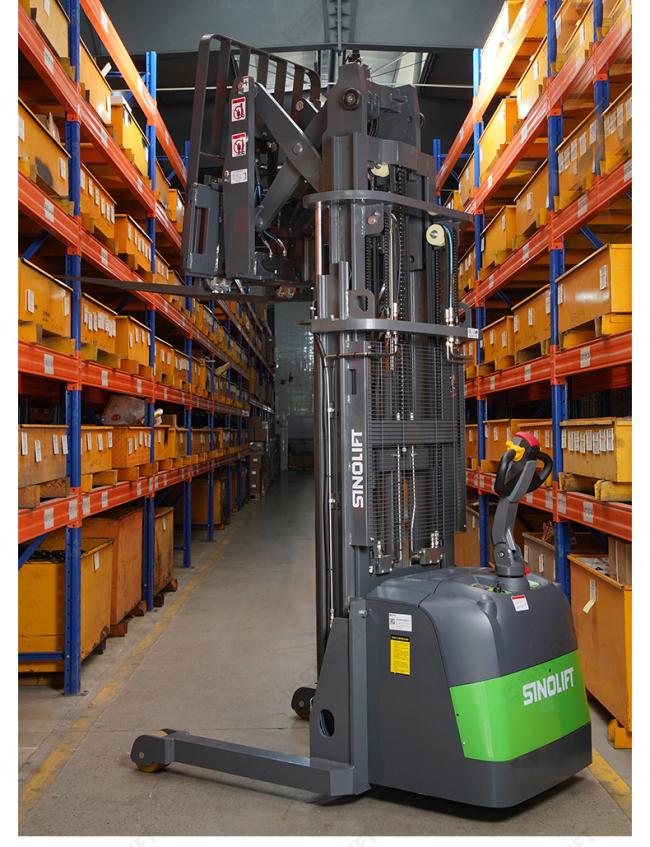

The Sinolift CQDX15 & CQDX20 Electric Scissors Reach Stacker is engineered for superior performance in confined spaces. Featuring a steering system and shearing forward function for unparalleled maneuverability, its robust design ensures durable performance where others can't reach. Ideal for warehouse, dock, and retail applications, it combines powerful lifting with intuitive electric operation for efficient, safe material handling.
Key Features
Sinolift CQDX15 & CQDX20: The Narrow-Aisle Specialist

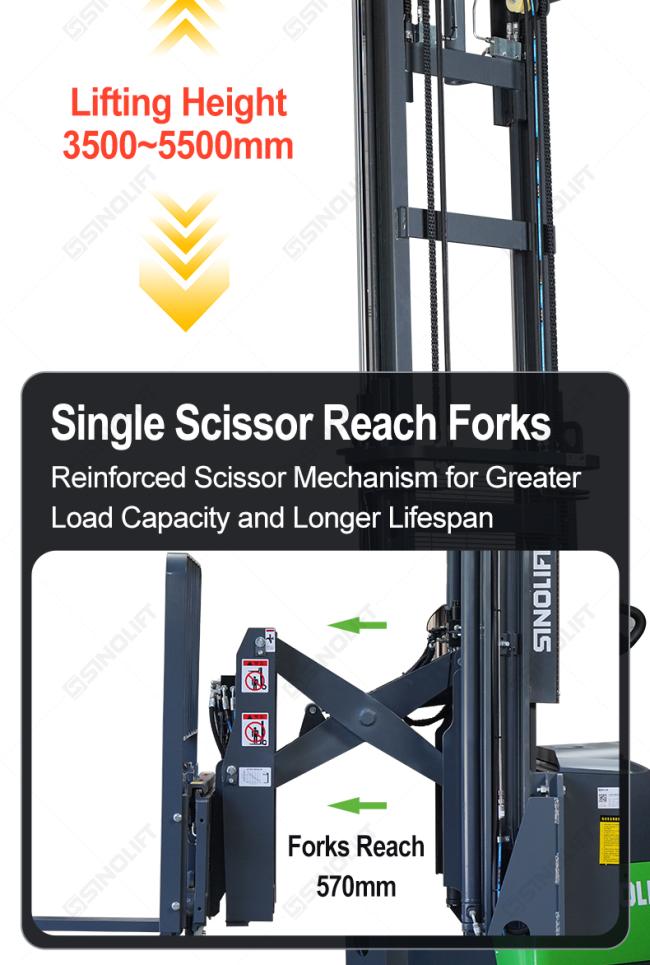

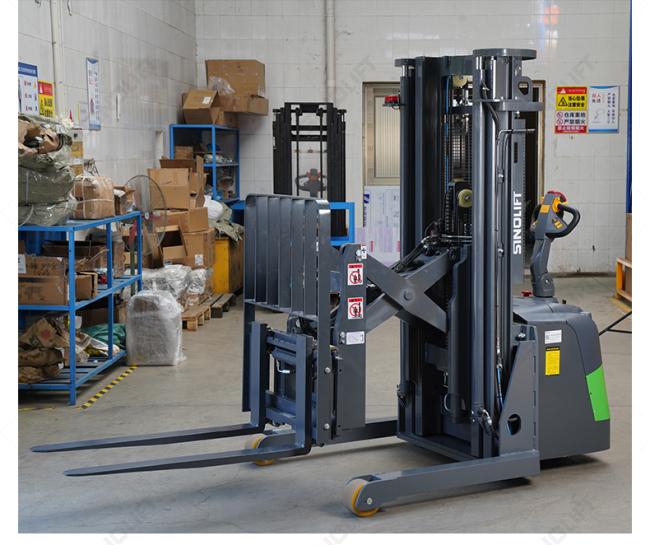

1. Unmatched Maneuverability: Featuring a precise steering system and a unique scissor-forward reach function, this stacker delivers unparalleled agility for operating in the tightest aisles and confined spaces where other equipment cannot fit.

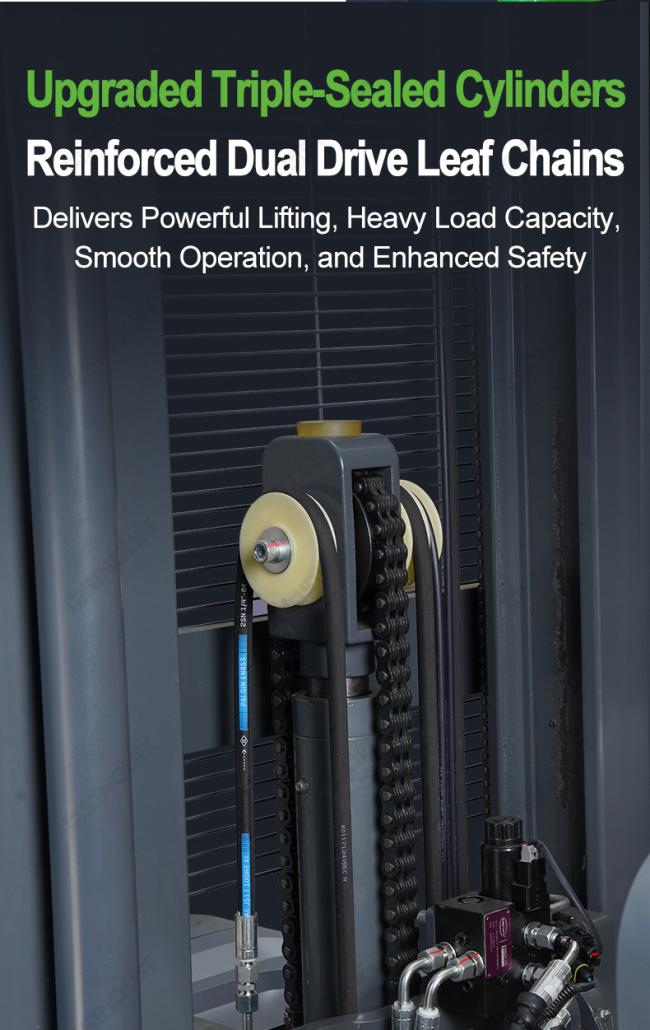

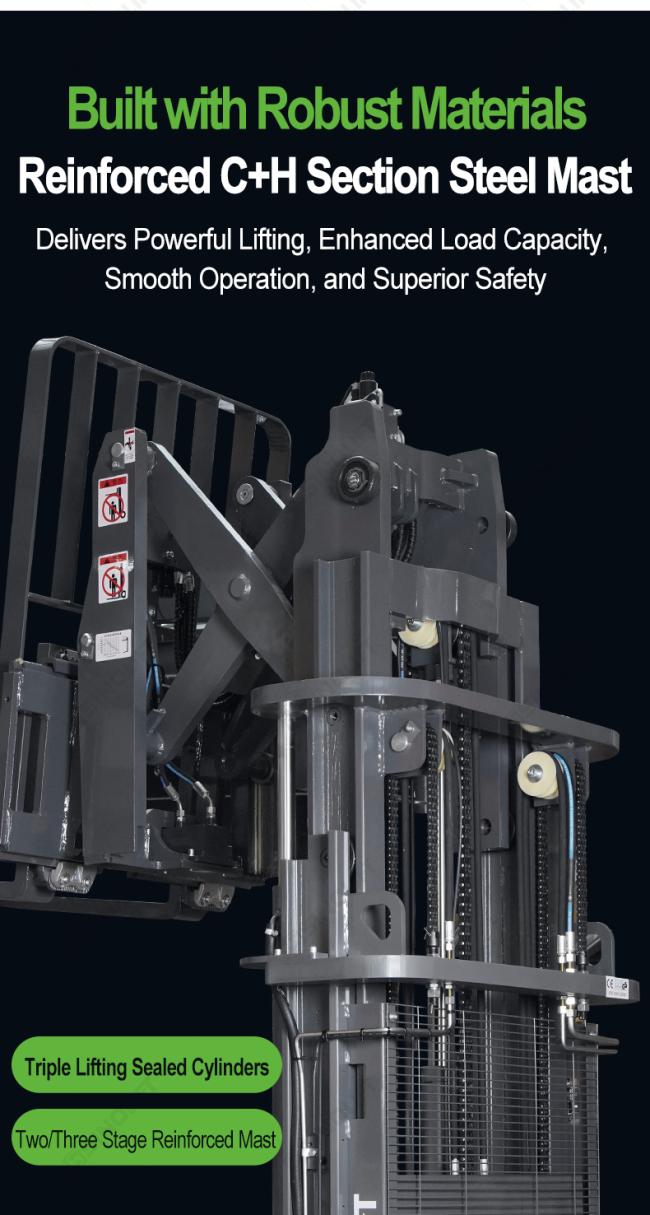

- Robust & Stable Performance: Engineered with a heavy-duty structure, including a reinforced C+H steel mast, triple-sealed cylinders, and reinforced chains, it ensures powerful, smooth, and safe lifting of loads up to 2 tons without deformation.

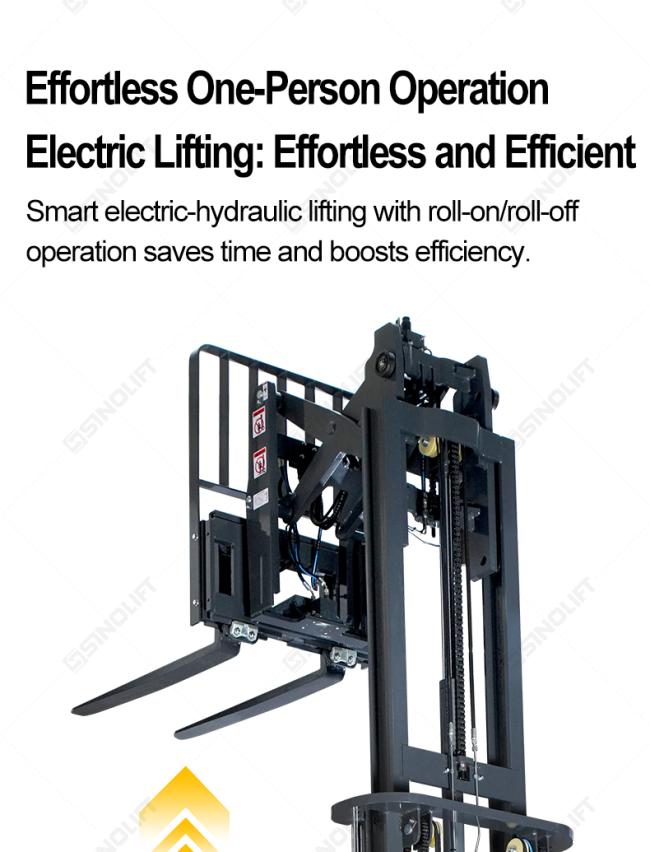

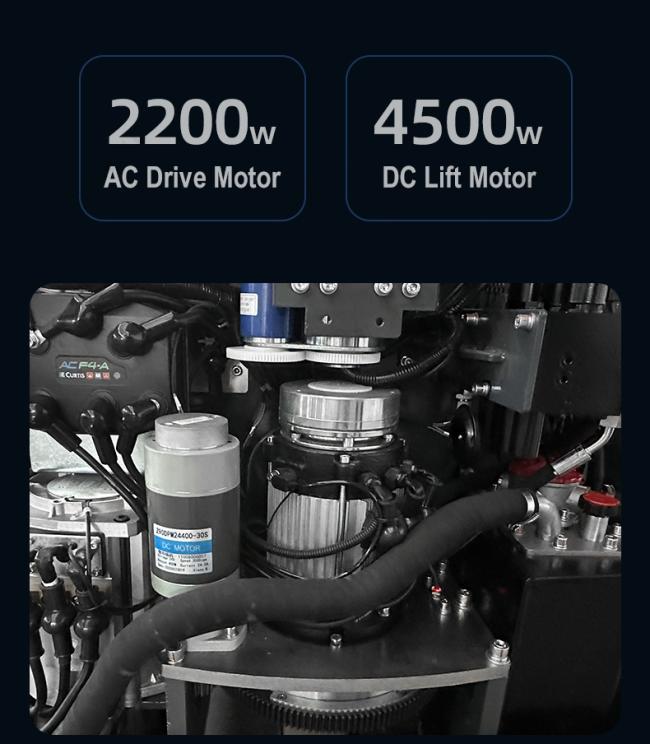

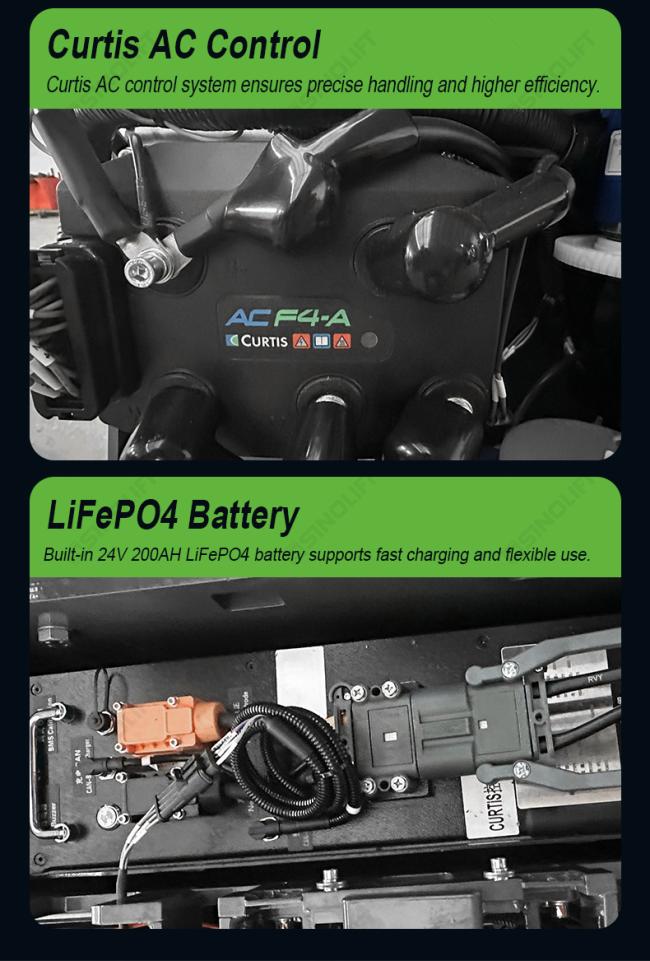

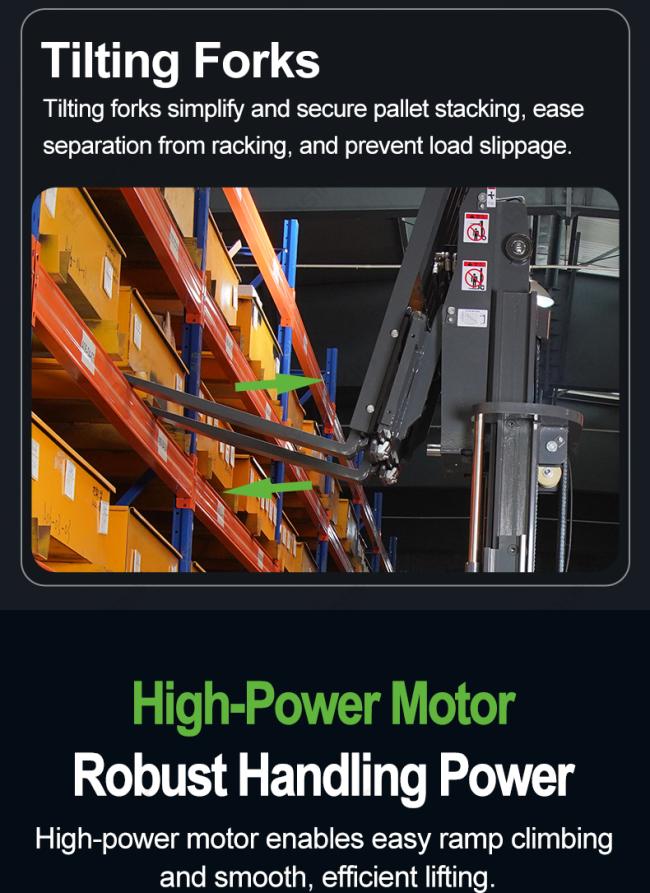

- Advanced Electric Control: The Curtis AC drive system and high-power motors provide responsive, efficient, and longer-lasting power for both travel and lifting, enabling easy ramp climbing and progressive speed control.

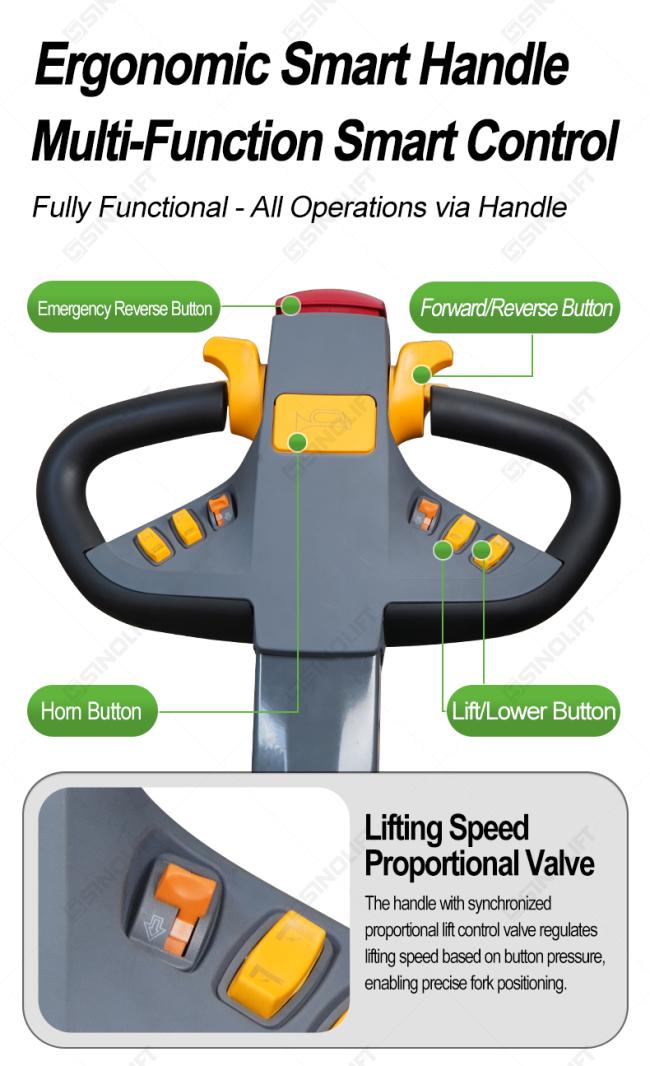

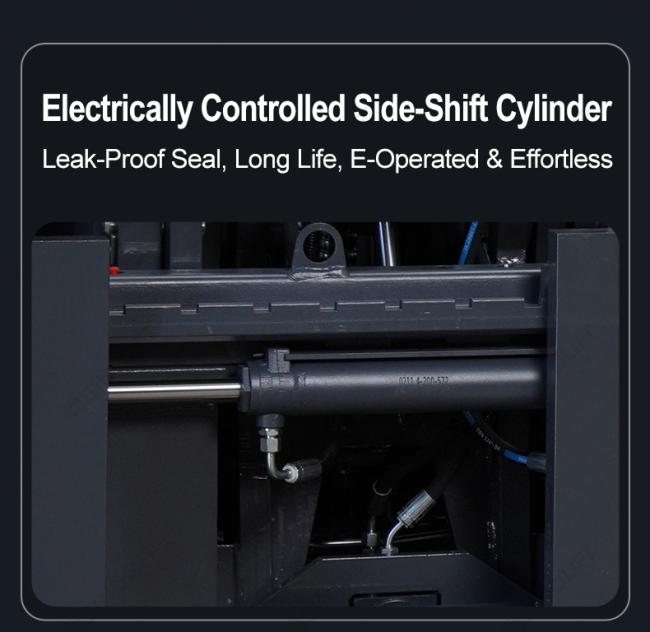

- Operator-Focused Design: An ergonomic smart handle with a proportional control valve allows for precise lifting via thumb pressure. Key functions like side-shift, tilt, and horn are all integrated for effortless, one-person operation.
- Durable & Low-Maintenance: Built with premium components like leak-resistant integrated cylinders, maintenance-free AC motors, and long-lasting polyurethane wheels, it guarantees high uptime and reduced operating costs.

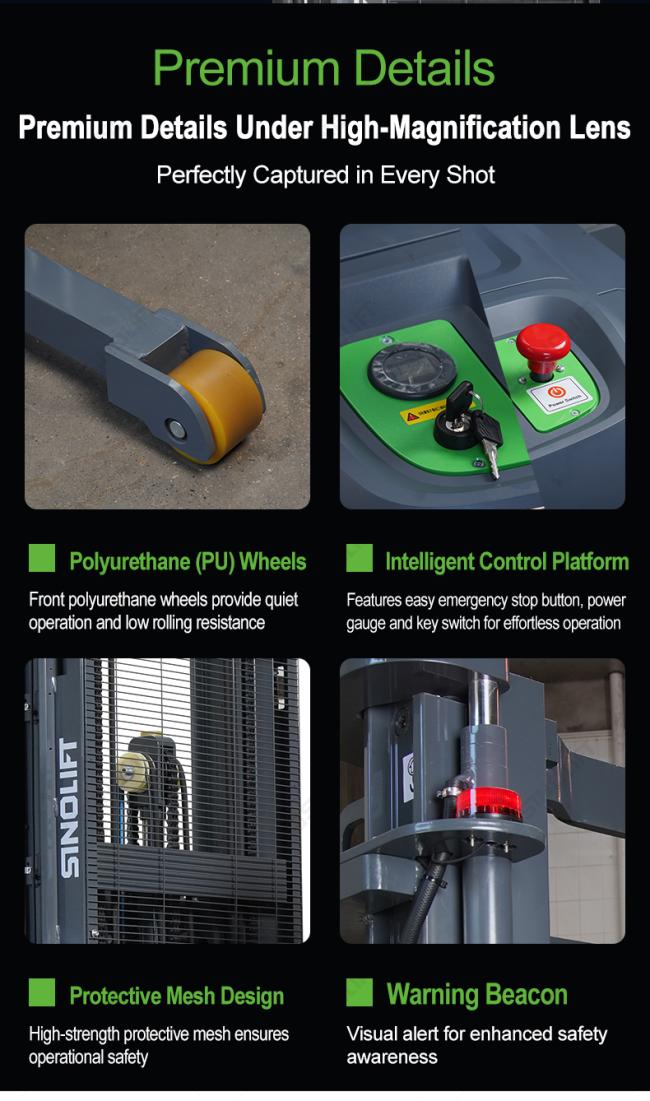

- Enhanced Safety Features: Standard safety elements include an emergency reverse button, a high-strength protective mesh, a warning beacon, and a hydraulic system designed to prevent mast drops in case of pressure loss.
Application Scenarios:
Ideal for maximizing space and efficiency in various material handling environments, including warehouse storage, retail stocking, dock handling, and express cargo logistics.
Product Specifications
| Identification | 1.1 | Manufacturer | SINOLIFT | |||
| 1.2 | Model | CQDX15 | CQDX20 | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of Operation | Walkie | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Load Capacity/Rated Load | Q | kg | 1500 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 500 | 500 | |
| 1.8 | Load Distance, the center of drive axle to fork | x | 160 | 160 | ||
| 1.9 | Wheelbase | y | mm | 1415 | 1415 | |
| Weight | 2.1 | Total Weight (with Battery) | kg | 2065 | 2600 | |
| 2.2 | Axle Load (Laden): Drive side/Load-bearing Side | / | 1 | |||
| 2.3 | Axle Load (Unladen): Drive side/Load-bearing side | kg | / | / | ||
| Tyre | 3.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 3.2 | Tyre Size (Front) | mm | Ø150x100 | Ø150x100 | ||
| 3.3 | Tyre Size (Balance Wheel) | / | / | |||
| 3.4 | Tyre Size (Driving Wheel) | mm | φ248x75 | φ250x70 | ||
| 3.5 | Wheels Quantity, Front/Rear (x=Driving Wheels) | 2/1x | 2/1x | |||
| Dimension | 4.1 | Overall Length | L1 | mm | 2200 | 2140 |
| 4.2 | Overall Length (without Forks) | L4 | mm | 1655 | 1670 | |
| 4.3 | Chassis Length to Face of Forks | L2 | mm | 1130 | 1130 | |
| 4.4 | Lift Height | h3 | mm | 4500 | 4500 | |
| 4.5 | Height with Mast Lowered | h1 | mm | 2090 | 2100 | |
| 4.6 | Height with Mast Extended | h4 | mm | 5695 | 5705 | |
| 4.7 | Free Lift Height | h5 | mm | 1530 | 1520 | |
| 4.8 | Overall Width (Chassis/Straddle Leg) | b1/b2 | mm | 820/1500 | 820/1500 | |

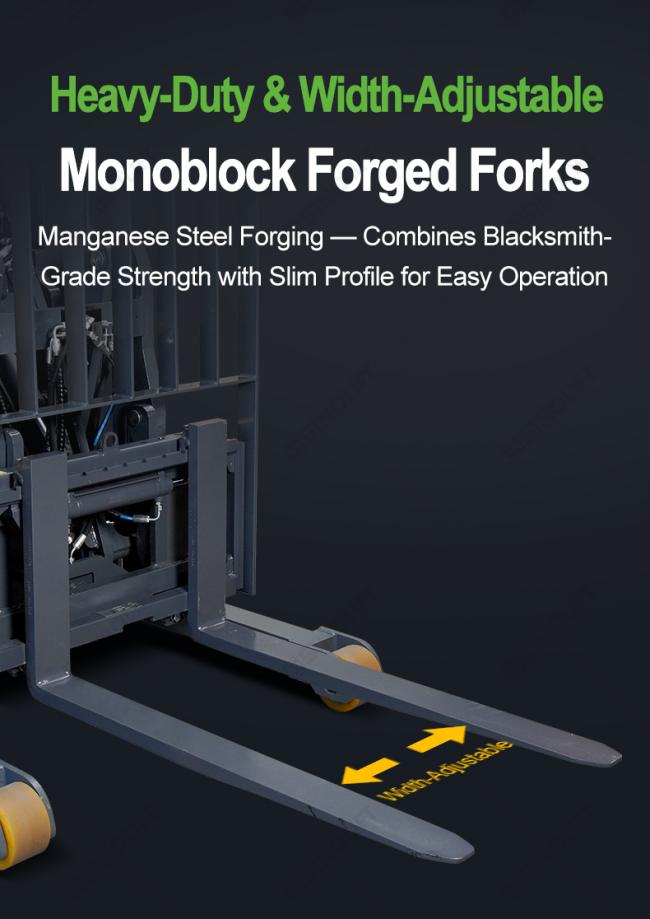

| 4.9 | Fork Dimension | l/e/s | mm | 1070×100×35 | 1070×100×35 | |
| 4.10 | Fork Spread Width | b5 | mm | 220-815 | 220-815 | |
| 4.11 | Fork Mounting Class | 2A | 2A | |||
| 4.12 | Fork Carriage Spread Width | b3 | mm | 835 | 835 | |
| 4.13 | Fork Carriage Tilt (forward/backward) | α/β | ° | 2/5 | 2/5 | |
| 4.14 | Fork Carriage Height | h6 | mm | 1160 | 1160 | |
| 4.15 | Inner Width of Straddle Leg | b4 | mm | 1220 | 1200 | |
| 4.16 | Reach Distance | L3 | mm | 570 | 590 | |
| 4.17 | Height of Fork Carriage | h6 | mm | 1160 | 1160 | |
| 4.18 | Ground Clearance at the Center of Wheelbase (Min.) | m1 | mm | 54 | 56 | |
| 4.19 | Turning Radius (Pedal Retracted/Expanded) | Wa | mm | 1610 | 1460 | |
| 4.20 | Min. Aisle Width (Pallet size 1000*1200) | Ast | mm | 2625 | 2556 | |
| 4.21 | Min. Aisle Width (Pallet size 800*1200) | Ast | mm | 2665 | 2615 | |
| Performance | 5.1 | Traveling Speed (Laden/Unladen) | km/h | 3.9/4 | 3.5/4 | |
| 5.2 | Lifting Speed (Laden/Unladen) | mm/s | 150/200 | 100/200 | ||
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 300/300 | 200/100 | ||
| Pantograph Reaching Speed (Laden/Unladen) | mm/s | 70/60 | 70/60 | |||
| 5.4 | Max. Gradient Performance S2 5min (Laden/Unladen) | % | 6/15 | 6/10 | ||
| 5.5 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating (AC) S2-60min | kw | 1.5 | 2.2 | |
| 6.2 | Lift Motor Rating (DC) S3 15% | kw | 4.5 | 4.5 | ||
| 6.3 | Battery Voltage/Capacity LiFEPO4 | V/Ah | 24/200 | 24/200 | ||
| 6.4 | Battery Weight | kg | 68 | 68 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | AC F4-A | AC F4-A | |||
| 7.3 | Sound Level at Driver's Ear According to EN12053 | dB | 70 | 70 | ||
