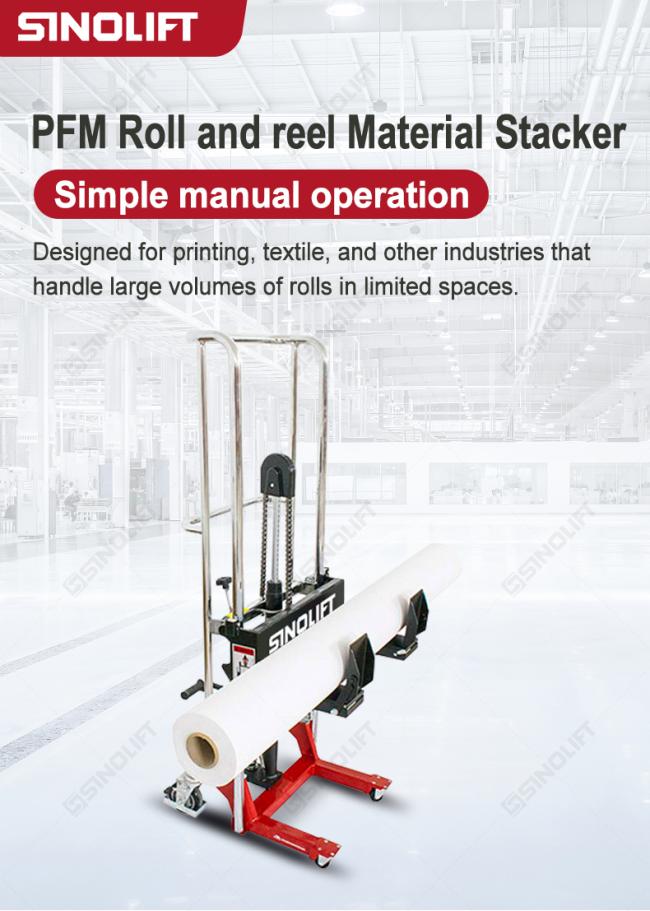

Sinolift PFM roll and reel material stacker - simple manual operation
Product Description:
Sinolift PFM roll and reel material stacker - simple manual operation

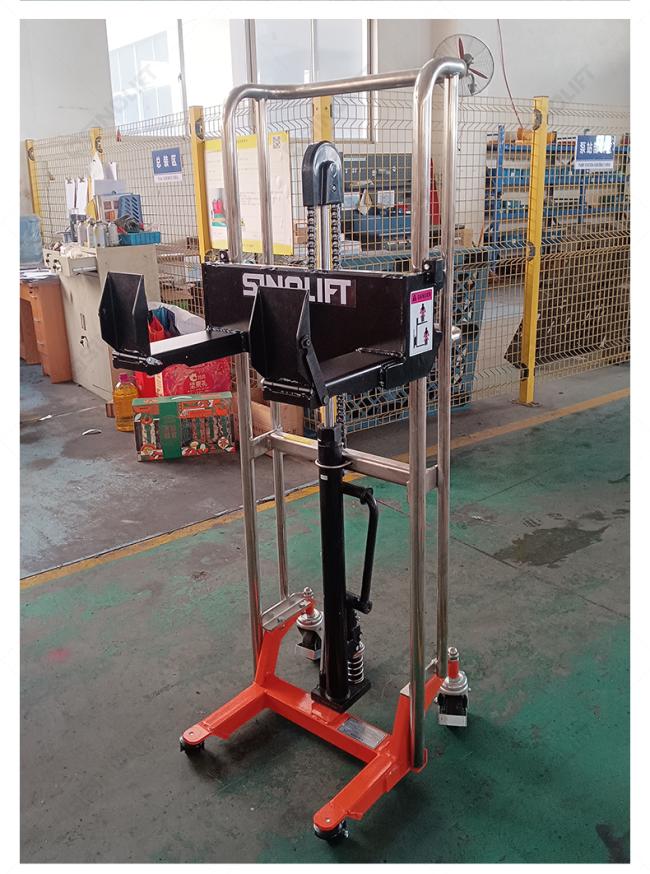

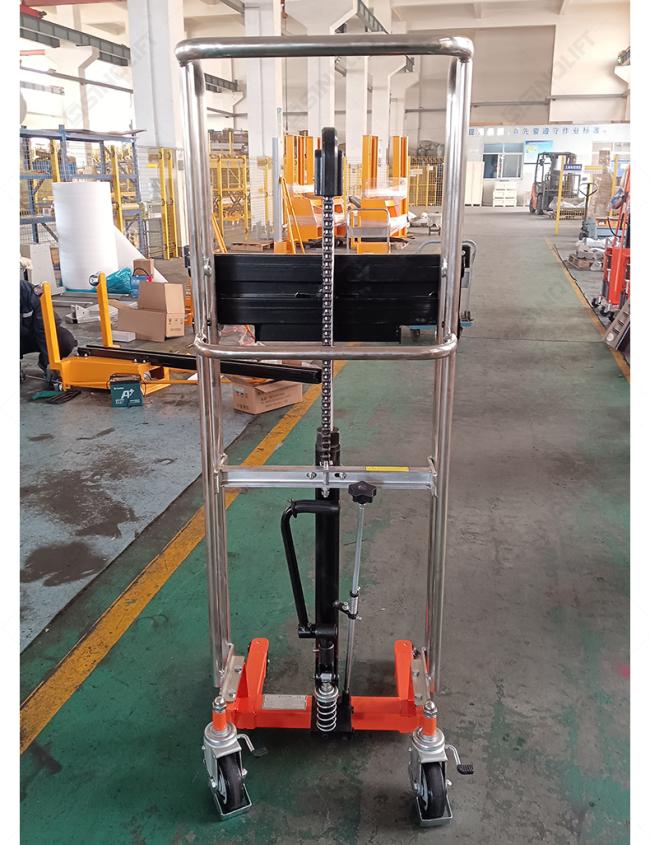

The SINOLIFT PFM Media Lifter is a compact, ergonomic roll lifting solution designed for safely handling and transporting large cylindrical materials such as paper, film, and fabric rolls. Engineered for single-person operation, it enables users to easily load, lift, and position media rolls directly onto printers or production machines with minimal effort.

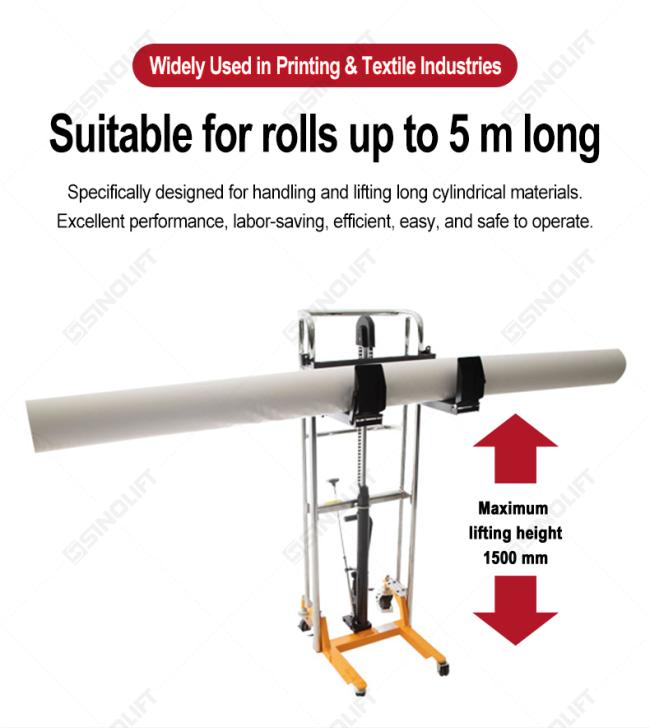

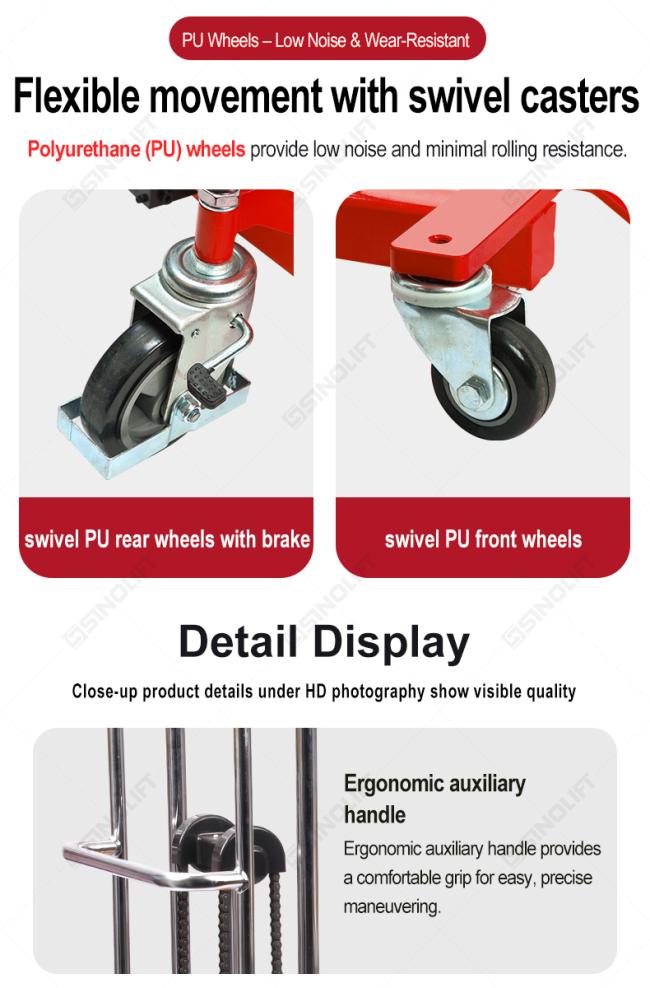

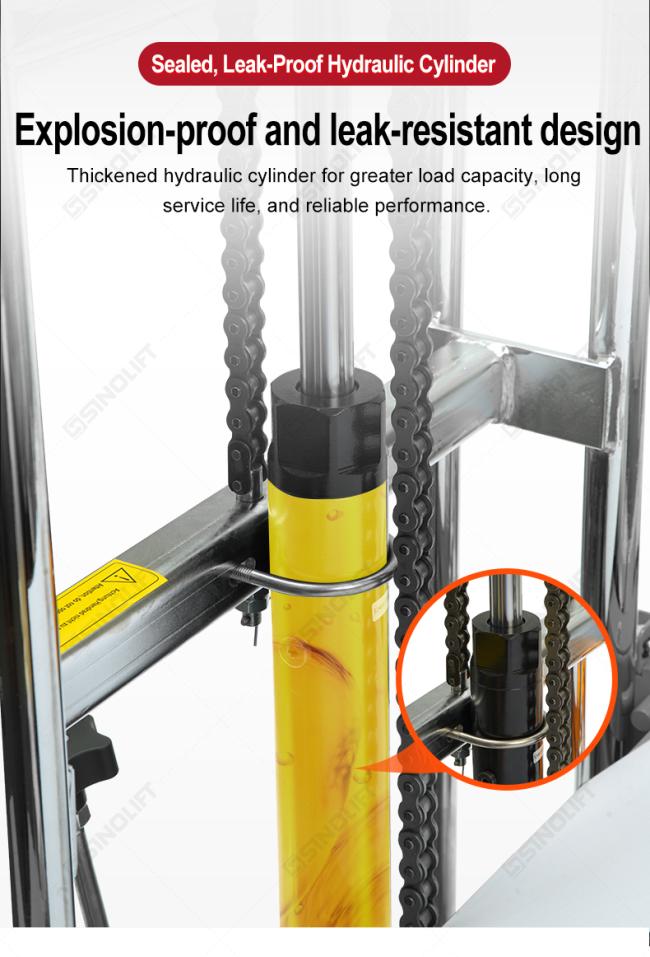

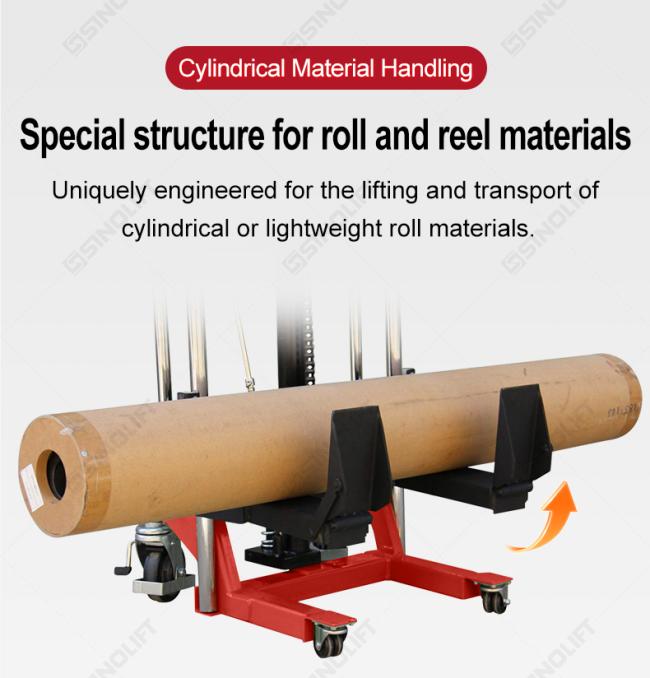

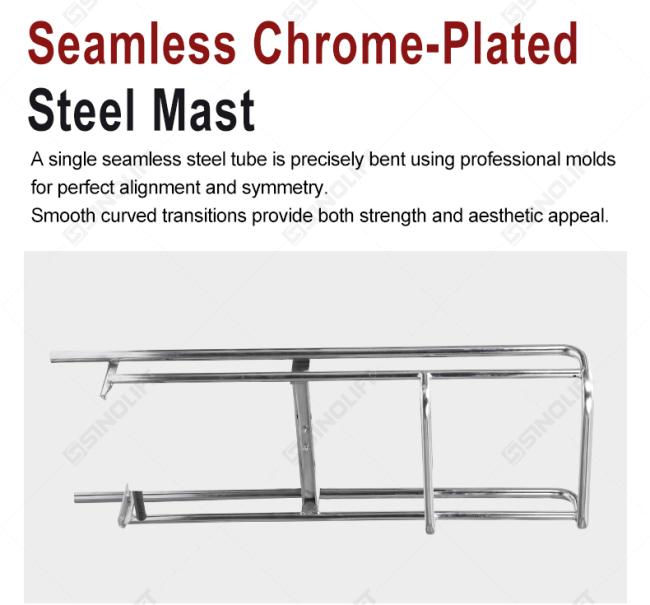

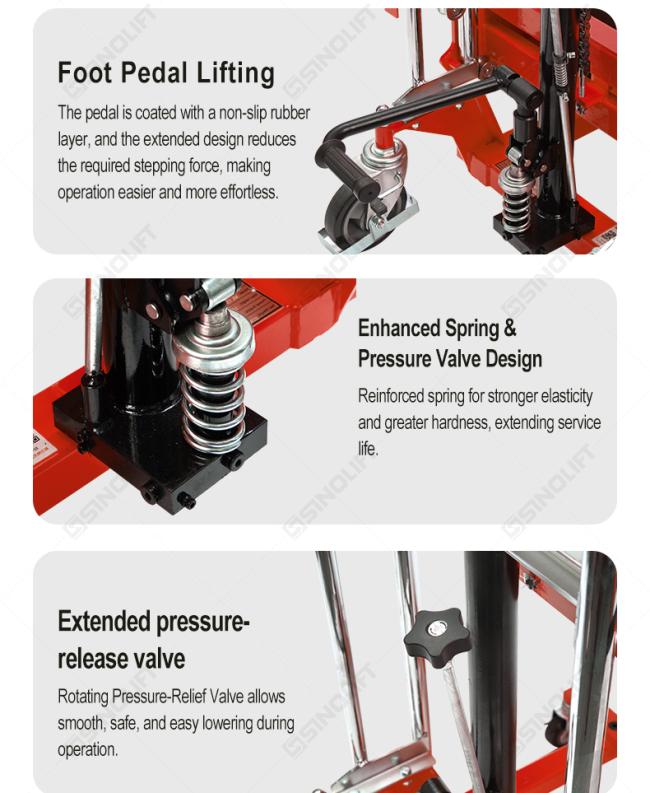

Featuring a durable steel structure, the lifter supports rolls up to 200 kg and 5 meters long. Its foot-pump hydraulic lifting system allows smooth and controlled elevation, while swivel PU casters ensure easy maneuverability through narrow aisles. The grooved cradle tray keeps rolls securely in place during movement, ensuring both safety and precision.

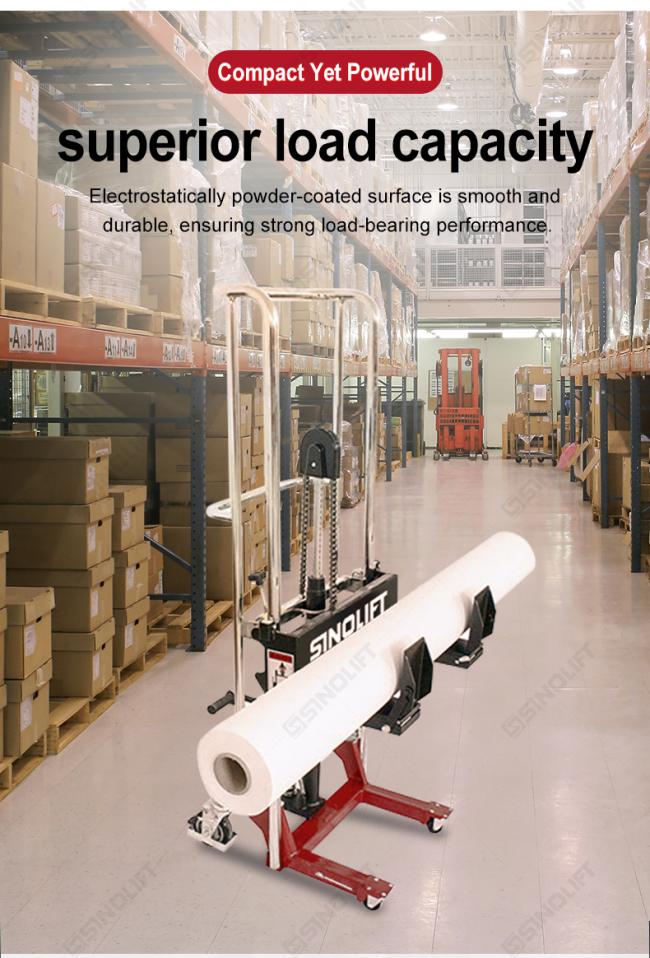

With its stable design, labor-saving operation, and robust build, the PFM Media Lifter is ideal for printing, textile, and packaging industries where efficient and safe roll handling is essential.
Specifications:
| Model | PFM | |
| Vendor Export Code | 61581 | |
| Roll Weight Capacity | kg (lbs) | 200 (440) |
| Lift Height | mm (inch) | 1300 (51") |
| Max. Roll Width | mm (inch) | Ø1800 (71") |
| Max. Roll Diameter | mm (inch) | 305 (12") |
| Overall Media Lifter Dimensions (W x D x H) | mm | 570 x 650 x 1580 |
| inch | 22.5″x 25.5″Dx 63.25″ | |
| Media Lifter Weight | kg (lbs) | 80(175) |
| Bottom Fork Clearance | mm (inch) | 75/3" |
| Front Swivel Casters | mm (inch) | Ø50(2") |
| Rear Swivel Casters | mm (inch) | Ø125(5") |
