L SERIES PRO 5.0-12T Diesel Powered Counter Balanced Forklift with OEM Manufacturer Service
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 DAYS
Brand:
SINOLIFT
Product Description
Product Description:

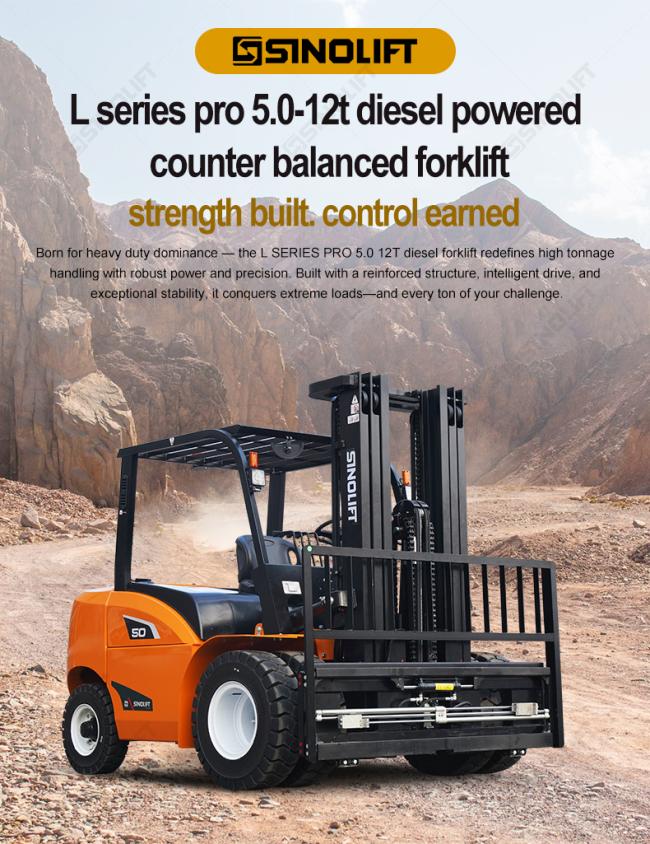

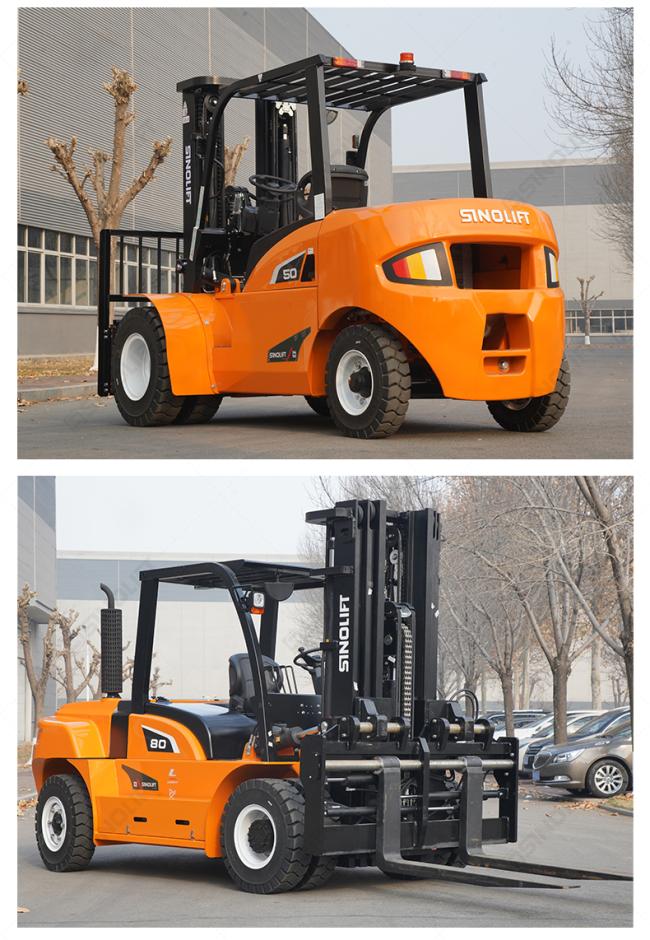

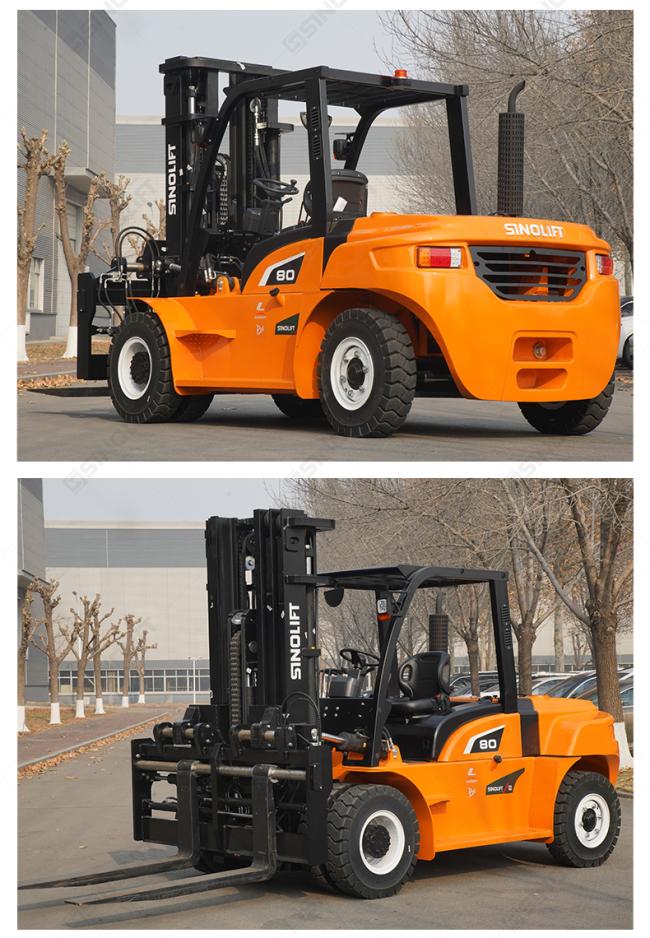

L SERIES PRO 5.0-12T Diesel Powered Counter Balanced Forklift with OEM Manufacturer Service
The L Pro series is the new generation of internal combustion counterbalance forklift trucks developed by SINOLIF, independently adopting the world’s advanced technologies based on original products. Through comprehensive upgrading of appearance modeling, energy conservation, environmental friendliness, comfort, safety, and reliability, it will become a world-class forklift truck that can meet your overall demands.

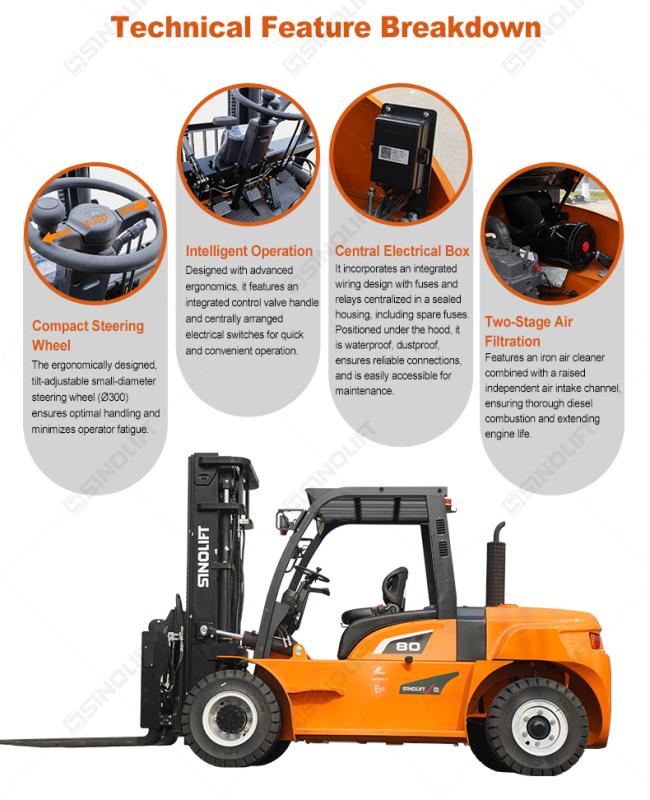

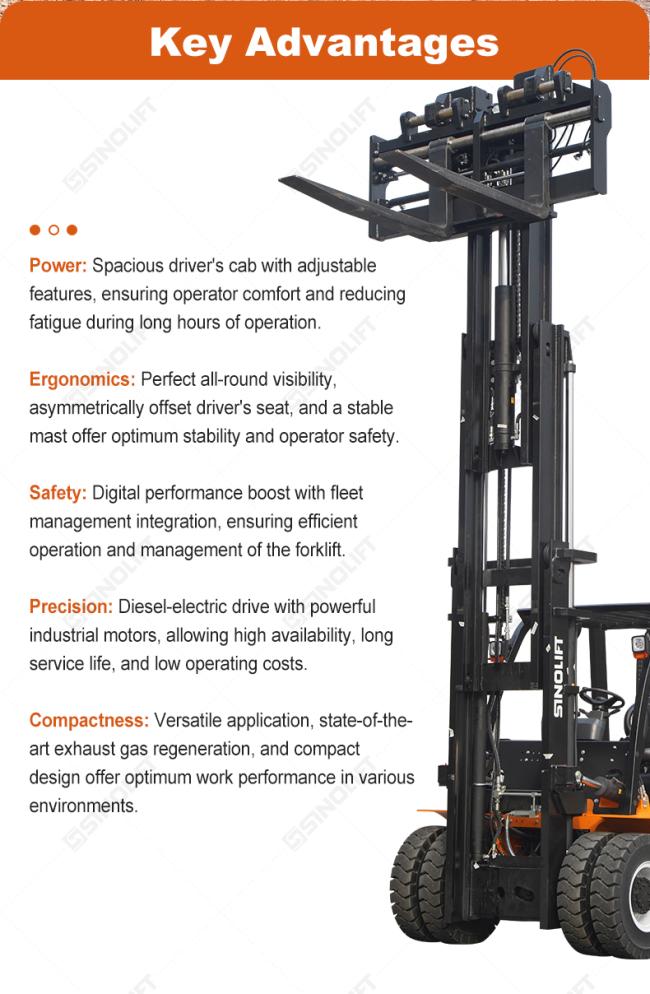

KEY FEATURES:
- Power: Spacious driver’s cab with adjustable features ensures operator comfort and reduces fatigue during long hours of operation.
- Ergonomics: Excellent all-around visibility, asymmetrically offset driver’s seat, and a stable mast deliver optimum stability and operator safety.
- Safety: Digital performance boost with fleetmanagement integration enables efficient operation and organized management of forklift fleets.
- Precision: Dieselelectric drive with powerful industrial motors ensures high availability, long service life, and low operating costs.
- Compactness: Versatile application, advanced exhaustgas regeneration, and a compact design provide optimum work performance in various environments.
Product Specifications:
| General | Manufacture | SINOLIFT | ||||||||||
| Model | CPCD50S L+ | CPCD60 L+ | CPCD70 L+ | CPCD80 L+ | CPCD100 L+ | CPCD120 L+ | ||||||
| Power type | Diesel | |||||||||||
| Rated capacity | Q | (kg) | 5000 | 6000 | 7000 | 8000 | 10000 | 12000 | ||||
| Load center | C | mm | 600 | |||||||||
| Dimensions | Lift height | H | mm | 3000 | ||||||||
| Free lift height | H5 | mm | 190 | 190 | 195 | 190 | 195 | 195 | ||||
| Fork size | LxWxT | mm | 1220×150×60 | 1220×150×60 | 1220×150×65 | 1220×150×70 | 1220×180×75 | 1520×180×88 | ||||
| Mast tilt angle | a/β | (°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | ||||
| Front overhang | L2 | mm | 590 | 590 | 590 | 650 | 740 | 740 | ||||
| Rear overhang | L3 | mm | 640 | 640 | 740 | 740 | 800 | 800 | ||||
| Overall dimensions | Length to face of fork | L' | mm | 3480 | 3480 | 3580 | 3830 | 4340 | 4540 | |||
| Overall width | W | mm | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | ||||
| Height of load backrest | H6 | mm | 1440 | 1440 | 1440 | 1500 | / | / | ||||
| Mast lowered height | H1 | mm | 2500 | 2500 | 2500 | 2560 | 2850 | 2850 | ||||
| Mast extended height | H2 | mm | 4430 | 4430 | 4430 | 4490 | 4325 | 4325 | ||||
| Overhead guard height | H3 | mm | 2450 | 2450 | 2450 | 2510 | 2560 | 2560 | ||||
| Turning radius | r | mm | 3320 | 3320 | 3400 | 3700 | 4100 | 4300 | ||||
| Performance | No load/full load | Travel speed | km/h | 25/30 | 25/30 | 25/30 | 25/30 | 25/30 | 22/28 | |||
| Lift speed | mm/sec | 540/570 | 540/570 | 540/570 | 442/484 | 350/390 | 300/380 | |||||
| Lowering speed | mm/sec | 450/360 | 450/360 | 450/360 | 400/360 | 370/350 | 390/350 | |||||
| Max. gradeability (full load /no load) | % | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 | |||||
| Max. drawbar pull | KN | 70 | 70 | 70 | 70 | 70 | 70 | |||||
| Self weight | kg | 8330 | 8800 | 9550 | 9900 | 13100 | 13900 | |||||
| Wheel & Tire | Tires | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | ||||
| Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | ||||||
| Tread | Front | W1 | mm | 1470 | 1470 | 1470 | 1470 | 1600 | 1600 | |||
| Rear | W2 | mm | 1710 | 1710 | 1710 | 1710 | 1725 | 1725 | ||||
| Wheelbase | L | mm | 2250 | 2250 | 2250 | 2500 | 2800 | 3000 | ||||
| Min.ground clearance | mm | 200 | 200 | 200 | 260 | 250 | 250 | |||||
| Drive units & control | Battery | V/AH | 24/100 | 24/100 | 24/100 | 24/100 | 24/100 | 24/100 | ||||

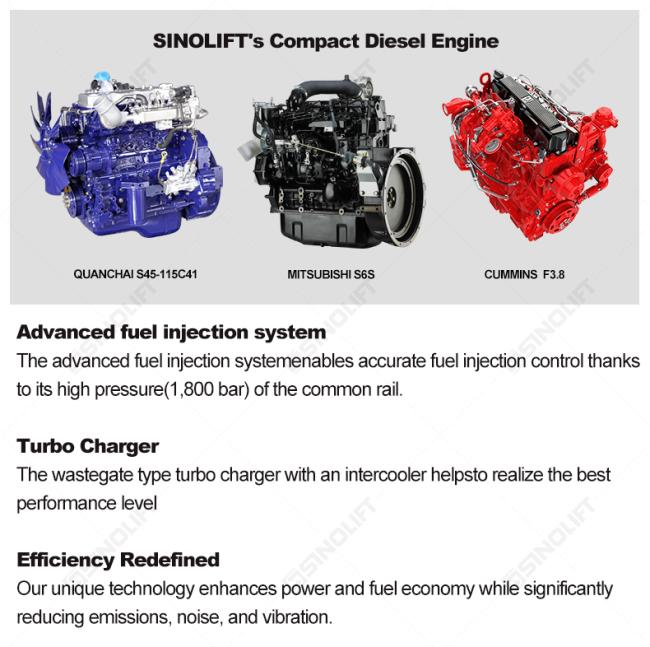

| Engine | Model | Quanchai S45-115C41 | Quanchai 4J1-115C32 | Xichai CA4DF3-12GCG3U | Xichai CA6110 | Isuzu 6BG10C-02 | Yuchai YCA05115-T480 | |||||
| Rated output | kW/rpm | 85/2200 | 85/2200 | 85/2200 | 85/2000 | 82.4/2000 | 85/2200 | |||||
| Rated torque | N.m/rpm | 500/1600 | 500/1320-1650 | 460/1300-1700 | 450/1400~1500 | 416.8/1500 | 500/1400-1600 | |||||
| No.of cylinder | 4 | 4 | 4 | 4 | 6 | 4 | ||||||
| Bore×stroke | mm | 105x124 | 93x120 | 110x125 | 110x125 | 105x125 | 105x118 | |||||
| Displacement | cc | 4290 | 4300 | 4750 | 7127 | 6494 | 4837 | |||||
| Emission Standard | China Stage IV | China Stage III | China Stage III | China Stage II | China Stage II | China Stage IV | ||||||
| Transmissions | Type | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | |||||
| Hydraulic System Working Pressure | MPa | 19 | 19 | 19 | 19 | 19 | 19 | |||||
