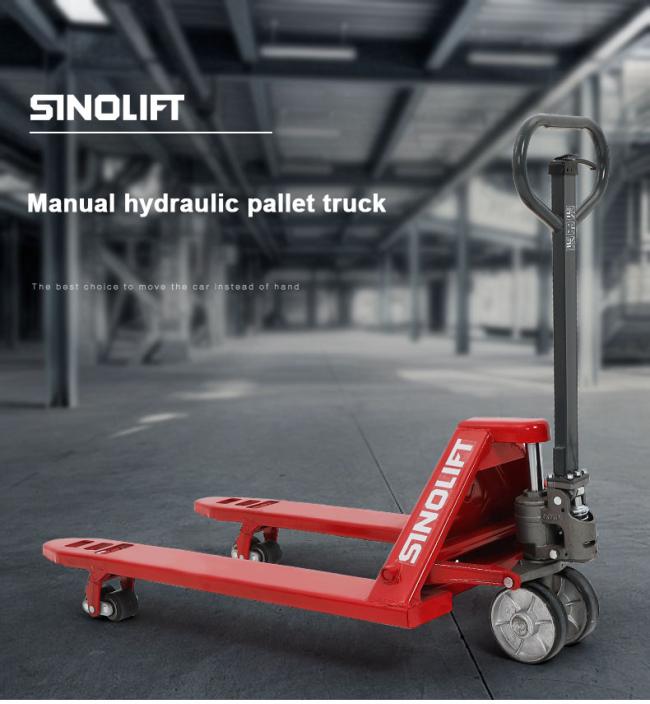

Sinolift NA Standard premium hand manual pallet truck
Price:
Negotiable
MOQ:
1
Delivery Time:
15 days
Brand:
sinolift
Product Description
Simple and Easy Operation
Lifting movement via collapsible foot pedal
Sensitive lowering through sinking valve
Hand push drive
Overload protection via a pressure valve
Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium-plated ram.
Effortless Movement.
Ball-bearing rollers.
Polyurethane rollers.

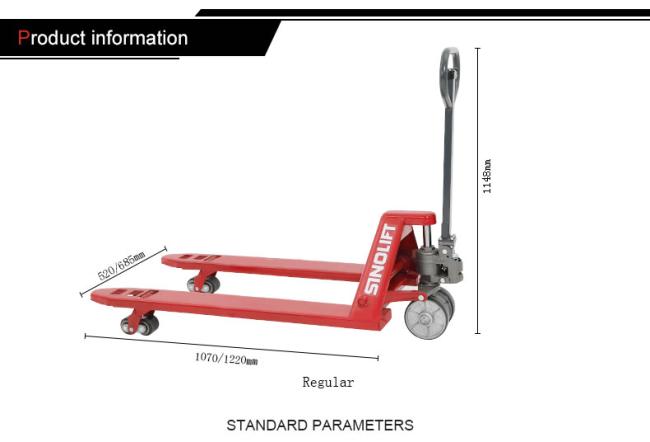

| Body type | Maximum load | Fork width W1 | Fork length L1 | Minimum fork height H2 | Maximum fork height H1 | wheel | Self-weight | |
| (kg) | (mm) | (mm) | (mm) | (mm) | rear wheel | Front wheel | mm | |
| NA10-510 | 1000 | 520 | 1070 | 80 | 200 | Ø180×50 | Ø78×70 | 72 |
| NA10-712 | 685 | 1220 | 78 | |||||
| NA15-48 | 460 | 810 | 68 | |||||
| NA15-49 | 460 | 980 | 71 | |||||
| NA15-58 | 520 | 810 | 68 | |||||
| NA15-59 | 1500 | 520 | 980 | 80 | 200 | Ø180×50 | Ø78×100 | 71 |
| NA15-510 | 520 | 1070 | 72 | |||||
| NA15-511 | 520 | 1150 | 73 | |||||
| NA15-610 | 600 | 1070 | 77 | |||||
| NA15-710 | 685 | 1070 | 76 | |||||
| NA15-712 | 685 | 1220 | 78 | |||||
| NA25-58 | 520 | 810 | 69 | |||||
| NA25-59 | 2500 | 520 | 980 | 80 | 200 | Ø180×50 | Ø78×100 | 72 |
| NA25-510 | 520 | 1070 | 73 | |||||
| NA25-712 | 685 | 1220 | 80 | |||||
| NA30-510 | 3000 | 520 | 1070 | 80 | 200 | Ø180×50 | Ø78×70 | 83 |
| NA30-712 | 685 | 1220 | 91 | |||||
