Summarry
U screw conveyor is bulk material handling equipment, it provides enclosed transfer while moving materials horizontally or at an angle,it can deliver materials from one or more inlet points to one or more discharge points. Screw conveyors can be operated with the flow of material inclined upward. When space allows, this is a very economical method of elevating and conveying. As the angle of inclination increases, the capacity of a given unit rapidly decreases.
Application
U screw conveyor is widely used in chemical, metallurgy, paper making, and construction industries. The equipment is suitable for field flowing work, such as concrete mixing station, bulk material transit storage and etc.

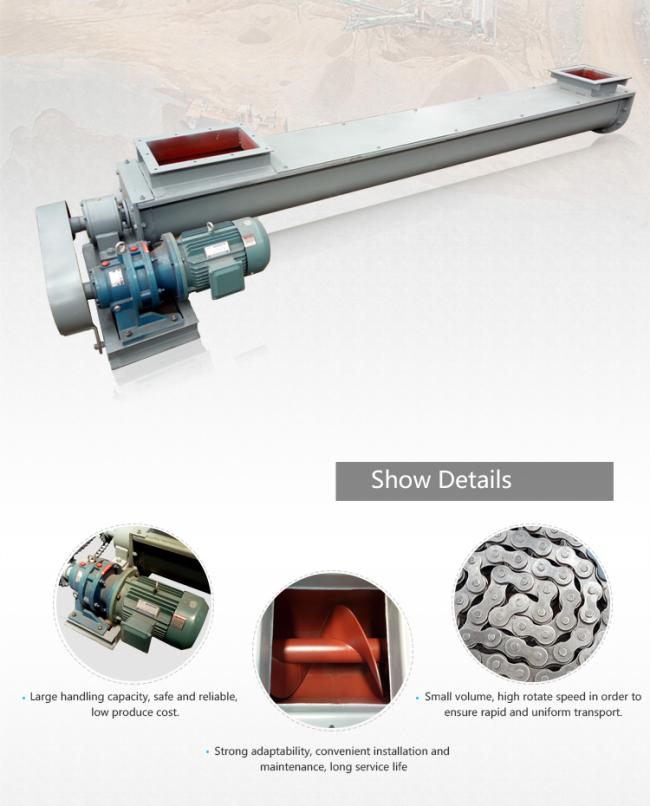

Advantages and Features
1. Large handling capacity, safe and reliable, low produce cost.
2. Strong adaptability, convenient installation and maintenance, long service life
3. Small volume, high rotate speed in order to ensure rapid and uniform transport.
4.The conveying length is up to 70m,Working temperature is -20~50℃, with material temperature below 200℃.
Technical parameter
| Model | LS315 | LS400 | LS630 | LS800 |
|
Screw Diameter (mm) |
315 | 400 | 630 | 800 |
|
Pitch (mm) |
315 | 355 | 450 | 500 |
|
Rotate speed (r/min) |
40-80 | 36-71 | 25-50 | 20-40 |
|
Handling capacity (m³/h) |
16-34 | 34-64 | 80-145 | 110-208 |
Selection Conditions
| Material to be processed: _____ | Working environment is indoor or outdoor:________ |
| Handling capacity: ________per hour | Working environment temperature: _______ ℃ |
| Bulk Density: _____t/m3 | Installation form is horizontal or inclined : ________ |
| Conveying distance: ________ | If it is inclined,what is the inclined degree_____° |
| Material size:____mm | Water content:____% |
| Material temperature: _______ ℃ | Working power supply: _____V ______HZ ______PH |
