Space Saving Reversible Belt Conveyor Trough Type Carrier Roller Long Durability
Walking Wheel Hollow Shaft Motor Reducer Reversible Belt Conveyor With Trough Type Carrier Roller
1. A stationary inlet: the stationary feed chute allows for processed material to be directed to one central location.
Reversible belt direction: there is no restriction as to which end of the conveyor the material can discharge from, thus this style is ideal for filling multiple hoppers or storage bins.
2. Remote/automation: Reversing shuttle conveyors can be controlled from a remote control room, or automatically through an preset program.r technology progress is to develop basic research into practical technology, and then realize commercialization and put into specific production.
Use and characteristics

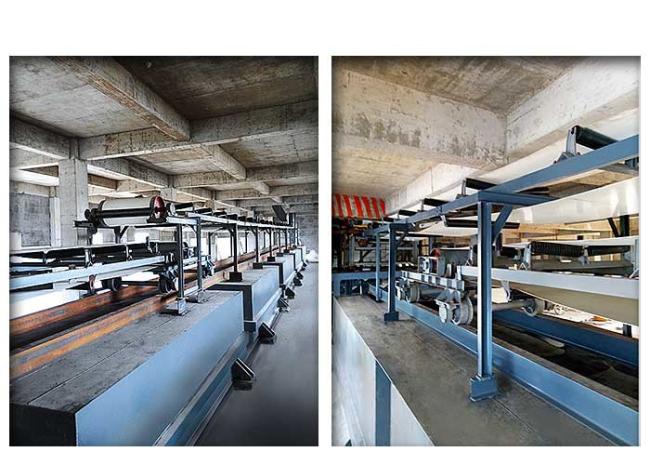

The use effect of reversible bin distribution belt conveyor is the same as that of unloading trolley machine, which is under the belt conveyor,
The bin is used for cloth. The walking device of reversible bin distribution belt conveyor and the belt conveyor itself are two uniqueSystem. When using, pay attention to the selection of traveling device speed. Usually, the belt speed depends on the amount of cloth Size to choose, as for the components of reversible bin, basically the same as the belt conveyor.Reversible mobile belt conveyor is widely used in metallurgy, electric power, coal and other industries because of its positive and negative head and tail unloading, and the characteristics of longitudinal mobile continuous unloading, which can maximize the volume of silo or storage yard
Walking device
1. The unloading point can be moved to realize long-distance continuous multi-point unloading.
2. Two way operation realizes two-way unloading.
3. The height of the whole machine is reduced, which is suitable for the occasion where the unloading truck cannot be used.
4. The occupied space is small, which reduces the cost of civil engineering
| Bmm | Dmm | Hmm | Smm | Amm | Emm | Cmm | Pmm | Rmm | emm |
| 500 | 500 | 900 | 900 | 700 | 776 | 1300 | 1565 | 1700 | 1400 |
| 650 | 1060 | 850 | 926 | ||||||
| 800 | 1000 | 1440 | 1140 | 1126 | 1565 | ||||
| 1000 | 630 | 1640 | 1360 | 1360 | 1400 | 1718 | 1400 | ||
| 1200 | 1100 | 1850 | 1600 | 1610 | 1520 | 1800 | 1970 | ||
| 1400 | 800 | 1150 | 2050 | 1800 | 1810 | 1400 | 1697 | 2200 | 1520 |
