Smooth Running Conveyor Support Roller Used To Support Belt

Price Negotiable
Price: negotiate
MOQ: 20 SET
Delivery Time: 10-15 working days
Brand: JINRUI
Product Description

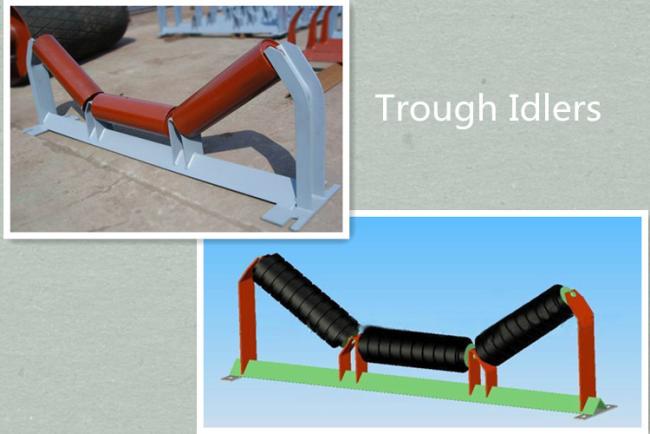

Smooth Running Conveyor Support Roller Used To Support Belt

1. Main function of Conveyor Support Roller

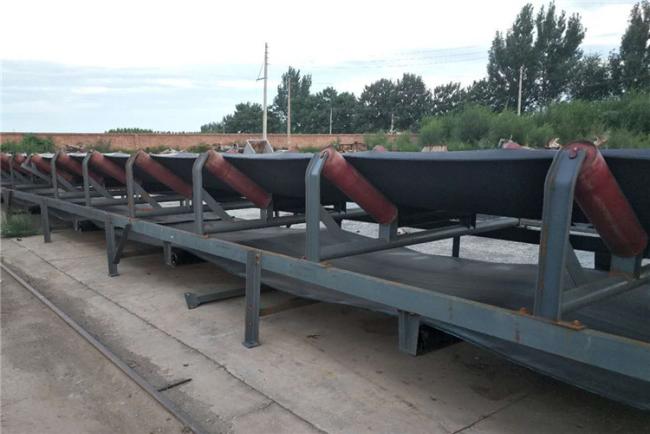

The support roller is used to support the conveyor belt and the material carried on the conveyor belt, which can effectively ensure the stable operation of the conveyor belt.
   Tech data of Conveyor Support Roller
No. Part Description
1 Tube Steel(Q235), Stainless Steel
2 Shaft Uncoated steel(C45 steel), stainless steel
3 Bearing housing Stamping(Steel)
4 Bearing Precision ball bearing,2RZ,C3
5 Seal Labyrinth Seal (Nylon)
6 Disc Rubber Disc
2. Product characteristics of Conveyor Support Roller

The main characteristics of the rollers:

2.1,Excellent mechanical properties: high impact strength, good toughness, no damage to the 3m drop of the rollers.

2.2,Good sealing: waterproof, dustproof, bearing grease does not leak.

2.3,Good corrosion resistance: acid, alkali, salt corrosion resistance, 2-3 times stronger than traditional materials.

2.4,Wide range of applicable temperature: stable operation in -30~125℃.

2.5,Antistatic and flame retardant: good antistatic and flame retardant properties.

2.6, high wear resistance: small friction coefficient, good wear resistance, no damage to the belt, can improve the belt life 1-2 times.

2.7,Non-sticky material: smooth surface and non-sticky material.

2.8,Low running resistance: the material and structure are reasonably designed, and the special bearing for rollers is adopted, and the rotating resistance is 1.2-1.5N.

2.9,Low noise: under the same condition, the noise is reduced by 50% compared with the rollers of other materials.

2.10,Light quality: 1/5 of steel rollers, easy to install and maintain, low labor intensity.

2.11,Energy saving, environmental protection, high operating efficiency: When the whole conveyor is equipped with new composite material rollers, the motor configuration power can be reduced, and the comprehensive energy saving is more than 30%.


3. More attention of Conveyor Support Roller :
  3.1. During the installation, pay attention to the assembly dimensions of all parts of the fuselage and keep the straightness of the whole machine.
   3.2. Tighten bolts when installing bolt fasteners.
  3.3. The center line of the belt at both ends shall be aligned when making the belt joint to prevent the belt from running off.
  3.4  When installing the protection part of the electric appliance, be careful to prevent damage.

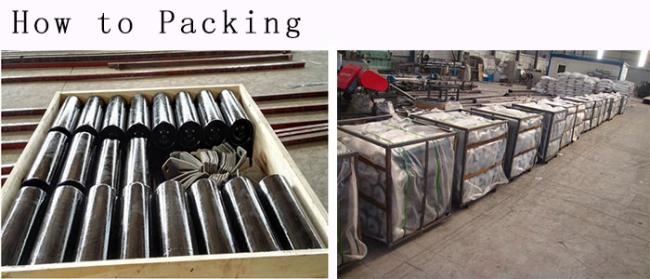

4. Packing Details of Conveyor Support Roller:
4.1 Outer packing is plywood case, which is up to the international standards.
4.2, Inner packing is Moisture-proof and water-proof membrane.
4.3, All of package are wrapped by 0.5mm steel belt to further strengthen.
