Rubber Material Buffer Roller Conveyor Spare Parts Trough Model 108mm Diamater
Rubber Material Buffer Roller Conveyor Spare Parts Trough Model 108mm Diamater
| Belt width(mm) | Roller | Bearing NO. | |
| 800 | D | L | |
| 1000 | 89 | 315 | 204,205 |
| 1200 | 108 | 380 | 204,205,305 |
| 1400 | 133 | 465 | 205,305,206,306 |
| 1600 | 133 | 530 | 205,305,206,306 |
| 1800 | 159 | 600 | 205,306,307,308,309 |
| 2000 | 159 | 670 | 207,309,308 |
| 2200 | 194 | 800 | 207,307,308,309 |
| 2400 | 194 | 900 | 206,307,308,309 |
1. Advantages and Features

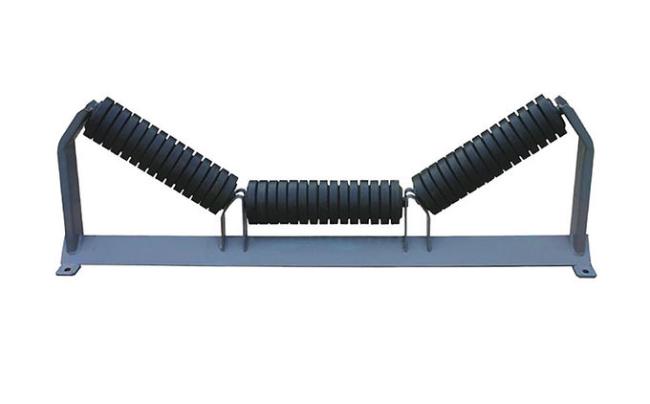

The buffer roller is used for the belt conveyor to reduce the impact of the falling material on the conveyor belt. It is mainly developed for the corrosive environment of coal washing plants, coking plants, and chemical plants. Its inherent toughness is ordinary It is more than 10 times that of metal, and has a life span of five times that of traditional pillar shoes. It is corrosion-resistant, flame-retardant, anti-static, and light in weight. It is widely used in mining. The special polymer material for the roller body has mechanical properties similar to bronze, has good wear resistance, and has good self-lubricating properties, and does not damage the belt. The buffer roller has superior anti-corrosion performance. The roller body and the seal are made of polymer materials, which are corrosion resistant. Used in corrosive occasions, the service life can reach more than 5 times that of ordinary rollers.
2. Main function and scope of application
The buffer roller is light in weight and has low rotational inertia. The special polymer material for rollers is light in weight, and its specific gravity is one-seventh of steel. The weight of rollers made of this material is about one-half of ordinary rollers, with low rotational inertia, between the rollers and the belt. The friction is small. The buffer roller is installed below the receiving section of the conveyor to reduce the impact of the material on the conveyor belt during material blanking, so as to extend the service life of the conveyor belt. The spacing of the buffer rollers is generally 100-600 mm.
