650mm Belt Conveyor Partrs 89mm Diamater Size 240mm Length Conveyor Rollers

Price Negotiable
Price: negotiate
MOQ: 20 SET
Delivery Time: 10-15 working days
Brand: JINRUI
Product Description

650mm Belt Conveyor Partrs 89mm Diamater Size 240mm Length Conveyor Rollers



1.Advantages and Features

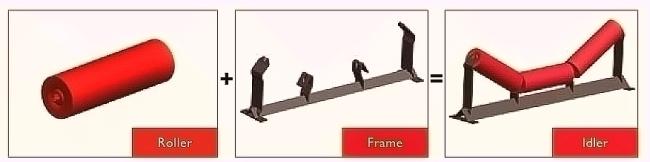

Reduce operating noise. Because the rollers are connected flexibly, the relative changes in the position of each parallel roller in the roller group can absorb and eliminate vibration and impact, so that the operation becomes stable. The buffer roller is installed in the conveyor. The receiving part of the machine is used to protect the heat-resistant conveyor belt products. Each roller of it is made of elastic discs equipped with a certain interval. The rated load parameters are the same as the national standard requirements. It is used in the transportation of heavy and bulk materials. Under the circumstances, the requirements for on-site use can be fully satisfied. It is convenient to replace the idler. If one idler is damaged, the idler set can be out of contact with the conveyor belt under the condition of uninterrupted transportation, which is convenient for replacement at any time. If a rigid fixed roller is used, the machine must be stopped when replacing the roller, which will cause inconvenience





2. Main function and scope of application

There are many types of trough rollers, which are widely used in open-air dusty and corrosive environments, such as power plants, steel plants, cement plants, salt plants, fertilizer plants, docks, etc.


3. More attention:
  3.1. During the installation, pay attention to the assembly dimensions of all parts of the fuselage and keep the straightness of the whole machine.
   3.2. Tighten bolts when installing bolt fasteners.
  3.3. The center line of the belt at both ends shall be aligned when making the belt joint to prevent the belt from running off.
  3.4  When installing the protection part of the electric appliance, be careful to prevent damage.

4. Packing Details:
4.1, Outer packing is plywood case, which is up to the international standards.
4.2, Inner packing is Moisture-proof and water-proof membrane.

4.3, All of package are wrapped by 0.5mm steel belt to further strengthen.

5. Maintenance and repair
5.1 under normal conditions, the conveyor is required to start without load and avoid short-time starting.
5.2 it is necessary to check whether there is oil leakage in the reducer regularly, and whether the regular oil filling volume is in conformity with the construction in time
Correct and supplement.
5.3 if there is squeal at the driving drum, it means that the belt is slipping. Check whether the belt is tensioned.
5.4 the belt joint shall be inspected frequently, and the damaged parts shall be cut and redone in time, and the damaged parts shall be protected during redoing

6.Tech data
No. Part Description
1 Tube Steel(Q235), Stainless Steel
2 Shaft Uncoated steel(C45 steel), stainless steel
3 Bearing housing Stamping(Steel)
4 Bearing Precision ball bearing,2RZ,C3
5 Seal Labyrinth Seal (Nylon)
6 Disc Rubber Disc
