Pulley Drive Sidewall Belt Conveyor
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
12-15 work days
Brand:
JinRui
Product Description
Motorized Pulley Drive Sidewall Belt Conveyor Smooth Running Small Footprint With Carrier Idler
Advantages And Features
Adopt corrugated flang belt, the max angle can be 90 degree, save place;Simple structure and easy maintenanceSidewall belt conveyor have two horizontal parts , can connect with other machine easily; No spillage at the steep angle when transfer bulk material.
Application
Sidewall belt conveyor can be used in coal, chemical industry, building materials, metallurgy, electric power, light industry, port, shipping and other industries, in the working environment that the humidity is -15 degree to +40 degree, transport a variety of bulk materials which density is 0.5-2.5t/m3.

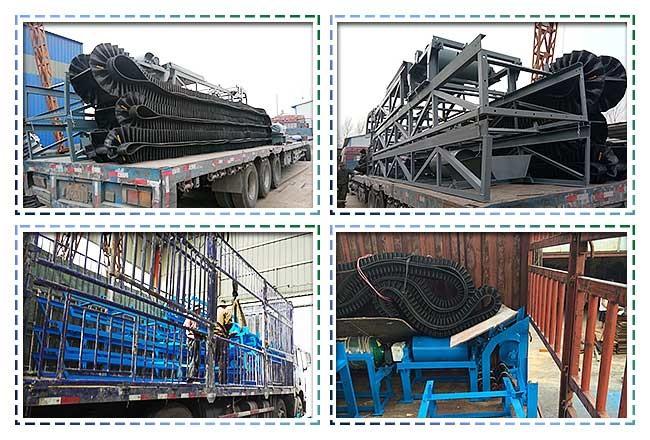

Sidewall belt conveyor is continuous transporting equipment for loose bulk materials such as coke, coal, limestone, sand and gravel. It adopts high quality conveyor belt with corrugated sidewall and horizontal baffle. Sidewall belts are used to convey material up inclines. The sidewall increases the carrying capacity of the belt and prevents product from falling off the edges of the belt. Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt. Greater adhesion also prevents the sidewall from lifting and separating from the base belt, extending the belt life.
Technical parameters for reference
Remarks: the below capacity is based on coal and speed 1m/s to caculated for reference.
|
Bandwidth
|
800mm
|
||||||||
|
Cleats hight
|
120mm
|
160mm
|
200mm
|
||||||
|
Pitch of cleats
|
126mm
|
252mm
|
378mm
|
252mm
|
378mm
|
252mm
|
378mm
|
504mm
|
|
|
Slop
|
30 degree
|
-
|
99 t/h
|
65t/h
|
136 t/h
|
94 t/h
|
-
|
148 t/h
|
113 t/h
|
|
40 degree
|
-
|
76 t/h
|
50t/h
|
110 t/h
|
72 t/h
|
-
|
114 t/h
|
87 t/h
|
|
|
50 degree
|
113 t/h
|
60 t/h
|
-
|
88 t/h
|
58 t/h
|
139 t/h
|
91 t/h
|
-
|
|
|
60 degree
|
95 t/h
|
49 t/h
|
-
|
72 t/h
|
47 t/h
|
113 t/h
|
74 t/h
|
-
|
|
|
70 degree
|
77 t/h
|
40 t/h
|
-
|
58 t/h
|
38 t/h
|
92 t/h
|
61 t/h
|
-
|
|
|
90 degree
|
47 t/h
|
-
|
-
|
36 t/h
|
-
|
57 t/h
|
37 t/h
|
-
|
|
Selection Conditions
♦Material to be processed: _____
♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total material capacity feeding from the inlet): _____t/h
♦Percentage of Max. granule in material:_________%
♦Upstream equipment (Ps. It means what kind of Equipment is used to feed the material):____
♦Bulk Density: _____t/m3
♦Material temperature: _____℃;
♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____
♦Water content:____%
♦Material is corrosive or not: ____ (Ps. Yes or No)
♦Working power supply: _____V ______HZ
♦Material is sticky or not: ____ (Ps. Yes or No)
♦Working environment is indoor or outdoor: ______________
♦Working environment temperature: ______ ℃
♦Please refer to the following picture and provide the relevant parameters:L1____m, L2___m, H___m, α____°
Operation regulation and maintenance
- Belt conveyor should be operated in according to design requirement.
-
Belt conveyors are not allowed to overload run.
-
All safe alarming should be in good condition.
-
Walkway of emergency switch should be free. The switch should be regular inspected to see whether they are in good condition.
-
All transition load point should have enough light facilities.
-
Fence should be provided under gravity type tensioning devices and the area where man easily access.
