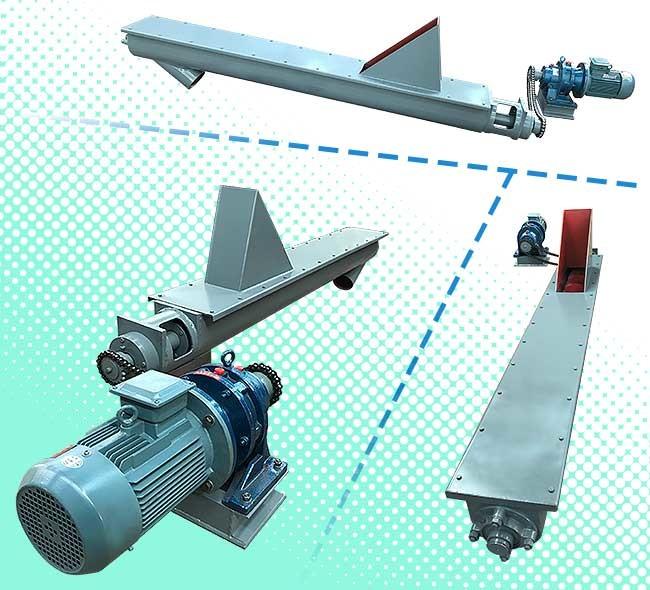

Long Distance Continuous 28.4m3/h Screw Conveyor Machine
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
10 work days
Brand:
Jinrui/Kunwei
Product Description
Long Distance Continuous Screw Conveyor Design Calculation
Information of Long Distance Continuous Screw Conveyor Design Calculation
Screw conveyor is a kind of machinery that uses motor to drive screw rotation and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance and closed transportation. Screw conveyor can be divided into shaft screw conveyor and shaftless screw conveyor in conveying form, and U-type screw conveyor and tubular screw conveyor in appearance. The shaft screw conveyor is suitable for cohesionless dry powder materials and small particle materials (such as cement, fly ash, lime, grain, etc.), while the shaftless screw conveyor is suitable for viscous and easy winding materials. (for example: sludge, biomass, garbage, etc.) the working principle of the screw conveyor is that the rotating spiral blade moves the material and carries out the screw conveyor conveying. The force that makes the material not rotate with the screw conveyor blade is the material weight and the friction resistance of the screw conveyor shell to the material. For spiral blades welded on the rotating shaft of screw conveyor, the surface types of blades include solid surface, belt surface, blade surface, etc. A thrust bearing is provided at the end of the screw shaft of the screw conveyor in the direction of material movement to give the axial reaction force to the screw along with the material. When the length of the machine is long, the middle hanging bearing should be added.
Characteristics of Long Distance Continuous Screw Conveyor Design Calculation
The screw conveyor is a kind of continuous conveying equipment without flexible traction, which uses the rotating screw to move the conveyed material along the fixed casing. It is as if the unrotatable nut is held and translated along the screw. The force that keeps the material from rotating with the screw is the gravity of the material and the friction against the shell.
The advantages of the screw conveyor are: simple structure, convenient maintenance, small size of the cross section, can enter and leave materials at any position in the length direction, and can use the cover of the tight closed housing to achieve a better sealing effect.
Therefore, screw conveyor is widely used in various industrial sectors to transport a variety of powdered, granular and small materials, such as coal ash, cement, sand, coal, cereals and so on; it is not easy to transport viscous caking materials which are easy to deteriorate.
The advantages of the screw conveyor are: simple structure, convenient maintenance, small size of the cross section, can enter and leave materials at any position in the length direction, and can use the cover of the tight closed housing to achieve a better sealing effect.
Therefore, screw conveyor is widely used in various industrial sectors to transport a variety of powdered, granular and small materials, such as coal ash, cement, sand, coal, cereals and so on; it is not easy to transport viscous caking materials which are easy to deteriorate.
Technical parameter of Long Distance Continuous Screw Conveyor Design Calculation
|
Model
|
Diameter
mm
|
Pitch
mm
|
Speed
r/min
|
Standard
Capacity(m3/h)
|
Speed
r/min
|
Standard
Capacity(m3/h)
|
Speed
r/min
|
Standard
Capacity(m3/h)
|
||||||
|
φ0.45
|
φ0.33
|
φ0.15
|
φ0.45
|
φ0.33
|
φ0.15
|
φ0.45
|
φ0.33
|
φ0.15
|
||||||
|
LS200
|
200
|
200
|
100
|
16.9
|
12.4
|
5.6
|
80
|
13.5
|
9.9
|
4.5
|
63
|
10.7
|
7.8
|
3.6
|
|
LS315
|
315
|
315
|
80
|
52.9
|
38.8
|
17.6
|
63
|
41.6
|
30.5
|
13.9
|
50
|
33.1
|
24.2
|
11
|
|
LS400
|
400
|
355
|
71
|
85.3
|
62.5
|
28.4
|
56
|
67.3
|
49.3
|
22.4
|
45
|
54.1
|
39.6
|
18
|
|
LS500
|
500
|
400
|
63
|
133.2
|
97.7
|
44.4
|
50
|
105.8
|
77.6
|
35.3
|
40
|
84.6
|
62.0
|
28.2
|
|
LS630
|
630
|
450
|
50
|
188.9
|
138.5
|
63.0
|
40
|
151.1
|
110.8
|
50.4
|
32
|
120.9
|
88.6
|
40.3
|
Selection Conditions
|
Material to be processed: _____
|
Working environment is indoor or outdoor:________
|
|
Handling capacity: ________per hour
|
Working environment temperature: _______ ℃
|
|
Bulk Density: _____t/m3
|
Installation form is horizontal or inclined : ________
|
|
Conveying distance: ________
|
If it is inclined,what is the inclined degree_____°
|
|
Material size:____mm
|
Water content:____%
|
|
Material temperature: _______ ℃
|
Working power supply: _____V ______HZ ______PH
|
