Adjustable Transition Idlers Set 1.0m/s Belt Conveyor System
Adjustable Transition Idlers Set With Belt Conveyor System

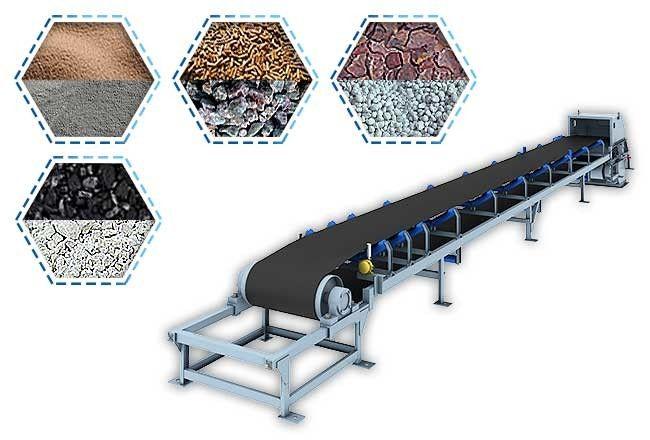

The belt conveyor is mainly composed of driving device, driving roller, changing direction roller, conveyor belt, supporting roller, tensioning device, supporting component and safety protection device.
It has the following characteristics:
(1) The structure is simple. The structure of belt conveyor is only composed of the above parts, which can be standardized production and assembled according to the needs. The structure is very simple.
(2) Large conveying capacity. The transportation capacity can be from several kilograms per hour to several thousand tons, and it is continuous and uninterrupted transportation.
(3) The conveying distance is long and there is no need for any transfer point in the middle.
(4) A wide range of conveying materials. The conveyor belt of belt conveyor has anti-wear, acid and alkali resistance, oil resistance
Application of AdjustableTransition Idlers Set With Belt Conveyor System
Light industry |
bags,corn,sawdust,chips,salt,bags,plastic,Distiller's grains and so on. |
| Mining Coal industry | Iron ore , rock,limestone,Blast furnace slag,Anthracite, coke, clean coal, raw coal, dry sand,stone and so on. |
Chemical industry |
Silica sand,Aluminum trichloride,fertilizer,cement,Soda ash and so on. |
| Other industry | Solid waste,Exfoliation,Biomass particles and so on. |
Technical Parameters of AdjustableTransition Idlers Set With Belt Conveyor System
| Belt Width | Section Form | Speed | Max Capacity |
| 800mm | Though | 1.0m/s | 278t/h |
| 1.25m/s | 348t/h | ||
| 1.6m/s | 445t/h | ||
| 2.0m/s | 546t/h | ||
| Flat | 0.8m/s | 118t/h | |
| 1.0m/s | 147t/h | ||
| 1.25m/s | 184t/h | ||
| 1.6m/s | 236t/h | ||
| 2.0m/s | 289t/h |
How To Get The Price Of AdjustableTransition Idlers Set With Belt Conveyor System
We are a factory,and you are warmly welcomed to pay an on-site visit!
T/T L/C Western union,cash and so on.
We have R&D team who will handle your case and come up with an ideal solution
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
Yes,and all the relative costs should be covered by you
