Cement Delivering Screw Conveyor Machine With Double Inlets
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
10 work days
Brand:
Jinrui/Kunwei
Product Description

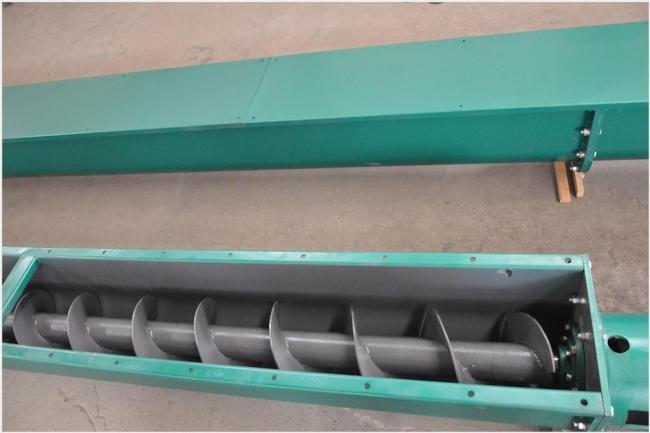

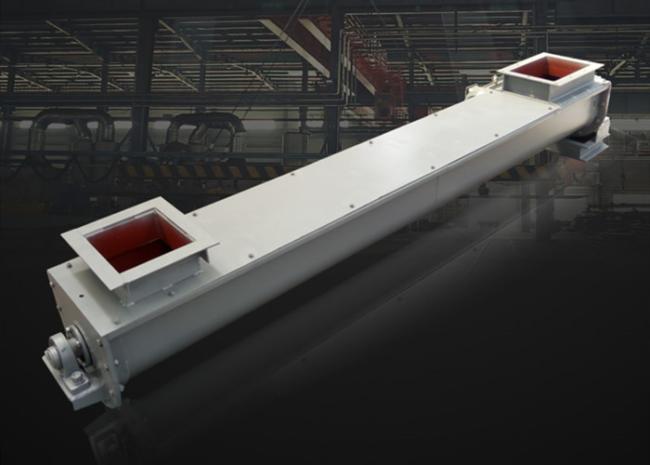

Cement Delivering Screw Conveyor Machine With Double Inlets
Information of Screw Conveyor Machine
Screw Conveyor Machine is a kind of machinery that uses motor to drive screw rotation and push materials to achieve the purpose of conveying. Screw Conveyor Machine can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance and closed transportation. Screw Conveyor Machine can be divided into shaft screw conveyor and shaftless screw conveyor in conveying form, and U-type screw conveyor and tubular screw conveyor in appearance.
Technical parameter of Screw Conveyor Machine
Model number | LSY140 | LSY160 | LSY200 | LSY250 | LSY300 | LSY400 | ||
Screw diameter(mm) | 140 | 163 | 187 | 238 | 290 | 365 | ||
Rotating speed(r/min) | 300 | 300 | 260 | 200 | 175/300 | 175 | ||
Outer diameter(mm) | 168 | 194 | 219 | 273 | 325 | 402 | ||
Max length(m) | 11 | 12 | 13 | 16 | 18 | 18 | ||
Incline degree(α°) | 0°~60° | 0°~60° | 0°~60° | 0°~60° | 0°~55° | 0°~55° | ||
Conveying capacity(t/h) | 9-17 | 30-20 | 50-32 | 70-53 | 82-60/120-85 | 140-110 | ||
Motor | Model | L≤-7 | Y132S-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 |
Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 18.5 | ||
Model | L>7 | Y132S-4 | Y132M-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 | |
Power(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 22 | ||
How To Get The Price Of Screw Conveyor Machine
1.Are you a factory or a trading company
We are a factory,and you are warmly welcomed to pay an on-site visit!
We are a factory,and you are warmly welcomed to pay an on-site visit!
2.What's the accepted payment term?
T/T L/C Western union,cash and so on.
3.How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
