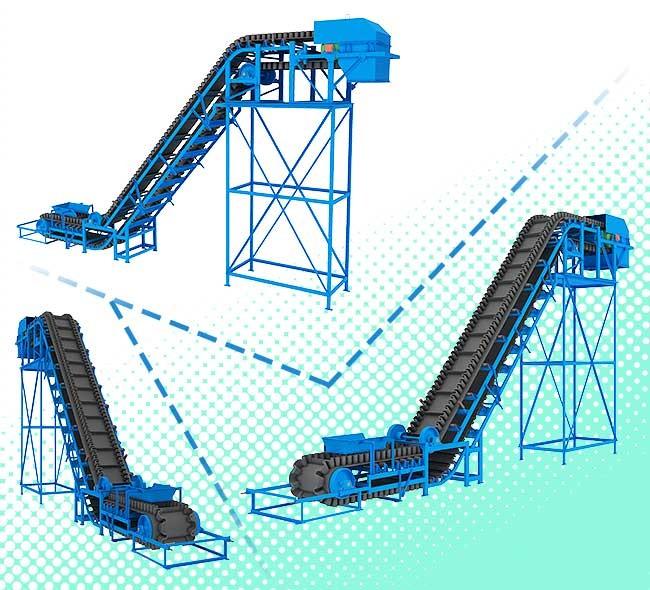

DJ Type Large Angle Vertical Sidewall Belt Conveyor For Coal Aggregate

Introduction

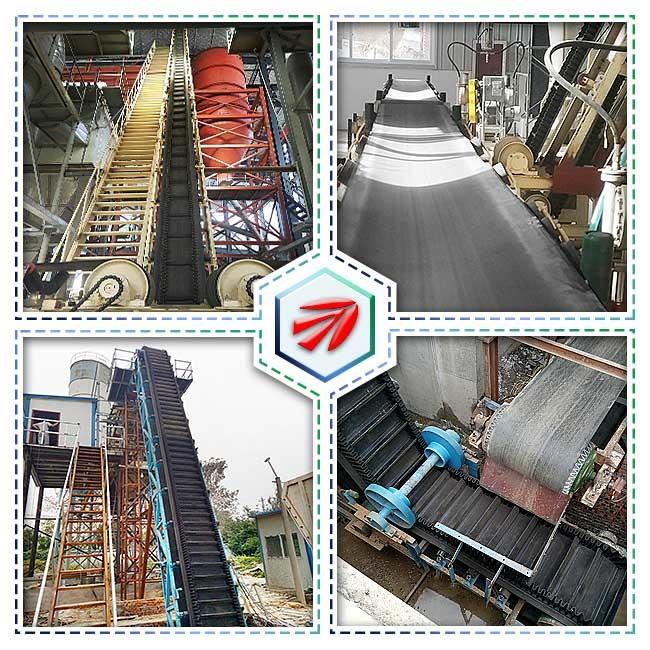

Sidewall belt conveyors are the best solution for horizontal, sloping or vertical product transport. It adopts high quality conveyor belt with corrugated sidewall and horizontal baffle. Sidewall belt conveyor is widely applied in coal and wood-chip fired power stations, underground mining (coal and ore),steel industry, ship loading and unloading, foundry plants, silo feeding industry, waste recycling, soil purification and water treatment, etc.



Advantages and Features of Vertical Sidewall Belt Conveyor
1.No spillage with steep angle conveying,long lifespan
2.Larger production grain sizes can be handled
3.Reduced energy consumption to save money for you
4.Able to conveyor material at any angles up to 90 degree to save space for you
5.Higher conveyance capacity
6.Extremely high stability is provided in the traverse direction, good longitudinal flexibility
7.Low maintenance requirements
8.Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt.
9.Can be sealed and environmental friendly

Selection Conditions of Vertical Sidewall Belt Conveyor

Operation regulation and maintenance of Vertical Sidewall Belt Conveyor

• Belt conveyor should be operated in according to design requirement.
• Belt conveyors are not allowed to overload run.
• Check wear condition of the belt, the damaged should be repaired.
• Operators should circuit to inspect to close observe belt conveyor running. Especially,temperature rise and noise of main motor and the brake working whether they are normal; contact state of the brake and oil level, noise of gear unit and run off of belt should be noticed;temperature rise and noise of all bearings and state of all transition loads point should be noticed;
  notice to see whether the hopper are blocked, working state of pulley, idler, belt cleaner, take-ups and control equipment.
• Operators should make good record if any abnormal. The belt conveyor should be stoppe on emergency.
• Periodic overall: Minor overall should be once every monthes besides ordinary maintenance Overhaul should be once half past year or once every year.
