U Shape Viscous Material Use Sludge Screw Conveyor WLS Type
WLS Type U shape Viscous Material Used Sludge Screw Sonveyor
I. Overview.

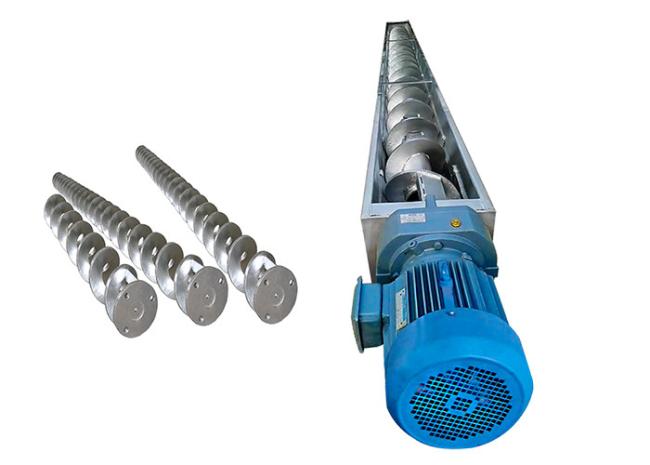

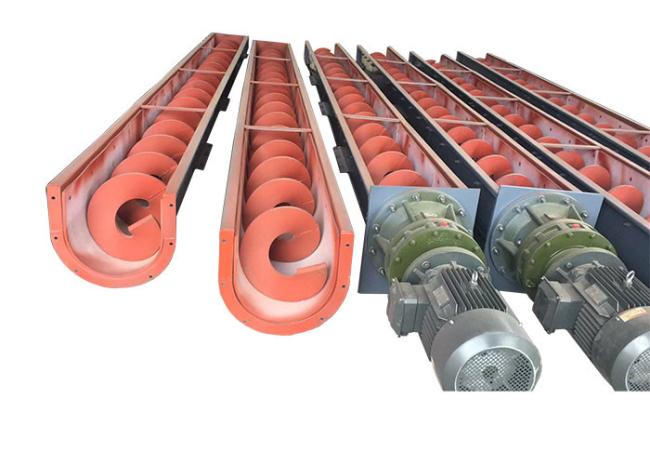

Shaftless screw conveyor is a kind of screw conveyor. Shaftless screw conveyor consists of driving device, shaftless screw, cover, bracket, inlet and outlet, base, etc.
The shaftless screw conveyor drives the spiral body to rotate through the rotation of the motor to push the material to the place where it needs to be unloaded. During the whole process, the material does not follow the spiral blade to rotate, but is pushed forward by the moving blade in the rotation. The shaftless screw conveyor can be equipped with multiple inlets and outlets.
II.Characteristics are below
1. Flexible transportation, multiple loading and unloading points can be set up according to requirements.
2. The operation and conveying process are safe and reliable.
3. During the conveying process, the screw device can complete the effects of mixing, stirring and cooling.
4. The conveying capacity is large, and the material is pushed and conveyed by the weight of the material itself, which greatly reduces the power consumption.
5. High tightness to reduce dust.
6. Fixed or mobile screw conveyors can be set up according to requirements, increasing the working mode can be optional.
III. Applictaion
Shaftless screw conveyors are suitable for conveying viscous, mushy and viscous materials, such as sludge, muck with high water content; conveying easily entangled materials, fibrous materials, such as household garbage, wood chips, wood chips, etc.
IV. Technical parameter
| Model | Screw Diameter(mm) | Speed(r/min) | Capacity(m3/h) |
| WLS150 | 148 | 60 | 5 |
| WLS200 | 180 | 50 | 10 |
| WLS250 | 233 | 45 | 15 |
| WLS300 | 278 | 40 | 25 |
| WLS400 | 365 | 30 | 40 |
| WLS500 | 470 | 25 | 65 |
Ⅴ.Selection Conditions of Trough Auger Conveyor
| Material to be processed: _____ | Working environment is indoor or outdoor:________ |
| Handling capacity: ________per hour | Working environment temperature: _______ ℃ |
| Bulk Density: _____t/m3 | Installation form is horizontal or inclined : ________ |
| Conveying distance: ________ | If it is inclined,what is the inclined degree_____° |
| Material size:____mm | Water content:____% |
| Material temperature: _______ ℃ | Working power supply: _____V ______HZ ______PH |
VI. About us:
Xinxiang Jinrui Machinery Factory is located in Xinxiang city, Henan province ,China. In 1999 year, our company was known as Xinxiang county mechanical and electrical equipment factory and we changed the company name as Xinxiang Jinrui Machinery Factory in 2001 year. Our company has 3000 square meters of standardized production workshop. Company has developed into a set design, development, production, manufacturing, sales in the integration of high-tech enterprises.
Our company has passed CE , ISO9001 quality management system certification and has professional technical team, sales team and production team. We supply our professional service with CAD & 3D design.
Main products: Our main production: Belt conveyor machine, sidewall belt conveyor, enclosed belt conveyor, inclined belt conveyor, troughed belt conveyor, U trough screw conveyor, tubular screw conveyor, reversible belt conveyor,impeller feeder, vibratory feeder, movable belt conveyor,circular vibrating sieve,small vibrating screen,heavy duty belt conveyor;
