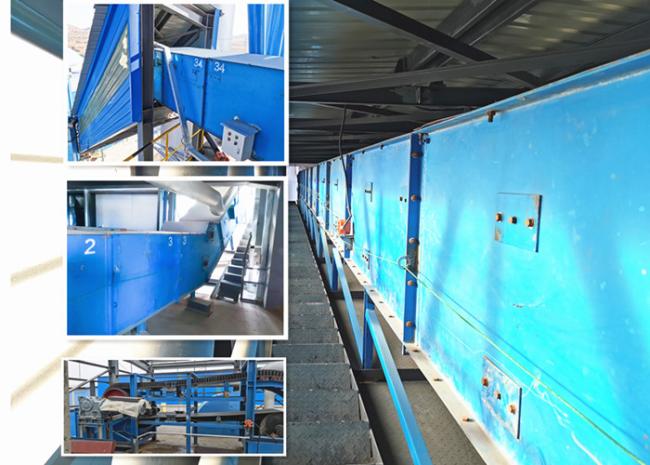

Lifting Height 25m Enclosed Belt Conveyor Rubber Corrugated Sidewall Conveyor
DJF Model Lifting height 25m Rubber Corrugated Sidewall Conveyor
DJF Model Lifting height 25m Rubber Corrugated Sidewall Conveyor
This series of Corrugated Sidewall Conveyor is a general-purpose continuous conveying equipment for bulk materials. It adopts a conveyor belt with corrugated sidewalls and diaphragms. Therefore, it is especially suitable for large-angle conveying.
Advantages of Corrugated Sidewall Conveyor
- Sidewall belt conveyor have two horizontal parts , can connect with other machine easily;
- Adopt corrugated flang belt, the max angle can be 90 degree, save place;
-
No spillage at the steep angle when transfer bulk material.
- Simple structure and easy maintenance;
Application of Corrugated Sidewall Conveyor
This series of Corrugated Sidewall Conveyor can be widely used in coal, chemical industry, building materials, hydropower and metallurgy and other departments. In the range of ambient temperature -19℃～+40℃, it can transport various bulk materials with a bulk specific gravity of ~m3.
Technical parameters for reference of Corrugated Sidewall Conveyor
| Belt Width (mm) | Ribs Height (mm) | Speed (m/s) | Angle (°) | Capacity (m3/h) | Power (kw) |
|---|---|---|---|---|---|
| 500 | 80,100,120 | 0.8~2.0 | 30~90 | 84~112 | 1.5~18.5 |
| 650 | 100,120,160 | 0.8~2.0 | 30~90 | 140~186 | 1.5~22 |
| 800 | 120,160,200 | 0.8~2.5 | 30~90 | 186~360 | 2.2~45 |
| 1000 | 160,200,240 | 1.0~2.5 | 30~90 | 428~683 | 4.0~75 |
| 1200 | 160,200,240,300 | 1.0~3.15 | 30~90 | 535~1358 | 5.5~110 |
Inspection, Operation, Maintenance of Corrugated Sidewall Conveyor
1. Check whether the conveyor is installed correctly and whether the fasteners are loose.
2. Check that the tape joints, corrugated ribs and baffles are in good condition.
3. Check whether the flexibility and corresponding clearance of each idler and rotating parts on the shaft are normal, and whether there is no rotation phenomenon.
4. Check whether the tightness of the cleaning device and the tape is even.
5. Check whether the wiring of the electromechanical part is correct and good, and whether the voltage is within the rated range
