Durable Pole Accessories Ceramic Glass Cap And Pin Type Suspension Insulator

Price Negotiable

Price: $4-$6

MOQ: 100 Pieces

Delivery Time: 30 - 60 workdays

Brand: FUTAO

Product Description

12kv 35kv 11kv 33kv pole accessories ceramic glass cap and pin type suspension insulator

Product Description

Technical requirements
1	Colour : BROWN OR WHITE
2	Creepage distance : 320mm
3	Cantilever stength : 70KN
4	Routine tensile load : 35KN
5	Power frequency with sand voltage (Dry):70KN
6	Power frequency with sand voltage (Wet):40KN
7	Puncture voltage : 110KV
8	Dry impulse with stand voltage :100KV
9	Radio interference (Max. RIV at 1 MHz) :50μV
10	As per IEC383-1:1993

Item	Description	Remark	Quantity	Material
1	Porcelain		1	Porcelain
2	Steel shank	IEC60120 Size16	1	M.O. Galvanized steel
3	Cement		2	Cement
4	Steel cap	IEC60120-16A		M.O. Galvanized steel
5	Split pin	IEC60120-16A	1	M.O. Galvanized steel

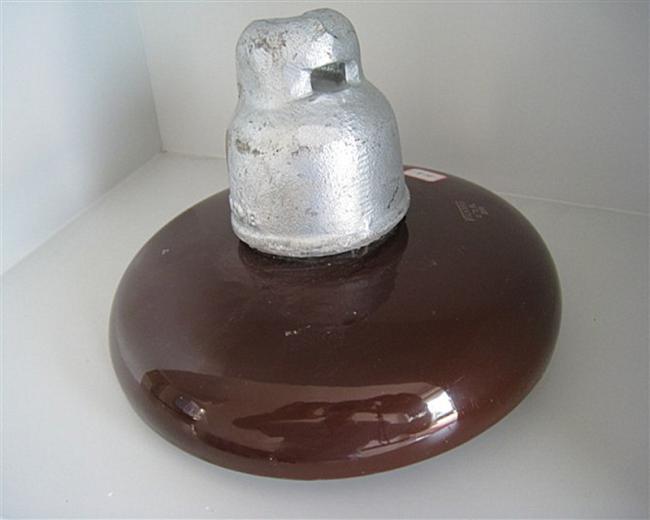

Detailed Images

MAIN DIMENSIONS AND STANDARD PARTICULARS


			Cat. No.
			H1101
			H1102
			H1103
			H1104
			H1105
			H1106
			H1107
			H1108


			Fig
			2
			1
			2
			2
			2
			2
			2
			3


			Class Standard
			XP-
70-A

			XP-
70C-A

			XP-
125-A

			XP-
160-A

			XP-
70-Y

			XP-
110-Y

			XP-
160-Y

			XP-
190-Y



			Main Dimensions mm
			D
			254
			254
			254
			254
			254
			254
			254
			279.4


			H
			146
			146
			146
			146
			146
			146
			146
			171


			Creepage Distance (mm)
			292
			292
			292
			317.2
			292
			292
			317.5
			368.3


			Flashover Voltage
			Power
frequency

			Dry(kV)
			75
			75
			75
			78
			75
			78
			78
			80


			Wet (kV)
			45
			45
			45
			45
			45
			45
			45
			47


			Electromechanical failing Load (KN)
			70
			70
			125
			160
			120
			110
			110
			125


			Power-frequency puncture Voltage(kV)
			120
			120
			120
			160
			120
			110
			110
			125


			Lighting Full-Wave Impulse Withstand Voltage (Peak) Minimum (kV)
			100
			100
			100
			110
			100
			100
			100
			110


			Weight (kg)
			4.5
			4.5
			4.5
			6.5
			4.5
			5.7
			6.5
			9


			Applied Standard
			AS
			AS
			AS
			AS
			BS
			BS
			BS
			BS


Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.

Packaging can also be done according to clients’ requirements.

We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
