Q QP QH ball head hanging ring for electric aerial cable fitting Ploe accessories

Price Negotiable

Price: $0.5 - $3

MOQ: 1 pieces

Delivery Time: 10 workdays

Brand: FUTAO

Product Description

Q QP ball head hanging ring for electric aerial cable fitting Ploe accessories

QP, QH & Q type ball head shackle are used for connections with the socket on steel nut subjected to the top section of ball & socket-shaped suspension insulator, avoiding the stress concentration for point contact generated by the connective point. According to different usage conditions, ball head shackles are composed of ring interface type & bolt flat interface.

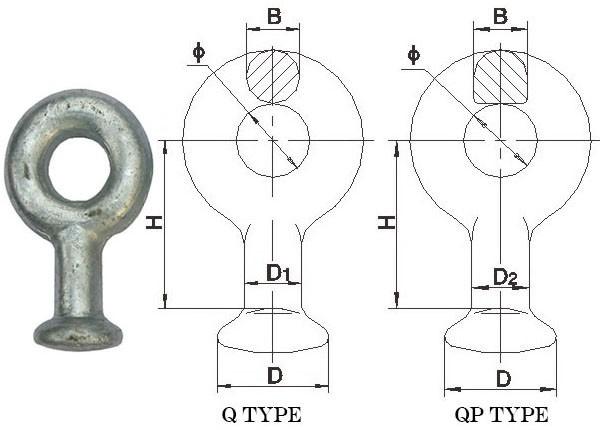

QP, QH & Q Type Ball Head Shackle

National Grid Type	No. 85 Standard Type	Size of Coupling	Dimension (mm)					Nominal Failure Load (kn)
National Grid Type	No. 85 Standard Type	Size of Coupling	B	D1	D	Φ	H	Nominal Failure Load (kn)
	Q-7	16	16	17	33.3	22	50	70
QP-0750	QP-7	16	16	17	33.3	20	50	70
QP-1050	QP-10	16	16	17	33.3	20	50	100
QP-1260	QP-12	16	16	17	33.3	24	60	120
QP-1660	QP-16	20	18	21	41.0	26	60	160
	QP-20	24	24	25	49.0	30	80	200
	QP-21D	20	21	21	41.0	29	70	210
QP-2180		20	20	21	41.0	26	80	210
QP-2580		24	24	25	49.0	30	80	250
	QP-30	24	28	25	49.0	39	80	300
QP-3280		24	28	25	49.0	33	80	320

National Grid Type	No. 85 Standard Type	Size of Coupling	Dimension (mm)						Nominal Failure Load (kn)
National Grid Type	No. 85 Standard Type	Size of Coupling	Φ	D1	D	C	H1	H	Nominal Failure Load (kn)
QH-07100	QH-7	16	16	17	33.3	24	57	100	70
	QH-10	16	18	17	33.3	22	60	110	100
	QH-12	16	19	17	33.3	22	63	120	120
QH-16155	QH-16S	20	20	21	41.0	26	100	155	160
QH-21140		20	20	21	41.0	26	83	140	210
QH-21155	QH-21S	20	20	21	41.0	26	100	155	210
QH-32175	QH-32S	24	28	25	49.0	32	110	175	320

Type	Size of Coupling	Dimension (mm)					Nominal Failure Load (kn)	Weight (kg)
Type	Size of Coupling	B	C	Φ	H1	H	Nominal Failure Load (kn)	Weight (kg)
Q-7M	16	16	18	14	60	130	70	1.0
Q-12M	16	18	24	14	70	145	120	1.3
