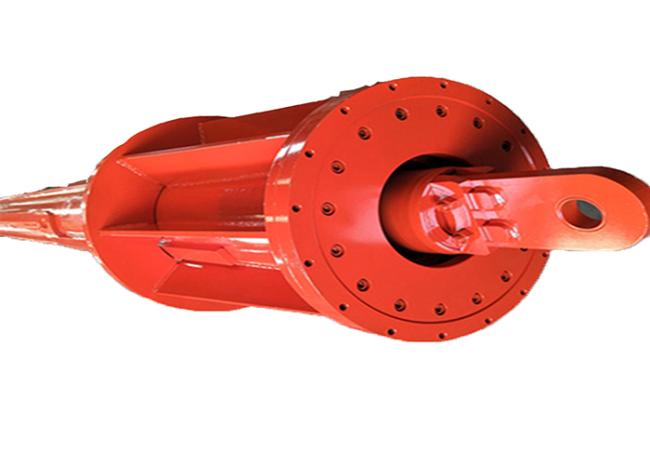

Kelly Drive Stub Rotary Drilling Rig
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-10days
Brand:
JZTG
Product Description
Kelly Drive Stub Rotary Drilling Rig CQC Certification Customer Required
Kelly bar is a comsumable part, to improve the perforemance and prolong the service life of old kelly bars, we can supply all kinds of spare parts including Kelly swivel, Kelly Spring, Kelly Stub, Water flow block, Kelly Terminal, Kelly Strip, Kelly pipe and so on.
Technical Parameter of Kellyway Inter-Locking Kelly Bars
|
Diameter (MM) |
Elements |
Length (M) |
Torque (KN·M) |
Max Drilling Depth(M) |
| 355 | 3&4 | 8-12 | 180 | 42 |
| 377/368 | 3&4 | 8-13 | 220 | 46 |
| 406/394 | 3&4 | 8-14 | 230 | 50 |
| 419/426 | 3&4 | 8-15 | 250 | 54 |
| 440/445 | 3&4 | 8-15 | 259 | 54 |
| 470 | 3&4 | 8-17 | 280 | 62 |
| 508 | 3&4 | 10-17 | 320 | 62 |
| 530 | 3&4 | 10-20 | 380 | 71 |
| 575 | 3&4 | 10-21 | 420 | 75 |
| 630 | 3&4 | 10-21 | 460 | 75 |
| All specifications can be tailored as per customers’ special requirements. | ||||
Technical Parameter of Kellyway Inter-Locking Kelly Bars
|
Diameter (MM) |
Elements |
Length (M) |
Torque (KN·M) |
Max Drilling Depth(M) |
| 355 | 3&4&5 | 8-12 | 180 | 54 |
| 377/368 | 3&4&5 | 8-13 | 220 | 59 |
| 406/394 | 3&4&5 | 8-14 | 230 | 64 |
| 419/426 | 3&4&5 | 8-15 | 250 | 69 |
| 440/445 | 3&4&5 | 8-15 | 259 | 69 |
| 470 | 4&5&6 | 8-17 | 280 | 95 |
| 508 | 4&5&6 | 10-17 | 320 | 95 |
| 530 | 4&5&6 | 10-20 | 380 | 112 |
| 575 | 4&5&6 | 10-21 | 420 | 118 |
| 630 | 4&5&6 | 10-21 | 460 | 118 |
| All specifications can be tailored as per customers’ special requirements. | ||||
