Light Duty Apron Cement Feeder , Coal Industries Apron Weigh Feeder
Light Duty Apron Feeder Chain Plate Conveyor For Cement, Mining, Coal Industries
Product Description
Light duty apron feeder is widely used in building material, metallurgy, electric power, coal, chemical industry, foundry industry, etc. Especially suitable for the conveying of high temperature, large blocks, with sharp edges and wear resistance strong solid material In the cement industry, the best choice for shaft kiln clinker conveying.
It can be installed horizontally or aslant ,but the maximum slant angle couldn’t more than 12 degrees.
Features

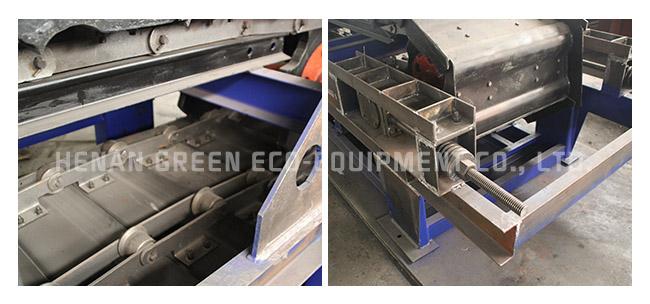

The traction chain with long pitch plate pin shaft roller chain, every parts of chain adopts alloy steel material, and through scientific heat treatment, wear-resisting performance is good, high tensile strength, long service life, introduce the stamping groove, the middle use reinforcing rib, the performance is good, large carrying capacity.
Advantages
1. The apron feeder is widely used for conveying metal ,limestone, gold ore and construction waste ,gypsum etc.,
2. It can bear big pressure under small silo or loader .
3. The speed can be adjusted by frequency conversion control cabinet.
4. Including the feed trough, to prevent the material leakage.
5. Thickness of plate is from 8mm to 20mm.
6. Matched with Such as ABB, Siemens, Flender and SEW etc if required.
7. Can be customized.
Main Parameters
| Model |
Plate width (mm) |
Head to tail shaft center distance(mm) |
Particle size (mm |
Speed (m/s) |
Capacity (t/h) |
Power (kw) |
Reference weight (kg) |
| WBQ500-2 | 500 | 2000 | 7-88 | 0.05-0.4 | <50 | 1.1-3 | 2500 |
|
WBQ500- 6 |
500 | 6000 | 7-88 | 0.05-0.4 | <50 | 1.1-3 | 4000 |
| WBQ500-12 | 500 | 12000 | 7-88 | 0.05-0.4 | <50 | 1.5-4 | 5600 |
|
WBQ630- 3 |
630 | 3000 | 11-175 | 0.04-0.4 | <100 | 1.5-4 | 4700 |
| WBQ630-15 | 630 | 15000 | 11-175 | 0.04-0.4 | <100 | 2.2-5.5 | 9000 |
| WBQ800-6 | 800 | 6000 | 19-308 | 0.04-0.4 | <350 | 2.2-5.5 | 5200 |
Why choose us?
1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a.Provide installation plan guidance.
b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
