General Fixed Long Distance Belt Conveyor , Horizontal Belt Conveyor Wear Resistance
General Fixed Belt Conveyor Long Distance Belt Conveying System
Product Description
General fixed belt conveyor is a kind of constantly conveying machine which is widely used in industrial field. It’s suitable for conveying of various bulk material or packed materials, like particle, powder of 0.5~2.5t/m³ density, also to goods of pieces or packages. It can be used with other conveying machine. It has a lot of advantages of large throughput, low operating cost, wide range of application. Its structure is simple, very safe, easy maintenance, can be widely used in flour factory, feed processing plant, oil factory, starch factory, mines, cement, construction, chemical, glass and other industries.
Main Features
1.Belt Conveyors can work at the ambient temperature between - 10 ℃ and 40 ℃.
2.Choose conveyor belt reasonably according to different temperature of material.The temperature is generally no higher than 60℃.
3.Heat-resisting type belt must be used when conveying materials with higher temperature
Main Parameters
| Belt width(mm) | Belt speed(m/s) | Conveying capacity(m³/h) | Motor Power(kw) | |
| Groove type | Flat type | |||
| 500 | 0.8-2.5 | 78-232 | 41-125 | 1.5-30 |
| 650 | 0.8-2.5 | 131-391 | 67-211 | 1.5-40 |
| 800 | 1.0-3.15 | 278-824 | 118-350 | 1.5-75 |
| 1000 | 1.0-3.15 | 435-1233 | 230-546 | 3-100 |
| 1200 | 1.0-4.0 | 655-2202 | 345-821 | 4-185 |
| 1400 | 1.0-4.0 | 891-2996 | 469-1117 | 4-185 |
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

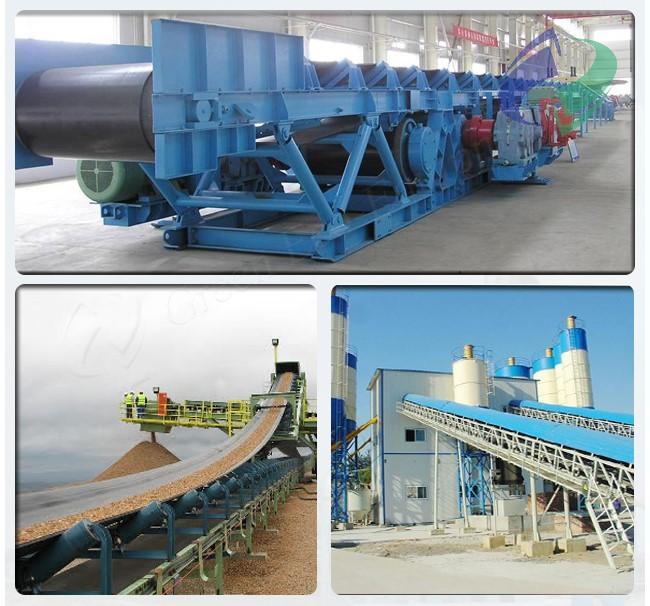

Field Usage
