Durable Apron Belt Conveyor Machine For Big Chunk Stone Ore 20-800t/H
Durable Apron Feeder Chain Plate Conveyor Machine For Big Chunk Stone Ore
Product Description
Durable Apron Feeder Chain Plate Conveyor Machine is used to feed block or granule materials from material storage to a charging device evenly and continuously. Used to achieve an even feeding for crushers in sandstone production lines, and to make a rough screening of materials, this equipment is widely used in combined operation with crushing and screening machines in a range of industries.
Working Principle
The devices are installed on the bottom of the ore bin outlet, the ore fall onto the leakage board at the chute bottom, the bottom of the leakage board is fixed on the idler, and through the eccentric institutions to connect the leakage board and the reducer together, and then through the coupling lined the motor. During the operation the motor drive the reducer through the coupling, and through the eccentric dish and the leaking plate, which is at the bottom of the frame also between the idlers, to move in reciprocating linear way, and achieve the feed uniformly.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤300 | 18.5 | 15000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤400 | 22 | 16000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤450 | 22 | 18000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤500 | 30 | 29000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤800 | 37 | 49000 |
Advantages
1. It can bear big pressure under small silo or loader.
2. The speed can be adjusted by frequency conversion control cabinet.
3. Adopting the feed trough, to prevent the material leakage.
4.Good performance-conditioning, no flushing phenomenon of materials
5. It can be matched with ABB, Siemens, Flender and SEW etc if required.
6.Smoothly running and long service life
7. Super-large capacity with combination of crusher equipment
8. Low noise and power consumption

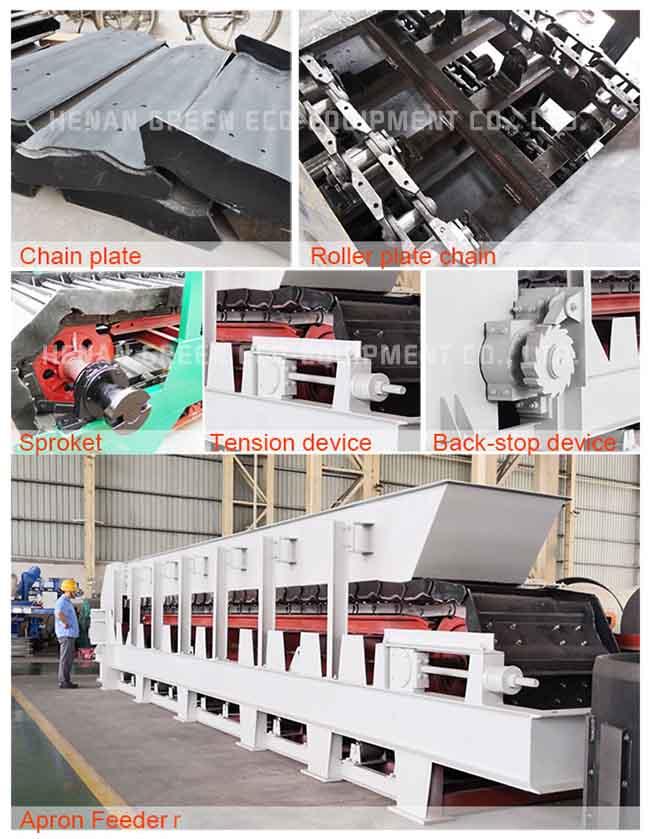

Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Project Case
