High Strength Submerged Scraper Conveyor For Coal Pulver Fuel Easy Operation
High Quality Competitive Scraper Conveyor For Coal Pulver Fuel
Product Description
High Quality Competitive Scraper Conveyor For Coal Pulver Fuel is a bulk material conveying equipment, which is consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By moving the chain, the material in the closed rectangular box can be continuously transported horizontally or slightly tilted.
It is full sealed conveying equipment, widely used for transporting powder and small granular material, Such as: Cement powder, Coal, Chemical fertilizer, Grain and Calcium carbonate etc. Scraper Conveyor can be used to transported bulk material horizontally and sloping transported material.
Working Principle
When the type FU scraper conveyor is transported horizontally, the pressure on the scraper conveyor comes from the chain of the material in the transportation direction, and the effect of the material itself causes internal friction. This friction ensures the stability between the material layers, overcomes the external friction resistance caused by the movement of material in the tank, and enables the material to be transported as a whole fluid.
Main Parameters
| Model | Groove width (mm) |
Ideal size (mm) |
Transportation angle | Transportation speed (m/min | Maximum humidity | ||||||
| 10 | 12 | 14 | 15 | 16 | 20 | 25 | |||||
| Suitable transportation capacity(m3/h) | |||||||||||
| FU150 | 150 | <4 |
≤15° |
6-9 | 9-13 | 12-18 | 15-23 |
≤5% |
|||
| FU200 | 200 | <5 | 11-14 | 16-22 | 22-29 | 27-36 | |||||
| FU270 | 270 | <7 | 19-27 | 23-32 | 25-36 | 28-41 | 31-43 | 38-54 | 47-68 | ||
| FU350 | 350 | <9 | 36-50 | 49-68 | 65-90 | 63-113 | |||||
| FU410 | 410 | <11 | 50-72 | 63-90 | 86-117 | 95-135 | |||||
| FU500 | 500 | <13 | 72-99 | 95-131 | 136-180 | 144-203 | |||||
Main Features
1. Totally enclosed structure, light weight, small volume.
2. Convenient installation and maintenance.
3. Horizontal or slightly inclined transport from 0℃ to 30℃.
4. Multiple material feeding point and discharging point.
5. Conveying distance IS up to 80m, and the material temperature can be lower than 120℃.

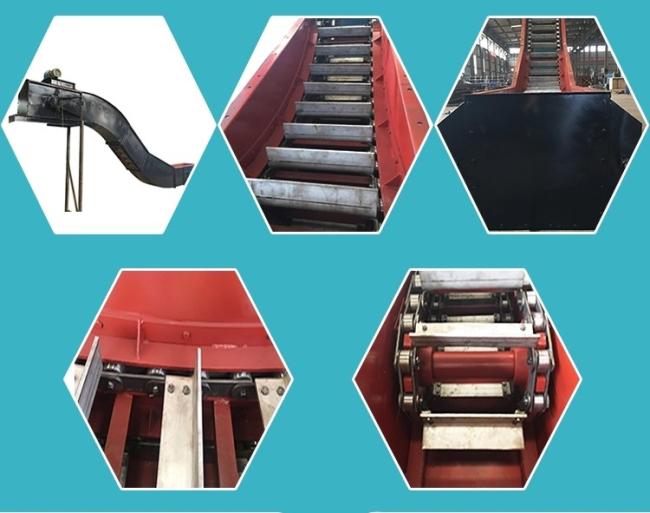

Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Field Usage
