Powder Plate Chain Scraper Conveyor For Grain Power Construction Industry
Powder Plate Chain Scraper Conveyor For Grain Power Construction Industry
Product Description
Powder Plate Chain Scraper Conveyor For Grain Power Construction Industry is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline..
MS type drag chain scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
Main Parameters
| Model | MS12 | MS16 | MS20 | MS25 | MS32 | MS40 | MS50 | MS60 | MS80 |
| Housing width (mm) | 120 | 160 | 200 | 250 | 320 | 400 | 500 | 600 | 800 |
| Housing depth (mm) | 120 | 160 | 200 | 250 | 320 | 400 | 500 | 600 | 800 |
| Capacity (m³/h) | 7~12 | 13-20 | 21-35 | 29-42 | 50-88 | 85-145 | 98-160 | 120-240 | 315-400 |
| Conveying distance(m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Load(KN) | 15 | 17 | 26 | 35 | 45 | 75 | 100 | 2*75 | 2*100 |
| Speed (m/s) | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.4 |
Main Features
1.Widely used in cement,grain,coal,thermal power,metallurgy,chemical and other industries.
2.Large delivery capacity, it can reach 8m3/h-700m3/h.
3.Low energy consumption in delivering, it can save energy 40%-60% compared with spiral conveyer.
4.Compact structure and good sealing.
5.Flexible arrange. Import and export flexible, elevated, ground, pit, level, climbing (less than 10 °) all can install, conveying length can be based on user design.
6.Stable and reliable operation,long service life and convenient maintenance, low using cost..
Application
Chain scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, power industries etc.

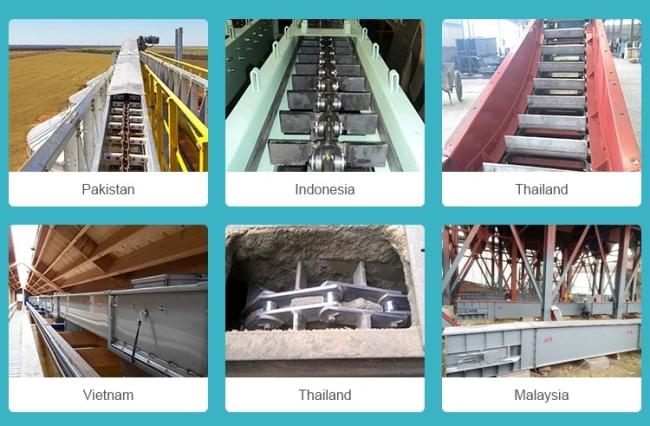

Customer Case
