OEM Custom Enclosed Submerged Scraper Conveyor For Sawdust Wood Chip
OEM Custom Enclosed Chain Scraper Conveyor For Sawdust
Product Description
OEM Custom Enclosed Chain Scraper Conveyor For Sawdust is a special form of buried scraper conveyor. It is suitable for the horizontal or inclined (α≤30°) direction of easy-flowing powdery and small block materials. It is widely used for conveying cement, grain, coal, metallurgy, chemical and other industries. The machine has compact structure, good sealing performance, flexible process layout, multi-point feeding and multi-point discharging. The machine adopts the plate roller chain as the traction member, the friction between the traction chain and the guide rail is rolling friction, which greatly reduces the running resistance of the scraper chain, the power consumption is small, the life of the scraper chain is long, and the long distance transportation can be realized (Lmax =80m), the delivery volume is large (Qmax=700m3/h).
Main Parameters
| Model | FU150 | FU200 | FU270 | FU350 | FU410 | FU500 | FU600 | FU800 |
| Casing width (mm) | 150 | 200 | 270 | 350 | 410 | 500 | 600 | 800 |
| The ideal size (mm) | ≦4 | ≦5 | ≦7 | ≦9 | ≦11 | ≦13 | ≦15 | ≦18 |
| The max size (mm)(≦10%) | ≦8 | ≦10 | ≦14 | ≦18 | ≦21 | ≦25 | ≦30 | ≦36 |
| Scraper speed (m/s) | Capacity of the conveyor (m³/h) | |||||||
| 0.17 | 8 | 16 | 25 | 40 | 65 | 100 | 140 | / |
| 0.21 | 10 | 22 | 40 | 50 | 80 | 128 | 175 | 280 |
| 0.26 | 15 | 30 | 50 | 80 | 120 | 160 | 220 | 350 |
| 0.36 | 20 | 40 | 70 | 110 | 160 | 220 | 340 | 480 |
| 0.40 | 25 | 58 | 90 | 140 | 190 | 270 | 400 | 550 |
| 0.53 | / | / | 110 | 80 | 240 | 360 | 500 | 700 |
Main Features
1. Totally enclosed structure, light weight, small volume.
2. Convenient installation and maintenance.
3. Horizontal or slightly inclined transport from 0℃ to 30℃.
4. Multiple material feeding point and discharging point.
5. Conveying distance IS up to 80m, and the material temperature can be lower than 120℃.
Application
OEM Custom Enclosed Chain Scraper Conveyor For Sawdust is better than that of screw conveyor, scraper conveyor and other transport equipments. FU chain conveyor are widely used in building, chemical, thermal power, food processing, mining and other industries.

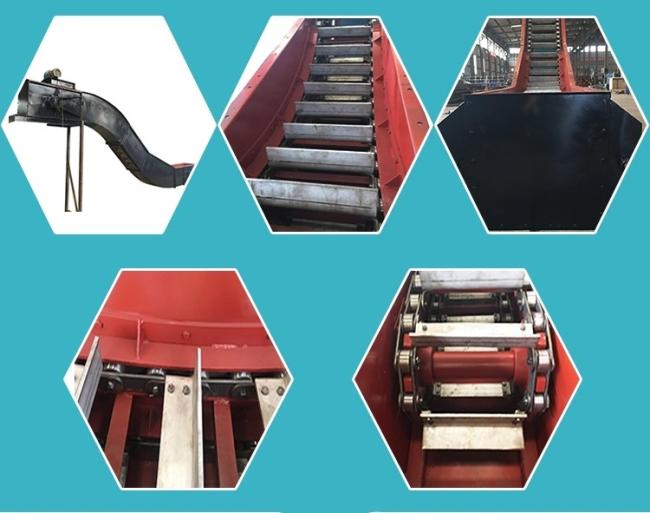

Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

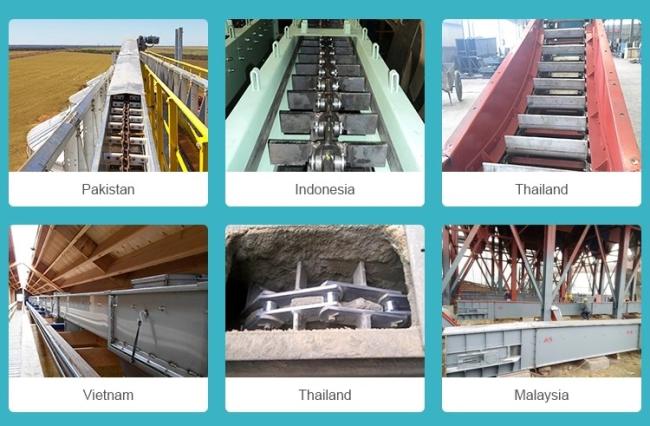

Customer Site
