Ore Mining Apron Feeder Drag Chain Conveyor Wear Resisting 2 Years Warranty
Apron Feeder Drag Chain Conveyor Plate Chain Conveyor For Ore Mining
Product Description
Apron Feeder Drag Chain Conveyor Plate Chain Conveyor is widely used in ore mining, building material, metallurgy, electric power, coal, chemical industry, foundry industry, etc. Especially suitable for the conveying of high temperature, large blocks, with sharp edges and wear resistance strong solid material In the cement industry, the best choice for shaft kiln clinker conveying.
It can be installed horizontally or aslant ,but the maximum slant angle couldn’t more than 12 degrees.
Main Parameters
| Model |
Plate width (mm) |
Head to tail shaft center distance(mm) |
Particle size (mm |
Speed (m/s) |
Capacity (t/h) |
Power (kw) |
Reference weight (kg) |
| WBQ500-2 | 500 | 2000 | 7-88 | 0.05-0.4 | <50 | 1.1-3 | 2500 |
|
WBQ500- 6 |
500 | 6000 | 7-88 | 0.05-0.4 | <50 | 1.1-3 | 4000 |
| WBQ500-12 | 500 | 12000 | 7-88 | 0.05-0.4 | <50 | 1.5-4 | 5600 |
|
WBQ630- 3 |
630 | 3000 | 11-175 | 0.04-0.4 | <100 | 1.5-4 | 4700 |
| WBQ630-15 | 630 | 15000 | 11-175 | 0.04-0.4 | <100 | 2.2-5.5 | 9000 |
| WBQ800-6 | 800 | 6000 | 19-308 | 0.04-0.4 | <350 | 2.2-5.5 | 5200 |
Main Features
The traction chain with long pitch plate pin shaft roller chain, every parts of chain adopts alloy steel material, and through scientific heat treatment, wear-resisting performance is good, high tensile strength, long service life, introduce the stamping groove, the middle use reinforcing rib, the performance is good, large carrying capacity.

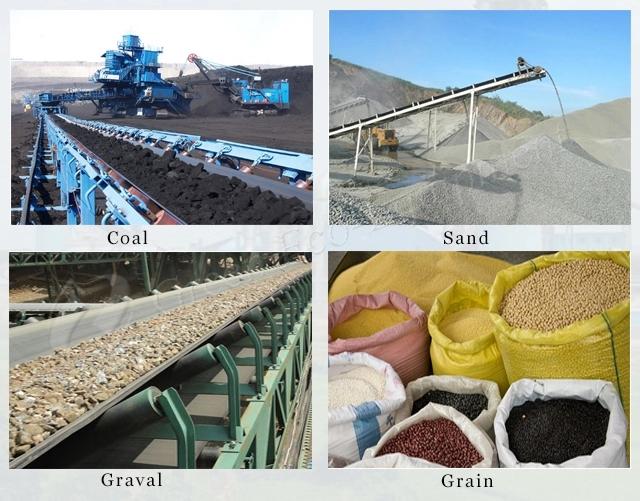

Application
Apron Feeder Drag Chain Conveyor Plate Chain Conveyor is mainly used in coal mining, quarry, metal mining, chemical industry, metallurgy, cement factory etc.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

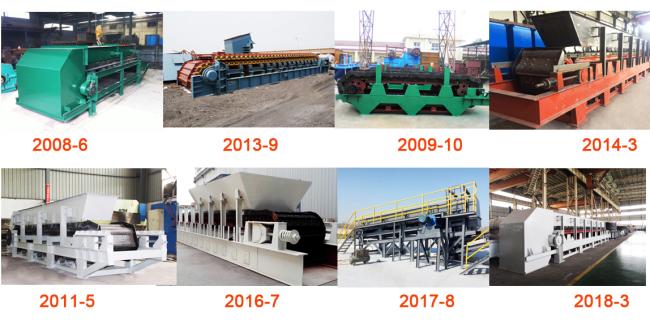

Customer Order
