Mineral Apron Feeder Automatic Ore Feeding Equipment 20-800t/H Capacity
Apron Feeder Plate Feeder Mineral Apron Feeder Automatic Ore Feeding Equipment
Product Description
Apron Feeder Plate Feeder Mineral Apron Feeder Automatic Ore Feeding Equipment is one of the machines for continuously transporting materials. It is widely used to transport large-volume materials to various crushing equipment uniformly and continuously in a short distance. Apron feeder can perfectly solve the transportation problem of loose and block materials as well as large feeding quantity problem in large and medium production lines. It is especially suitable for transporting large, high temperature and sharp materials, and it can reliably work in harsh and humid outdoor environments. Now the apron feeder has been widely used in cement, building materials, metallurgy, mining and other industrial sectors for its superior performance advantages.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤300 | 18.5 | 15000 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤400 | 22 | 16000 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤450 | 22 | 18000 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤500 | 30 | 29000 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤800 | 37 | 49000 |
Working Principle

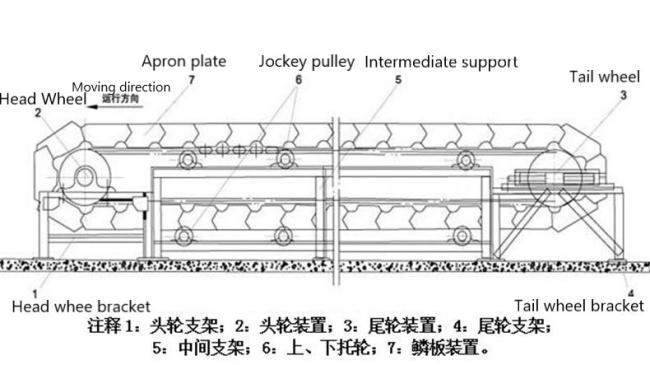

When the plate feeder works, the electro motor and the reducer drives the sprocket with alveolus structure to rotate, so that the hauling chain that engages with the chain wheel will drag the material trough in which there are materials to move forward. The supporting device-hauling chain moves on the thrust wheel and the riding wheel props with the conveying trough to bear the weight of the materials and the running devices. The materials are pushed from the storage bin above the tail to the conveying trough, and move along with it to the chute mouth with housing and then are discharged.
Advantages
1. It can bear big pressure under small silo or loader.
2. Adopting the feed trough, to prevent the material leakage.
3.Smoothly running and long service life
4. Super-large capacity with combination of crusher equipment
5. Low noise and power consumption
6. It has high tension.
7. The caterpillar track ensures its stable performance.
8. Excellent adaptability, the temperature, moisture and the environment have little or no effect on it.
9. Easy to operate, long service life and easy to maintain.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
