TD75 Series Long Distance Industrial Belt Conveyor Used In Power Plant
TD75 Series Long Distance Rubber Belt Conveyor For Bulk Materials
Product Description
TD75 Series Long Distance Rubber Belt Conveyor For Bulk Materials is the conveying equipment that has big throughput, low operating cost, wide range of application , According to the support structure, there are fixed type and mobile type. According to the conveying belt, there are rubber belt, plastic belt and steel belt. It is widely used in power plant, chemical industry, cement, metallurgy, mining, coal, grain, building materials, etc. According to the transportation technology request, it can be worked by one or more machines, or work with other conveying equipments. It can be used for transporting of loose materials which density is 0.5 t/m³~ 2.5t/m³ and packed products.
Main Parameters
| Belt width(mm) | Belt speed(m/s) | Conveying capacity(m³/h) | Motor Power(kw) | |
| Groove type | Flat type | |||
| 500 | 0.8-2.5 | 78-232 | 41-125 | 1.5-30 |
| 650 | 0.8-2.5 | 131-391 | 67-211 | 1.5-40 |
| 800 | 1.0-3.15 | 278-824 | 118-350 | 1.5-75 |
| 1000 | 1.0-3.15 | 435-1233 | 230-546 | 3-100 |
| 1200 | 1.0-4.0 | 655-2202 | 345-821 | 4-185 |
| 1400 | 1.0-4.0 | 891-2996 | 469-1117 | 4-185 |
Main Features
1. Wide range of bulk materials can be handled, including powder, granular and block materials .
2. Large capacities and long conveying distance .
3. Reliable electrical device and mechanical safety device .
4. Flexible installation and maintenance .
5. Construction available in carbon steel, stainless steel.
6. It must use heat-resisting type belt when conveying higher temperature of the material.
Application
TD type belt conveyor is widely using for coal, chemical industry, building materials, metallurgy, electric power, light industry grain, port, shipping, etc. Specific gravity of bulk materials is 0.5-2.5 t/m³ can be conveyed in the working environment where the temperature is suitable.
Details Show

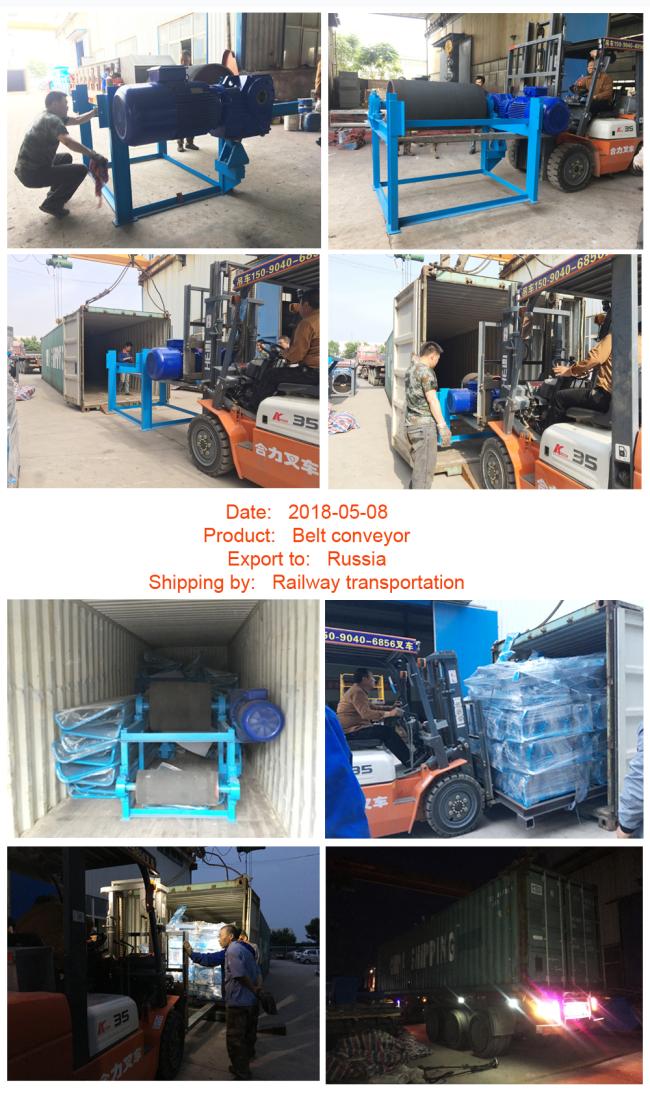

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

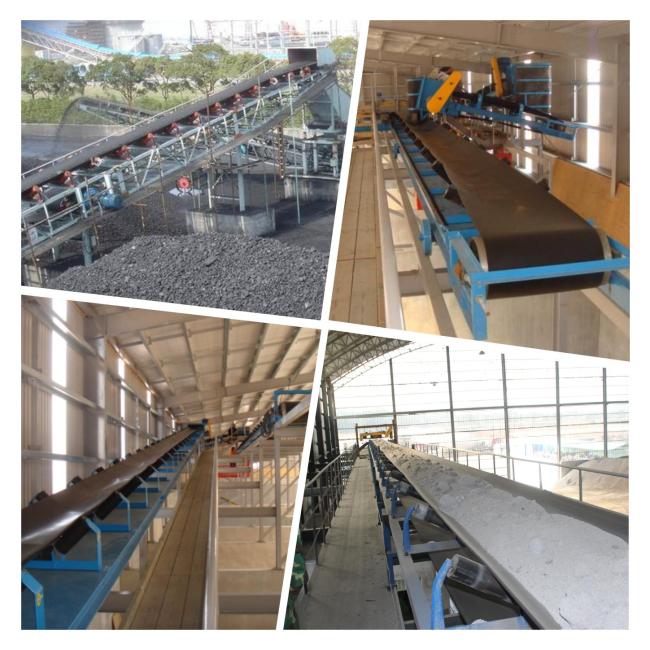

Field Usage
