Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor

Single-wing Hydraulic Lifting Mobile Belt Conveyor For Truck Loading

Product Description


DY type single-wing hydraulic lifting mobile belt conveyor is a kind of the most commonly and flexible conveying equipment. The lifting height can be adjusted through the hydraulic system control, so as to meet the different lifting height requirements. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m³. It can be also used in conveying packed bags or cartons.

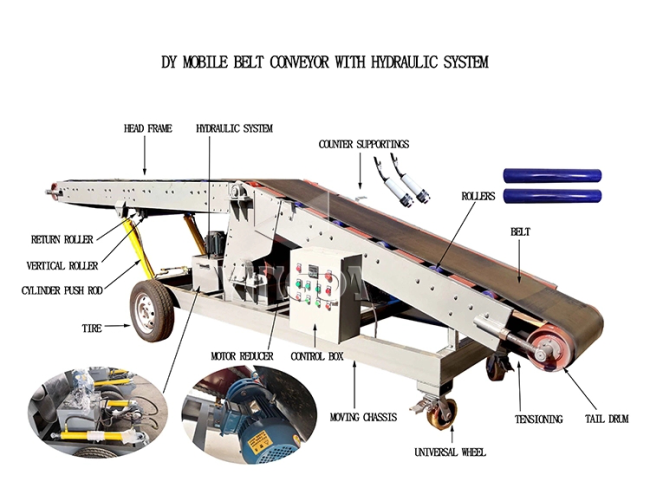

Mobile belt conveyor consists of main body of metal frame, pulleys, rollers, belt, motor, reducer and control pannel, hydraulic system, etc.

Driving mode: gear motor or electric roller.

Belt material: rubber, plastics, PVC, PU or other materials.

Frame material: carbon steel, stainless steel, or aluminum.


Main Parameters


Main Advantages

1. Simple structure and easy installation.

2. Lifting height can be adjusted to meet the different height requirements, which makes the equipment suitable for more different occasions, so as to avoid unnecessary equipment procurement, and help to save costs.

3. Low rate of breakdown and adapt to different use condition.

4. Various design form can meet different industries.

5. Easy move with special wheels.

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.


Field Usage
