Large Capacity Strong Industrial Belt Conveyor Systems For Gravel Cement Industry
Large Capacity Strong Belt Conveyor Systems For Gravel Cement Industry
Product Description
Large Capacity Strong Belt Conveyor is a kind of constantly conveying machine, widely used in industry. It can be applied to conveying various bulk material or packed materials, like particle, powder of 0.5~2.5t/m³ density, also to goods of pieces or packages. It can be used with other conveying machine. It has lots of advantages of large throughput, low operating cost, wide range of application. With simple structure, it is safe and easy maintaining, which can be widely used in flour mill, feed processing mill, oil and fats mill, starch mill, mining, cement, construction and chemicals, grain storage, etc.
Main Parameters
| Belt width(mm) | Belt speed(m/s) | Conveying capacity(m³/h) | Motor Power(kw) | |
| Groove type | Flat type | |||
| 500 | 0.8-2.5 | 78-232 | 41-125 | 1.5-30 |
| 650 | 0.8-2.5 | 131-391 | 67-211 | 1.5-40 |
| 800 | 1.0-3.15 | 278-824 | 118-350 | 1.5-75 |
| 1000 | 1.0-3.15 | 435-1233 | 230-546 | 3-100 |
| 1200 | 1.0-4.0 | 655-2202 | 345-821 | 4-185 |
| 1400 | 1.0-4.0 | 891-2996 | 469-1117 | 4-185 |
Main Features
1. Belt Conveyors can work at the ambient temperature between - 10 ℃ and 40 ℃.
2. The belt will be chosen reasonably on the basis of the different temperature of the materials. It must use heat-resisting type belt when conveying higher temperature of the material.
3. Economical and high efficiency.
4. Convenient and reliable operation.
5. Stable transmission.
6. Large throughput.
Application
Large Capacity Strong Belt Conveyor is suitable for conveying grain, fertilizer, gravel, cement, coal, sand, clay, wood chips, etc. which with a block size of not more than 550mm.
Details Show

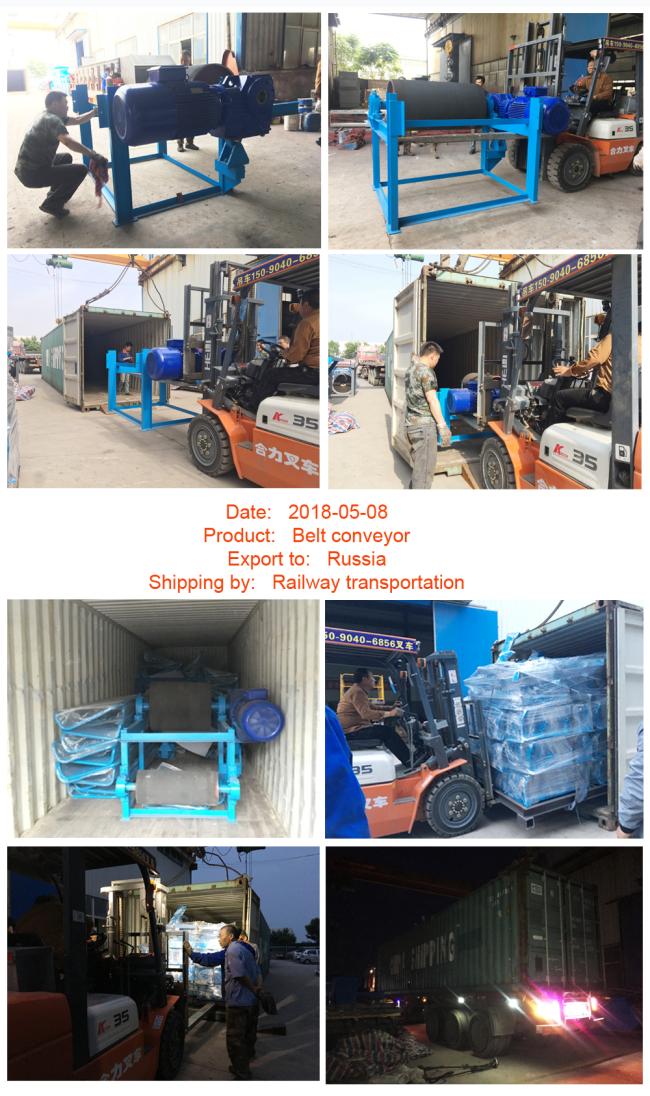

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
- Motor and gearbox packed in wooden cases.
- Belt and other parts packed in pallet.
- Frame packed with fabric.
Field Usage
