High Efficiency Industrial Belt Conveyor For Truck Container Loading And Unloading
High Efficiency Telescopic Belt Conveyors For Truck Container Loading and Unloading
Product Description
High Efficiency Telescopic Belt Conveyors is mainly used for loading and unloading container trucks. It is widely used in bagged products, logistics distribution centers, postal express tires and other industries, it could be freely adjusted the working length in need during the working time. The height of extension end could be adjusted as well to match other sections of package loader. The bidirectional working allows the automatic loading and unloading of material production, and package transferring.
Main Parameters
| Type | Section Number | Fixed Length (mm) | Extended Length (mm) | Total Length (mm) | Belt Width (mm) |
| B-2-4/3-G | 2 | 4000 | 3000 | 7000 | 600/800 |
| A-3-5/7-G | 3 | 5000 | 7000 | 12000 | |
| A-3-5.4/6.6-G | 3 | 5400 | 6600 | 12000 | |
| A-3-6/8.6-G | 3 | 6000 | 8600 | 14600 | |
| B-3-4/5-G | 3 | 4000 | 5000 | 9000 | |
| B-3-9.5/12-G | 3 | 9500 | 12000 | 21500 | |
| A-4-5/10-G | 4 | 5000 | 10000 | 15000 | |
| XA-4-6/12.6-G | 4 | 6000 | 12600 | 18600 | |
| XA-4-7/14.6-G | 4 | 7000 | 14600 | 21600 | |
| B-4-7.5/16-G | 4 | 7500 | 16000 | 23500 | |
| XB-5-6/16-G | 5 | 6000 | 16000 | 22000 | |
| XB-5-7/17.5-G | 5 | 7000 | 17500 | 24500 | |
| XB-5-7.5/21-G | 5 | 7500 | 21000 | 28500 | |
| XB-5-10/20-G | 5 | 10000 | 20000 | 30000 |
Main Features
1.It is applicable to logistics express, port, dock, station, airport, warehouse, mine, post and telecommunications, electrical appliances, light industry, food, tobacco and other industries.
2.It can meet the delivery of goods in various venues because of variety of models and specifications.
3.Belt speed can be adjusted according to demand and the adjustment range is wide, so it can meet the needs of all kinds of strength conveying .
4.Simple operation, suitable for long distance goods transportation, time saving, so it can effectively reduce the input of human resources.
5.Stable equipment performance, low maintenance cost, equipped with an independent access port, easy maintenance.
6.Various customization functions are available: highly customized, lifting system, height and length hump, DWS system, etc.
7.Home delivery, professional team installation, and on-site training & operation.
8.The body color can be customized.

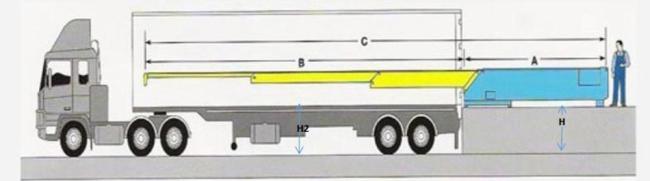

Explanation
| Part A | Part B | Part H | Part H2 | ||
| Fixed length | Extended length | loading plat height | Height between the earth and plat of the truck | ||
| Specfication | Section |
Part A (length M) |
Part B (length M) |
Weight (Estimated) |
Min height (conveyor) |
| G-A-3-5/7 | 3 | 5m | 7m | 1.8t | 650mm |
| Belt Width(mm) | Voltage | Belt | Motor | Electrical element | Package |
| 600/800/1000 |
220/380V 3-phase |
Ammerral PVK | SEW/NORD | Shneider | Wooden case |

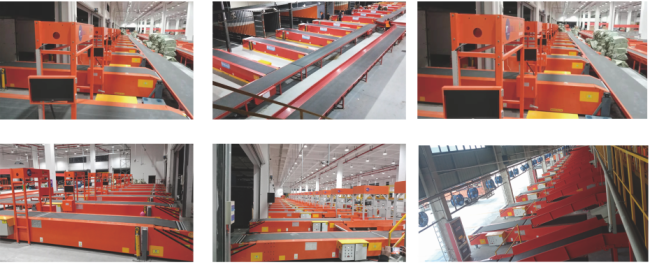

Customer Case
