Large Capacity Ring Chain Bucket Elevator For Bulk Materials Heat Resistant
Large Capacity Vertical Conveyor Ring-chain Bucket Elevator For Bulk Materials
Product Description
Large Capacity Vertical Conveyor Ring-chain Bucket Elevator apply to transporting materials vertically such as powder, pellet, particulate, even if with more surface friction, for example food, coal, cement, granular ore, etc. It is widely used in the cement industry, chemical industry, power plant, grain storage and other industries, etc. The lifting height is up to 40 meters. Our company manufactures a variety of bucket elevators to meet your different demands.
Main Parameters
| Model | TH630 | |
| Bucket mode | Zh | Sh |
| Conveying capacity, m³/h | 68 | 110 |
| Bucket volume, L | 14.6 | 23.6 |
| Bucket width, mm | 630 | |
| Bucket distance, mm | 688 | |
| Bucket speed, m/s | 1.5 | |
| Specification of chain | φ22*86 | |
| Sprocket pitch, mm | 900 | |
| Max. feed size, mm | 75 | |
| Max. hoisting height, m | 40 | |
Main Features
1. It’s completely enclosed, which can prevent dust from leakage, not be affected by the weather.
2. The hoisting height is up to 40 meters.
3. The temperature of transported materials can reach up to 250°C.
4. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.
5. Long service life, it seldom occurs extrusion and collision events.
6. The design of ring chain can effectively prevent the chain from slipping and improve delivery efficiency.
Details Show

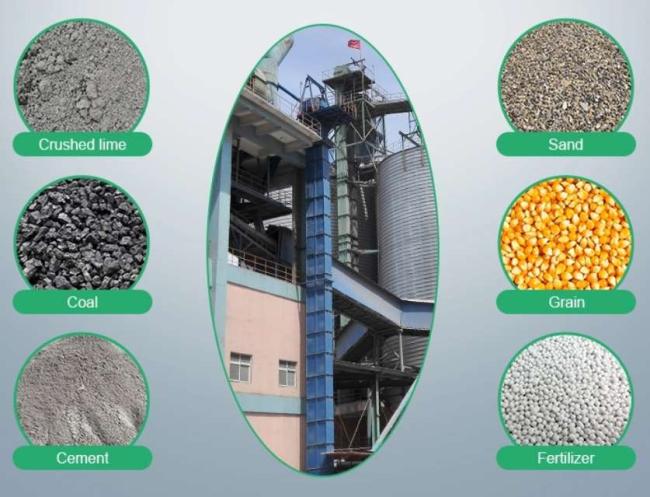

Application
Project Site
