Mobile Stainless Steel Screw Conveyor , Inclined Screw Conveyor For Salt Chemical
Mobile Stainless Steel Inclined Screw Conveyor Feeder For Salt Chemical
Product Description
Inclined screw conveyor feeder are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors can horizontal transport materials, also it can slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, which depends on the angle. And Mobile Stainless Steel Inclined Screw Conveyor Feeder is wildly used in food, chemical, grain storage, fertilizer industries.
Main Parameters
| Model | Item | |||||||
|
Screw diameter (mm) |
Conveying distance(mm) |
Screw speed (r/min) |
largest feed ability (m³/h) |
Motor power (kw) |
Supporting reducer |
Material max size (mm) |
Reference weight (t) |
|
| SID1215 | 120 | 1500 | 20-80 | 1.4 | 1.1 | ZQ250 | 20 | 0.65 |
| SID1225 | 2500 | 0.87 | ||||||
| SID1615 | 160 | 1500 | 15-75 | 4.8 | 1.5 | ZQ250 | 25 | 0.78 |
| SID1625 | 2500 | 1.03 | ||||||
| SID2015 | 200 | 1500 | 15-60 | 7.4 | 2.2 | ZQ250 | 30 | 0.92 |
| SID2025 | 2500 | 1.23 | ||||||
| SID3015 | 300 | 1500 | 10-45 | 21.2 | 3 | ZQ250 | 40 | 1.10 |
| SID3025 | 2500 | 1.38 | ||||||
Main Features
1. Compact structure, small cross section, light weight.
2. Excellent seal performance and transport efficiency.
3. Flexible technological arrangement, easy to be installed, dismantled and moved, and safe operation.
4. It has the characteristics of high temperature resistance and corrosion resistance, and has a longer service life under the premise of ensuring food safety.
5.Hopper is separated from twisting shaft.Structure is reasonable and easy to loading and unloading.
6.Characteristic dustproof, bearing won’t be polluted by the dust and powder.
7.It is easy to clean the scrapped material.
Application
Mobile Stainless Steel Inclined Screw Conveyor Feeder is wildly used in food, chemical, grain storage, fertilizer industries.

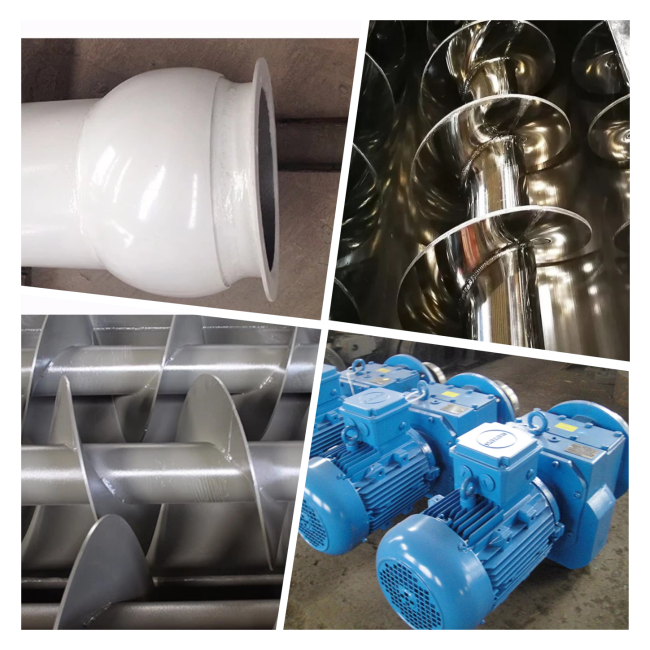

Details Show
