Coal Dewatering Vibrating Screen Machine Large Capacity 1~6 Layers
Large Capacity Linear Vibrating Screen for Coal Dewatering
Product Description
Large Capacity Linear Vibrating Screen uses the vibration motor excitation as the source of vibration power, so that the material is thrown on the screen and moves forward linearly. The material enters the feed port of the screening machine evenly from the feeder, and the number is generated through the multi-layer screen. The upper and lower sieve materials of various specifications are discharged from their respective outlets. With low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust overflow, automatic discharge, more suitable for assembly line operations.
Main Parameters
| Model | Screen Specification (mm) | Layers |
Mesh Size (mm) |
Particle Size (mm) |
Vibrating Frequency (r/min) |
Double Amplitude (mm) |
Power (KW) |
Vibrating Direction Angle (°) |
| ZS525 | 500×2500 | 1--6 | 0.074-10 | 0.06-15 | 960, 1450 | 4--8 | 2×0.4, 2×0.75 | 45-60 |
| ZS1020 | 1000×2000 | 1--6 | 0.074-10 | 0.07-20 | 960 | 4--8 | 2×0.75, 2×1.5 | 45-60 |
| ZS1025 | 1000×2500 | 1--6 | 0.074-10 | 0.07-15 | 960,1450 | 5--8 | 2×0.4, 2×0.75 | 45-60 |
| ZS830 | 800×3000 | 1--6 | 0.074-10 | 0.1-20 | 960 | 6--8 | 2×0.75, 2×1.5 | 45-60 |
| ZS1030 | 1000×3000 | 1--6 | 0.074-10 | 0.1-20 | 960 | 6--8 | 2×0.75, 2×1.5 | 45-60 |
| ZS1224 | 1200×2400 | 1--3 | 0.074-10 | 0.1-23 | 960 | 6--8 | 2×0.75, 2×1.5 | 45-60 |
| ZS1230 | 1200×3000 | 1--3 | 0.074-10 | 0.1-23 | 960 | 6--8 | 2×1.5 | 45-60 |
Working Principle
Two vibration motors installed on the equipment which working in simultaneously and reverse rotation. The screen box supported by four springs produce reciprocating linear motion under the vibration force generated by motors. When the vertical component of the vibration acceleration N is greater than acceleration due to gravity G, material in the tank was thrown up, press forward to jump along parabolic path. Each vibration of tank, the material would be thrown up once. In the process of encounter with the screen, the material which is smaller than screen mesh can go through, so as to achieve classification purpose.
Main Features
1. High sieving efficiency, high utilization ratio of screen, the bouncing balls which set up under the screen eliminates mesh blockage, improve screen accuracy.
2. Continuous working.
3. Fully enclosed structure to avoids dust overflow, to reach the request of sanitation.
4. Rubber springs can be used according to customers’ requests, which would greatly reduce running noise, improve the working environment.
5. Simple and reasonable tensioning mode of screen, easy to replace.
6. The screen frame can be changed according to different mesh numbers, for saving running cost.
Application
ZS series linear vibrating screen is used in metallurgy, building, chemical, refractory, cement, ceramics, food and other industries.
Product Details

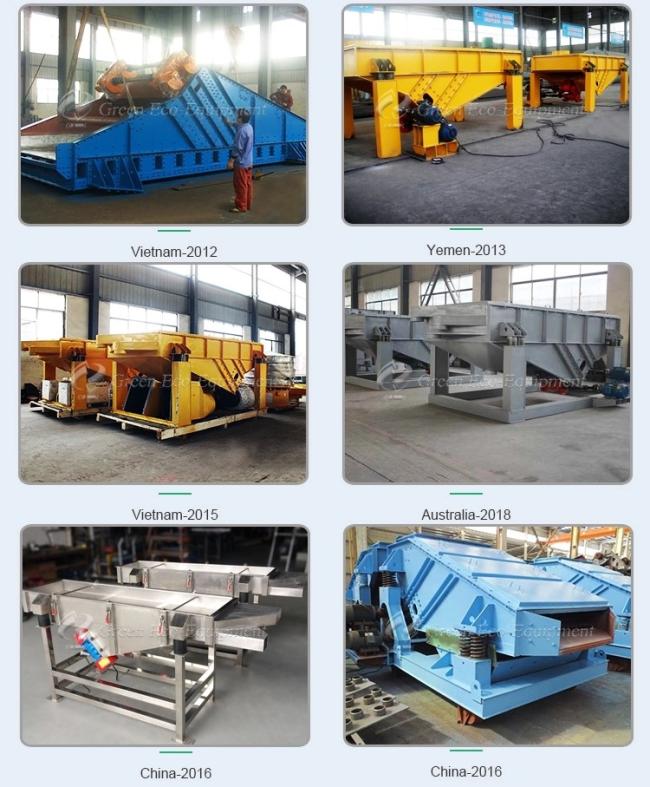

Customer Case
