Industrial Automatic Linear Vibrating Screen Machine For Cement Building Materials

High Quality Linear Vibrating Screen Feed Processing Machine For Manufacturing Industry

Product Description

ZS type linear vibrating screen uses vibration motor as vibration source, the materials is rose and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.

Main Parameters

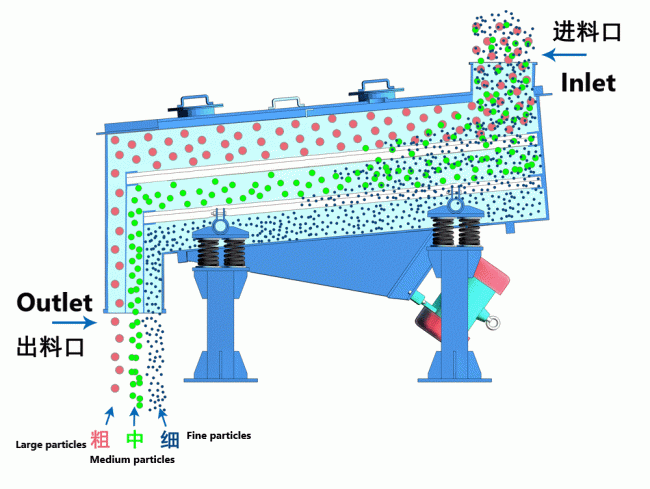

Working Principle

The linear vibrating screen is driven by double exciters. When the two exciters are synchronized and reversely rotated, the excitation force generated by the eccentric block cancels each other in the direction parallel to the motor axis and in the direction perpendicular to the motor axis The folding is a combined force, so the trajectory of the screen machine is a straight line. The two motor shafts have an inclination angle with respect to the screen surface. Under the combined action of the exciting force and the gravity of the material, the material is thrown up and jumped forward in a linear motion on the screen surface, thereby achieving the purpose of screening and grading the material. It can be used for automatic operation in the assembly line. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance, and no dust overflow in the fully enclosed structure. The highest screen size is 400 meshes, which can screen out 6 kinds of materials with different particle sizes.

Main Advantages

1. Low energy consumption, high efficiency.
2. Simple structure, easy to maintenance.
3. Sieving accuracy can reach to 400 mesh, 6 layers at most.
4. Full closed structure, no dust flying.

Application

ZS series linear vibrating screen is used in metallurgy, building, chemical, refractory, cement, ceramics, food and other industries.

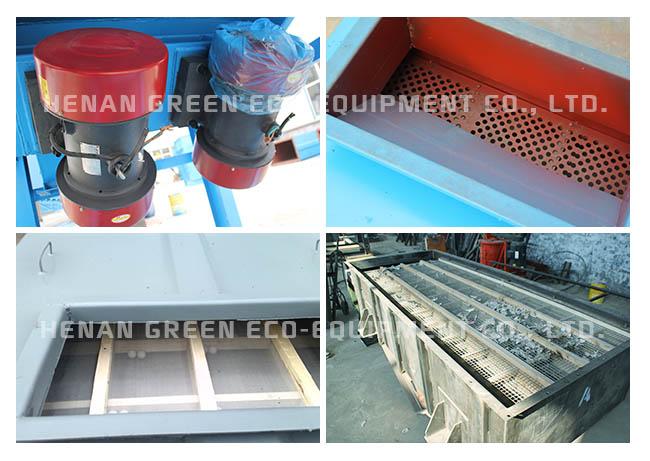

Product Details

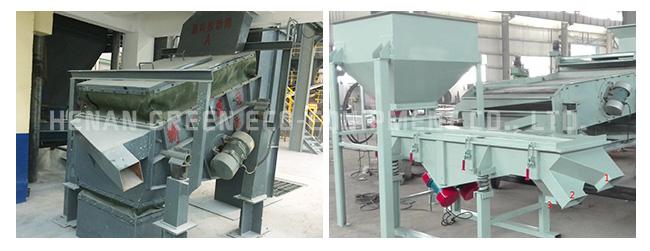

Field Usage
