Shaftless Rotary Trommel Screen Machine For Woodchips / Compost / Urban Waste
OEM Design Shaftless Trommel Screen Machine For Compost/Mining
Product Description
The shaftless trommel screen is suitable for screening wood chips, straw,all kinds of garbage, and wet and easily blocked materials. They have good screening effects on these materials, and the shaftless drum screen The output is very large and can meet the needs of most customers. The trommel screen is provided with a self-cleaning device. The transmission mode is divided into three types: large and small gear drive, chain drive of sprocket wheel, friction drive of support roller. There are various kinds of screens such as: manganese wire woven mesh, stell plate perforated mesh, stell welding mesh, stainless stell screen, ect.are available for customers to select. Special circumstances can be specifically formulated. The shaftless trommel machine is an important screening device in the waste treatment line.
Main Parameters
| Model | Cylinder size | Slant angle | Drum speed(r/min) | Mesh range(mm) | Maximum feed grain(mm) | Capacity(m³/h) | Power(kw) | |
| Mesh (2mm) | Mesh (30mm) | |||||||
| YTS1030 | Φ1x3 | 5-7° | 22.5 | 2-30 | 60 | 10 | 60 | 4 |
| YTS1040 | Φ1x4 | 5-7° | 25 | 2-30 | 60 | 11 | 80 | 4 |
| YTS1230 | Φ1.2x3 | 5-7° | 20 | 2-30 | 70 | 12 | 100 | 5.5 |
| YTS1240 | Φ1.2x4 | 5-7° | 20 | 2-30 | 70 | 14 | 120 | 5.5 |
| YTS1250 | Φ1.2x5 | 5-7° | 20 | 2-30 | 70 | 15 | 140 | 5.5 |
| YTS1530 | Φ1.5x3 | 5-7° | 17 | 2-30 | 80 | 18 | 150 | 5.5 |
| YTS1540 | Φ1.5x4 | 5-7° | 17 | 2-30 | 80 | 18 | 150 | 7.5 |
| YTS1550 | Φ1.5x5 | 5-7° | 17 | 2-30 | 80 | 20 | 180 | 11 |
| YTS1560 | Φ1.5x6 | 5-7° | 17 | 2-30 | 80 | 22 | 200 | 11 |
| YTS2040 | Φ2x4 | 5-7° | 12 | 5-60 | 90 | 25 | 250 | 15 |
| YTS2050 | Φ2x5 | 5-7° | 12 | 5-60 | 90 | 30 | 300 | 15 |
| YTS2060 | Φ2x6 | 5-7° | 12 | 5-60 | 90 | 35 | 350 | 18.5 |
Application
1. Used for grading large and small stones in the stone yard, and separating soil and stone powder.
2. Separated from sand and gravel in sand and stone yard.
3. Used for separation and coal washing in coal mine industry (component of coal washing machinery)
4. In the chemical industry and mineral processing industry, it is used to classify large and small lumps and separate powdery substances.
5. Drum screen sand machine is suitable for large and small construction sites, gravel yards, coal yards, coke plants, mixing stations, metal ore powder, smelting, construction mortar, etc.
Advantages
1.Large processing capacity, strong sorting ability, non-blocking sieve hole, accurate particle size sorting.
2.Fully sealed structure, no dust, no pollution.
3.The inside of the trommel screen is equipped with bag-breaking props, which is reliable and has no winding.
4.Screen replacement convenience.
5.The size of the screen can be used according to customer requirements, with high screening efficiency, long service life and low maintenance cost.

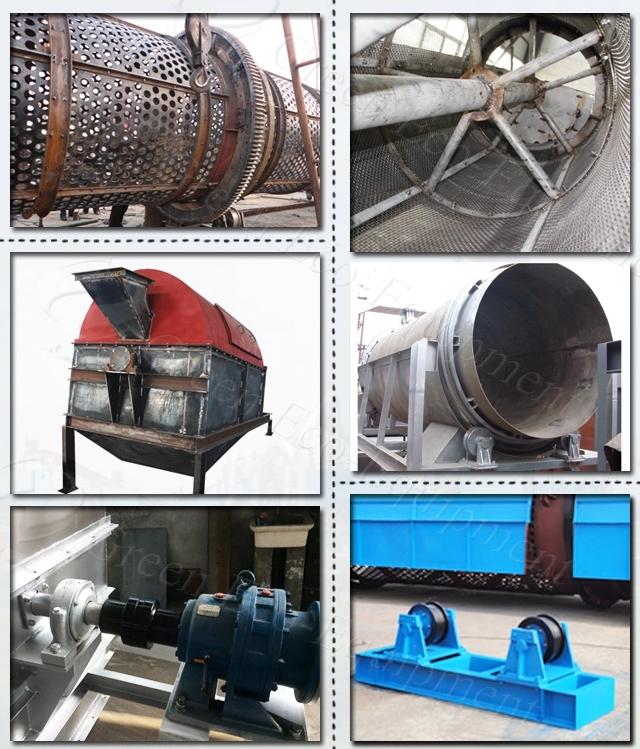

Details Show
Field Usage
