Rotary Vibrating Screen / Sieve / Separator For Clay / Powder / Grain

High Quality Rotary Vibrating Screen/Sieve/Separator For Clay/Powder/Grain

Product Description

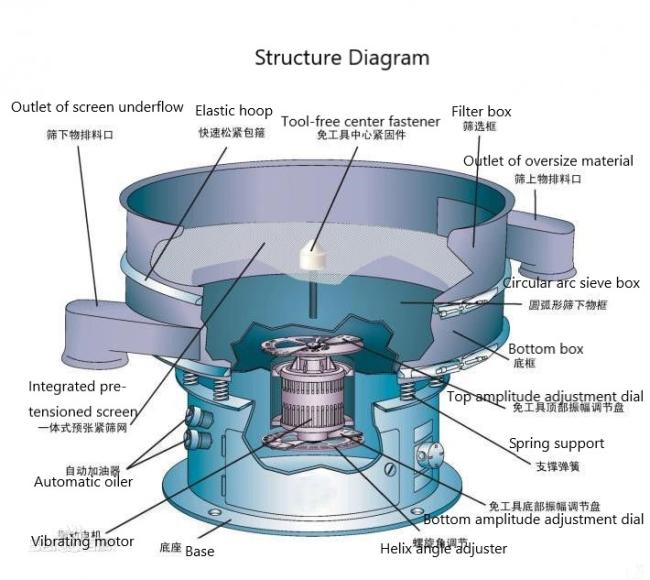

Rotary vibrating sieve, also called vibration sieve or vibro sifter machine, is a high-precision fine powder screening machine with low noise and high efficiency. It can screen powder, granules, materials with small water content and slurry. Wide range of applications, such as chemical industry, metal, mining, pharmaceuticals, environmental protection and so on. It composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove.

Main Parameters

Main Features

1. Small size, light weight, easy to move, the direction of the discharge port can be adjusted arbitrarily, coarse and fine materials are automatically discharged, and can be automated or manual operations.
2. High sieving accuracy and high efficiency, any powder, granules, mucus can be used.
3. The screen is not clogged, the powder is not flying, the finest screening can be up to 500 mesh (28 microns), and the finest filtering can be up to 5 microns.
4. Unique grid design (son-mother type), long-term use of screen, easy screen change, only 3-5 minutes, simple operation and easy cleaning.
5. No mechanical action, easy maintenance, can be used in single or multiple layers, and parts in contact with materials are made of stainless steel (except for medical use).

Working Principle

After the rotary vibrating screen is started, its power device is an eccentric block with different phases at the upper and lower ends of the vibration motor. Due to the high-speed placement, a compound inertial force is generated. Under the effect of continuous reciprocating movement, the screen surface is driven to vibrate periodically, so that the materials on the screen surface move directionally and vigorously with the screen box. During this time, the material smaller than the aperture of the screen surface falls to the lower layer through the screen hole It becomes a sieve, and the material larger than the aperture of the sieve surface is discharged from the discharge port after continuous jumping movement, and finally the sieving work is completed. The trajectory of the vibrating body of the rotary vibrating screen is a complex three-dimensional curve. The projection of this curve on the horizontal plane is circular, and the projections on the two vertical planes are two identical ellipses. In actual application, by adjusting the relative phases of the eccentric blocks at the upper and lower ends of the vibration motor, the movement trajectory of the material on the screen surface can be changed, so as to achieve different screening operations.

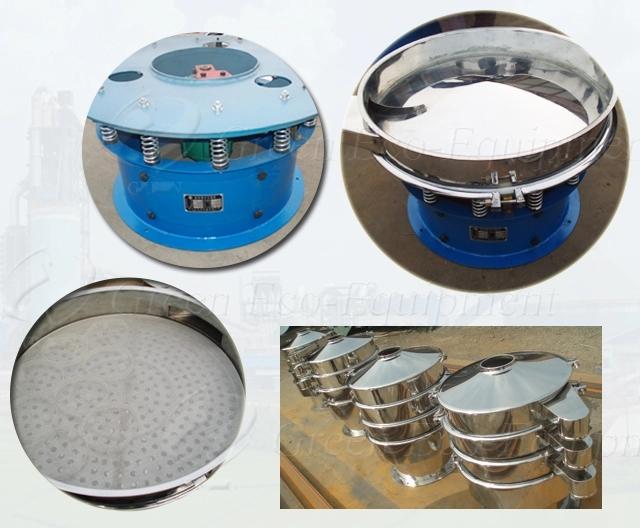

Details Show

Packing and Shipping

Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

Customer Case
