Large Capacity Air Slide Feed Conveyor For Powdered Coal / Fly Ash
Large Capacity Low Power Consumption Air Slide Conveyor For Powdered Coal/Fly Ash
Product Description
The XZ series air slide conveyor is designed to convey bulk powders from silos or storage compartments into a pneumatic conveying processing system. These provide a convenient and easily controllable method of conveying that can incorporate bends and multiple discharge points if necessary.
The Air Slide System consists of a rectangular chamber separated by a permeable cloth. The chamber is inclined at a very slight angle. Compressed air is injected into the lower chamber which then permeates through the media and "fluidises" the product. The product then behaves like a fluid and "flows" down the length of the chamber while the excess air is vented to a dust collector. Normally the inclined angle is 4°,6°,8°,10°,12°.
Main Parameters
| Model | XZ250 | XZ315 | XZ400 | XZ500 | XZ630 | XZ800 | |
| Tub length | Standard section(mm) | 2000 | |||||
| Non-Standard section(mm) | <2000 | ||||||
| Need air pressure(kpa) | 4-4.5 | ||||||
| Need air quantity(m3/min) | 1-4 | ||||||
|
Breath layer |
Material | Synthetic fiber | |||||
| Thickness(mm) | 4-6 | ||||||
| rating of temperature(°C) | 150 | ||||||
| Radial fracture strength(N/cm) | 4700 | ||||||
| Resistance(Pa) | 800-1200(under2 m3/ m2.min ) | ||||||
Main Features
1. Simple structure and easy in installation and maintenance.
2. Specially design for convey high temperature material. choose heat resistant steel as the main parts.
3. Can handle high temperature big bulk density materials, which the max. temperature can reach to 1200℃.
4. Multiple points of load and unload.
5. Improve worker’s labor condition notably and prevent environment.
6. Be widely used in in metallurgy and chemical industries
Details Show

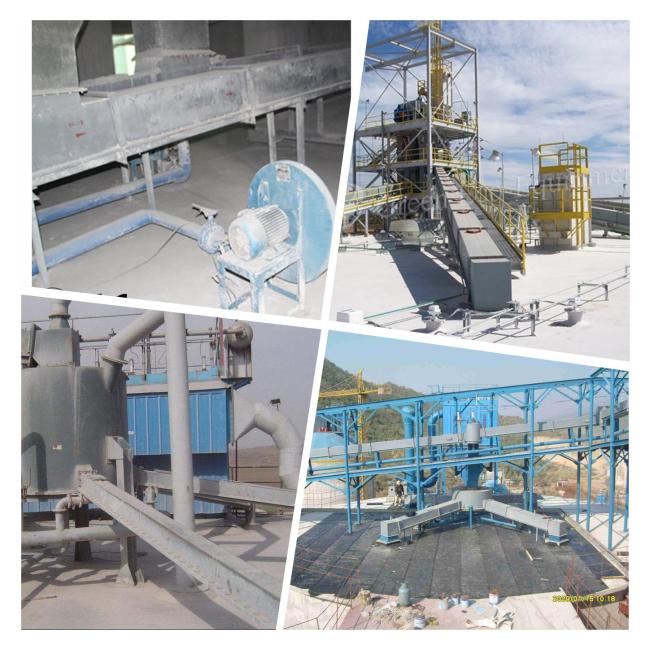

Customer Case
