Professional Powder Rotary Feeder Valve Speed Adjustable Carbon Steel
Professional Speed Adjustable Rigid Impeller Feeder For Powder/Granular Material
Product Description
The rigid impeller feeder uses a rotating impeller with a compartment to transfer powder and small granular materials from the upper storage bin or hopper to the lower discharge port for uniform feeding or shifting. material. When using constant speed feeding, the machine can achieve uniform feeding. If the speed control motor is used, the speed of the impeller can be adjusted and changed at any time as needed to achieve the adjustment of the feed amount. The rigid impeller feeders produced by our factory are divided into two types. The JL type is non-speed-regulating type, equipped with cycloidal pinwheel reducer, JLT is speed-adjusting type, equipped with slip speed regulating motor and ZQ series reducer. Its structure is simple, the performance is stable, and the operation and maintenance are convenient. It is an ideal matching part in the conveying, unloading and batching system.
Main Parameters
| Model | JLT200 | JLT300 | JLT400 | JLT500 | JLT630 | JLT800 | JLT1000 |
| Impeller Size(mm) | Φ200×200 | Φ300×300 | Φ400×400 | Φ500×500 | Φ630×630 | Φ800×800 | Φ1000×1000 |
| Volume Per Rotation(m³/rpm) | 0.005 | 0.018 | 0.045 | 0.078 | |||
| Speed(rpm) | 12~45 | 14~42 | 15~42 | 15~40 | 10~35 | 10~35 | 10~35 |
| Max Capacity(m³/h) | 10 | 30 | 77 | 153 | 148 | 63 | 70 |
| Min Capacity(m³/h) | 3.5 | 10 | 20 | 40 | 50 | 63 | 70 |
| Motor Type | YCT132-4A | YCT132-4B | YCT160-4B | YCT180-4A | YCT200-4A | YCT200-4B | YCT225-4A |
| Power(kw) | 1.1 | 1.5 | 3 | 4 | 5.5 | 7.5 | 11 |
| Reducer Type | ZQ25 | ZQ25 | ZQ25 | ZQ35 | ZQ35 | ZQ40 | ZQ50 |
| Max Particle(mm) | 30 | 45 | 50 | 60 | 75 | 80 | 110 |
| Coupling | Φ120 | Φ120 | Φ140 | Φ160 | Φ160 | Φ160 | Φ180 |
Main Features
1. The rigid impeller feeder has the characteristics of adjustable feeding amount, and the speed reducer and motor are supported separately, which obviously reduces the bearing capacity of the impeller feeder.
2. Round inlet and square inlet or based on the customer's needs.
3. Powder rotary valve equipped with general motor and variable speed motor, to achieve uniform discharge rate or variable speed discharge rate.
4. Good sealing performance, no blocking and no adherence.
5. Wide range of application.
Application
Rigid impeller feeder is widely used for nuts, almond, sunflower seed, cotton seed, grain cereals, chestnut, coffee, grain, sugar, spice, cement, calcite, glass powder, marble powder, plastic pellets, sawdust, coal etc.

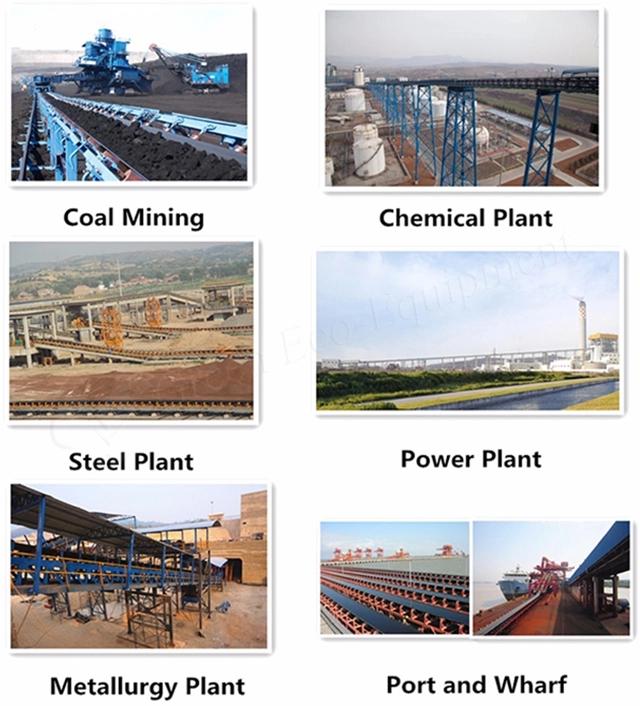

Customer Case
