Adjustable Rotation Speed Sludge Screw Conveyor Small Cross Section
Adjustable Rotation Speed Sludge Screw Conveyor Small Cross Section
Product Description
Tube screw conveyor is a major industrial and agricultural departments mechanization transportation job unit, can make the transport working to reduce labor intensity and improve the work efficiency. Applicable to various industries, such as building materials, chemical industry, electric power, metallurgy, coal, food and other industries,
applicable to horizontal or oblique conveying powder, granulated and small lump materials, such as coal, ash,
slag, cement, food, etc.
Main Parameters
| Model | Item | |||||||
|
Screw diameter (mm) |
Conveying distance(mm) |
Screw speed (r/min) |
largest feed ability (m³/h) |
Motor power (kw) |
Supporting reducer |
Material max size (mm) |
Reference weight (t) |
|
| SID1215 | 120 | 1500 | 20-80 | 1.4 | 1.1 | ZQ250 | 20 | 0.65 |
| SID1225 | 2500 | 0.87 | ||||||
| SID1615 | 160 | 1500 | 15-75 | 4.8 | 1.5 | ZQ250 | 25 | 0.78 |
| SID1625 | 2500 | 1.03 | ||||||
| SID2015 | 200 | 1500 | 15-60 | 7.4 | 2.2 | ZQ250 | 30 | 0.92 |
| SID2025 | 2500 | 1.23 | ||||||
| SID3015 | 300 | 1500 | 10-45 | 21.2 | 3 | ZQ250 | 40 | 1.10 |
| SID3025 | 2500 | 1.38 | ||||||
Advantages
1. Compact structure, small cross section, light weight;
2. Good seal performance, good transportation efficiency;
3. Flexible technological arrangement, easy to be installed , dismantled and moved, safe operation.
Application
Single pipe screw feeder is suitable for continuously conveying loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

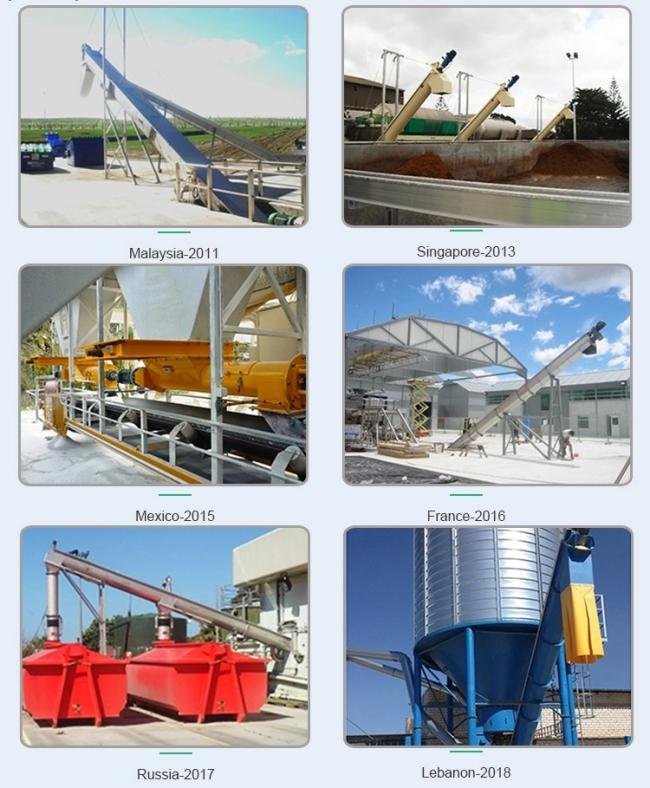

Customer Case
