High Strength Feed Screw Conveyor Machine For Building Materials
High Strength Feed Screw Conveyor Machine For Building Materials
Product Description

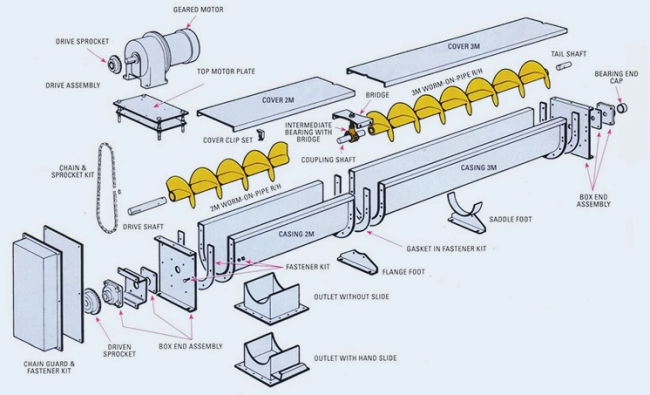

Screw Conveyor is a continuous conveying equipment which is used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device,etc. Combinations of single or multiple screw devices can be integrated with each other to meet specific field requirements. Trough type tube with multiple inlet and outlet, and the maximum inclination angle is 20°. The rotation of the blade is started by the motor, and then the material is transported along the screw to the outlet.
Application:
The shaft screw conveyor is widely used for building materials/power station industry. This conveyor was special used to transport large capacity material.
Features:
1. The motor reducer could be installed on the top or the bottom.
2. Conveyor has big transport capacity, long distance available.
3. Stable and controllable start, continuous and highly efficient operation.
4. The conveying could be the level or the inclined.
5. The blade could be entity spiral
Main Parameters
| LS type | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||
| Screw diameter(mm) | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| Sc Screw pitch(mm) | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 |
| Rotate speed(r/min) | 60 | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 35 |
| Capacity (m³/h) | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 |
| Pd1=10m(kw) Power | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 5.1 | 8.6 | 12 | 16 |
| Pd1=30m(kw) Power | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 |
Why choose us?
1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a. Provide installation plan guidance.
b. 2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

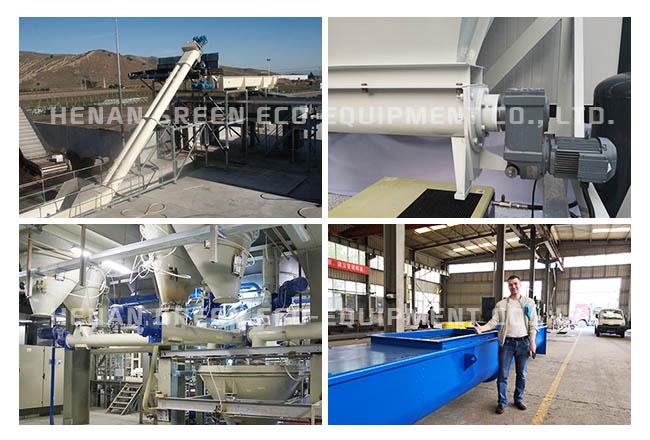

Field Usage
