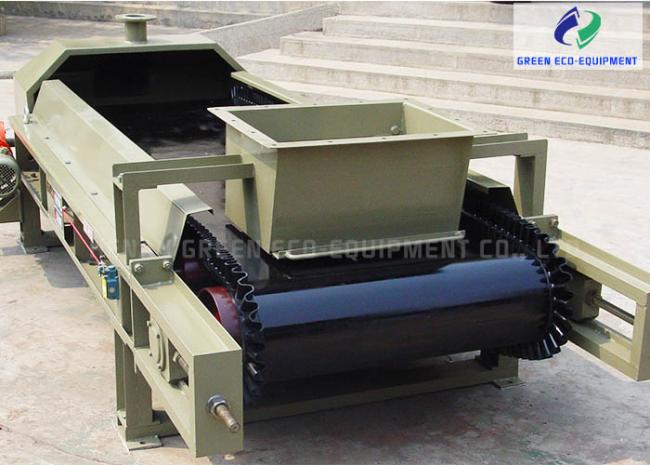

High Capacity Weighing Belt Conveyor Variable Frequency Motor Type
High Capacity Weighing Belt Conveyor Variable Frequency Motor Type
Product Description
Conveyor belt weigh is used for food, medical, chemical and mining and cement plant etc. The conveyor belt weigh with high precision weighing, easy operation, fully automatic and so on, it is not only can be control by itself, but also can be connected by remote control. The conveyor belt weigh is equipping with frequency conversion motor and frequency regulator, the speed of belt will be adjusted automaticallyaccording to the actual capacity that you set up. Conveyor belt weigh is used for food, medical, chemical and mining and cement plant etc. The conveyor belt weigh with high precision weighing, easy operation, fully automatic and so on, it is not only can be control by itself, but also can be connected by remote control. The conveyor belt weigh is equipping with frequency conversion motor and frequency regulator, the speed of belt will be adjusted automaticallyaccording to the actual capacity that you set up.
Main Features
1. High precision weighing, the measurement precision: less than ±0.5%.
2. Large weighing range: 0-500t/h (Capacity).
3. The belt weigh feeder is equipped with sidewall rubber belt, to avoid the material spillage.
4. Local control and remote control (optional).
5. Fully sealed (optional).
6. Easy operation and maintenance (We will supply details operating instructions in English).
Main Parameters
| Model No. | Belt width (mm) |
Length (m) |
Accuracy (%) |
Capacity (t/h) |
Allowed angle |
Sensor (unit) |
| 05 | 500 | 1.5-4 | ±0.5 | 15 | ≤6° | 2-4 |
| 06 | 650 | 1.5-4 | ±0.5 | 30 | ≤6° | 2-4 |
| 08 | 800 | 1.5-4 | ±0.5 | 80 | ≤6°° | 2-4 |
| 10 | 1000 | 1.5-4 | ±0.5 | 150 | ≤6° | 2-4 |
| 12 | 1200 | 1.5-4 | ±0.5 | 220 | ≤6° | 2-4 |
| 14 | 1400 | 1.5-4 | ±0.5 | 300 | ≤6° | 2-4 |
| 16 | 1600 | 1.5-4 | ±0.5 | 500 | ≤6° | 2-4 |
| 18 | 1800 | 1.5-4 | ±0.5 | 800 | ≤6° | 2-4 |
| 20 | 2000 | 1.5-4 | ±0.5 | 1000 | ≤6° | 2-4 |
Why choose us?
1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a. Provide installation plan guidance.
b. 2 hours for after-sales response, 24 hours for solution.
