Stone Crushing Plant Chain 800t/H Apron Feeder
Large Capacity Stone Crushing Plant Chain Apron Plate Feeder For Crusher
Product description
Heavy Duty Apron Feeder is a large machine that carries large bulk of stone or other materials to Crusher or silo etc.. These machines is known as plate feeders or apron conveyors. Apron feeder machines allow to be automatically controlled the volume and speed. It is mainly used in coal mining, quarry, metal mining, chemical industry, metallurgy, cement factory etc.
It can be installed horizontally or aslant ,but the maximum slant angle couldn’t more than 12 degrees.
Advantages :
1,The apron feeder is widely used for conveying metal ,limestone, gold ore and construction waste ,gypsum etc.,
2,It can bear big pressure under large silo or loader .
3,The speed can be adjusted by frequency conversion control cabinet.
4,Including the feed trough, to prevent the material leakage.
5,Thickness of plate is from 8mm to 20mm.
6,Matched with Such as ABB, Siemens, Flender and SEW etc if required.
7,Can be customized.
Technical Parameters:
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBZ160-9 | 1600 | 9000 | 0.01-0.15 | ≤800 | 500 | 30 | 50000 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.15 | ≤900 | 600 | 37 | 59000 |
| WBZ200-10 | 2000 | 10000 | 0.01-0.15 | ≤1000 | 700 | 37 | 82000 |
| WBZ220-10 | 2200 | 10000 | 0.01-0.15 | ≤1100 | 800 | 45 | 85000 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.15 | ≤1100 | 1000 | 45 | 86000 |
| WBZ240-10 | 2400 | 10000 | 0.01-0.15 | ≤1200 | 1200 | 2x37 | 95000 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.15 | ≤1300 | 1500 | 2x45 | 105000 |
Application

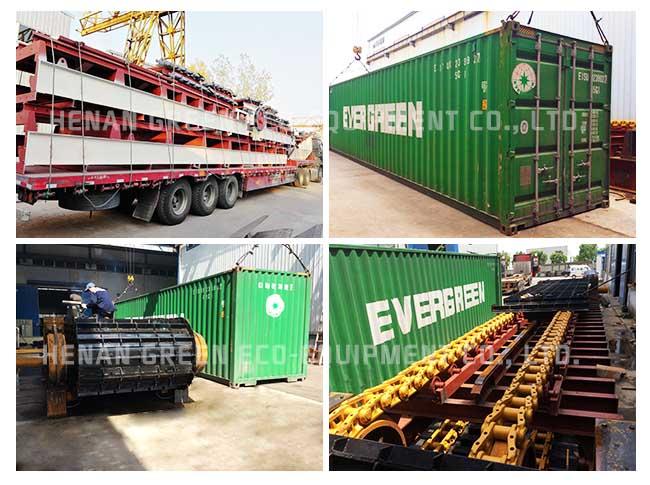

Delivery
