2.0m/S Vertical Cement Sand Bucket Conveyor System
Vertical Elevator Cement Sand Belt Bucket Elevator With High Quality
Product Description
Bucket elevator structure is suitable for vertical conveying of powder, granule and small materials.Bucket elevator has the advantages of simple structure, stable operation, high degree of improvement and long service life.Bucket elevator is widely used in building materials, chemical industry, coal, power, port and other industries in the material transport system.
Application
Bucket Elevator is applicable for vertical lifting of granule material such as corn, food, fodder, plastic and chemical industry, etc.Its used for vertical feeding of granule or small block material.
Main Parameters
| Model | Max feed size(mm) | Capacity(T/H) | Lifting speed(m/s) | Belt width(mm) | Lifiting height(m) |
| TD160 | 25 | 5.4-16 | 1.4 | 200 | <40 |
| TD250 | 35 | 12-35 | 1.6 | 300 | <40 |
| TD315 | 45 | 17-40 | 1.6 | 400 | <40 |
| TD400 | 55 | 24-66 | 1.8 | 500 | <40 |
| TD500 | 60 | 38-92 | 1.8 | 600 | <40 |
| TD630 | 70 | 85-142 | 2 | 700 | <40 |
Main Advantages
1. Bucket elevator has less requirement on materials, features and the bulk. It can lift, the powder, granular and bulk materials.
2. The max lifting capacity is 1000m3/h.
3. Bucket elevator adopts inflow feeding, gravity induced discharge, and use large capacity hopper.
4. The traction parts adopt wear-resistant chains and steel wire belt to extend the service life of the traction parts.
5. Bucket elevator runs smoothly, generally the lifting height is 40m or even higher.

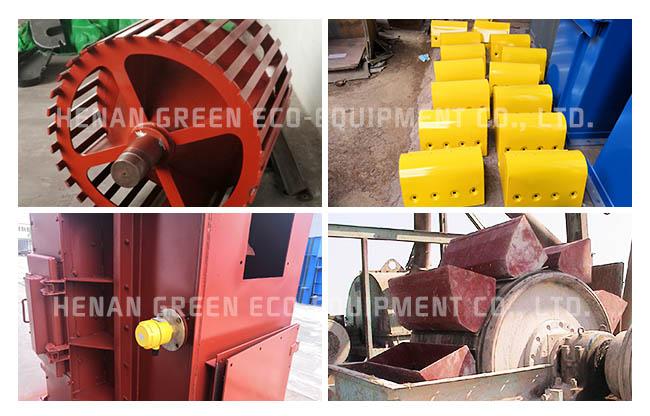

Details Show
