Scraper Submerged Drag Chain Conveyor For Powdery Material
High Quality Scraper Conveyor Drag Chain Conveyor For Powdery Material
Product Description

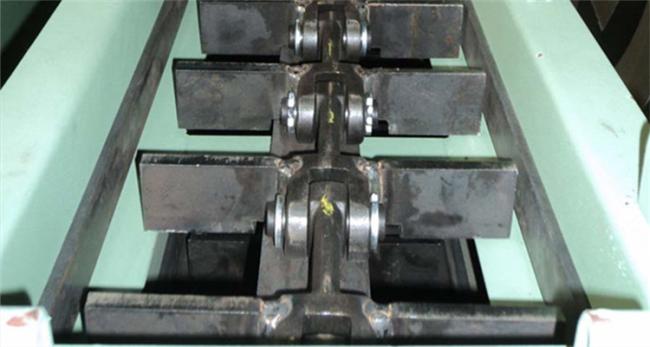

High Quality Scraper Conveyor Drag Chain Conveyor is a bulk material conveying equipment, which is consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By moving the chain, the material in the closed rectangular box can be continuously transported horizontally or slightly tilted.
We can design a suitable power plant bottom slag (dust) conveying system, according to the practical bottom slag reuse and dry slag removal requirement of power plant. MS type drag chain scraper conveyor is also widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, etc.
Main Parameters
| Model | MS20 | MS25 | MS32 | MS40 | MS50 | MS63 | MS80 |
| Trough Width(mm) | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Load-bearing Depth(mm) | 200 | 248 | 288 | 370 | 476 | 476 | 476 |
| Chain Speed(m/s) | 0.05~0.1 | 0.06~0.12 | 0.08~0.016 | ||||
| Capacity(t/h) | 3.15~6.3 | 5~10 | 6.3~12.5 | 12.5~18.5 | 20~40 | 25~50 | 30~100 |
| Max Conveying Length(m) | 60 | 70 | 50 | 45 | 35 | ||
| Power(kw) | 2.2~7.5 | 3~7.5 | 4~11 | 5.5~18.5 | 7.5~22 | 11~22 | 15~37 |
Main Features
1.Widely used in cement,grain,coal,thermal power,metallurgy,chemical and other industries.
2.Large delivery capacity, it can reach 8m3/h-700m3/h.
3.Low energy consumption in delivering, it can save energy 40%-60% compared with spiral conveyer.
4.Compact structure and good sealing.
5.Flexible arrange. Import and export flexible, elevated, ground, pit, level, climbing (less than 10 °) all can install, conveying length can be based on user design.
6.Stable and reliable operation,long service life and convenient maintenance, low using cost.
Application
High Quality Scraper Conveyor Drag Chain Conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

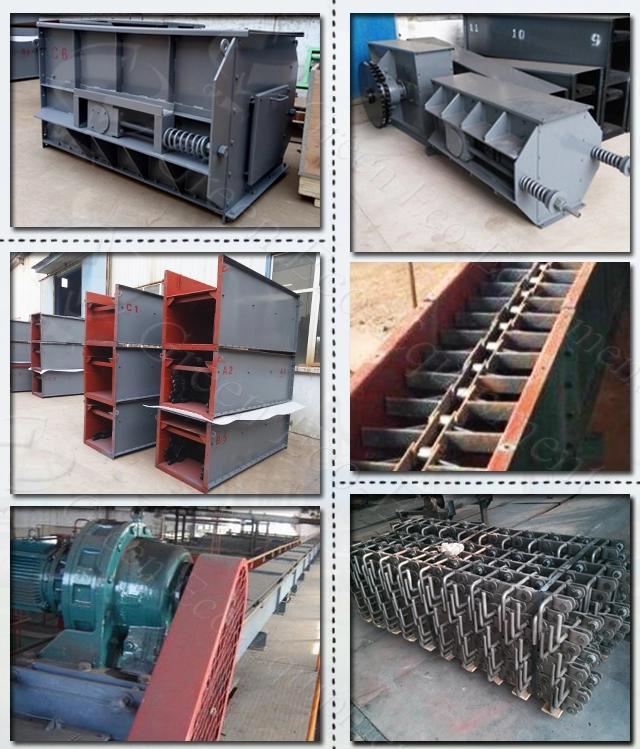

Details Show

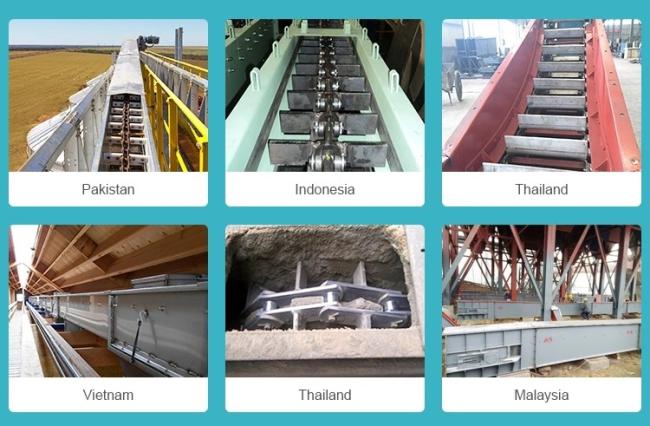

Field Usage
