Limestone Clinker Power Plant 1000mm Apron Feeder
Large Capacity Apron Feeder Plate Feeder For Limestone Clinker Power Plant
Product Description
Large Capacity Apron Feeder Plate Feeder is driving by cycle running chain, that can transport all kinds of bulk materials along horizontal or inclined (inclination angle is less than 25 °) direction. Since the carrying part and running parts are made by metal, thus compared with other continuous conveying machinery, apron conveyor can transport material with bigger bulk density & size, and material with sharp edges with strong abrasion, especially suitable for conveying high temperature( 600 ~ 700 ℃ )material.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power | Reference weight |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | (kg) | |
| WBZ160-9 | 1600 | 9000 | 0.01-0.15 | ≤1000 | 900 | 30 | 50000 |
| WBZ180-8 | 1800 | 8000 | 0.01-0.15 | ≤1000 | ≤1000 | 37 | 59000 |
| WBZ200-10 | 2000 | 10000 | 0.01-0.15 | ≤1000 | ≤1100 | 37 | 82000 |
| WBZ220-10 | 2200 | 10000 | 0.01-0.15 | ≤1200 | ≤1200 | 45 | 85000 |
| WBZ230-10 | 2300 | 10000 | 0.01-0.15 | ≤1200 | ≤1300 | 45 | 86000 |
| WBZ240-10 | 2400 | 10000 | 0.01-0.15 | ≤1600 | ≤1400 | 2x37 | 95000 |
| WBZ250-11.5 | 2500 | 11500 | 0.01-0.15 | ≤1800 | 1500 | 2x45 | 105000 |

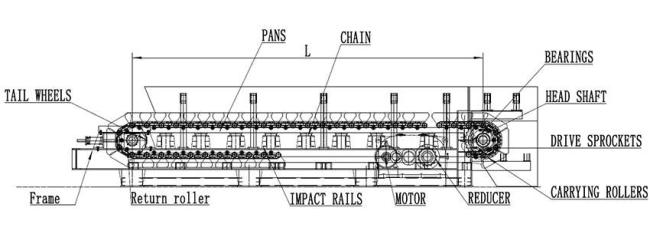

Working Principle
The working process is divided into two parts:
Firstly, the dynamic is produced by motor and transited to connecting rod and ratchet wheel by reducer.
Secondly, the dynamic prompts the connecting rod of eccentric device to reciprocate. The dynamic also prompts pawl and ratchet wheel to make driving sprocket rotate so that link plate intermittently moves.
As a result, minerals are conveyed.
Main Features
1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;
2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.
3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation.
4. The chain has heavy load, high strength and high impact resistance because of heat treatment; chain plate joint sleeve use alloy steel carburizing with high abrasion resistance.

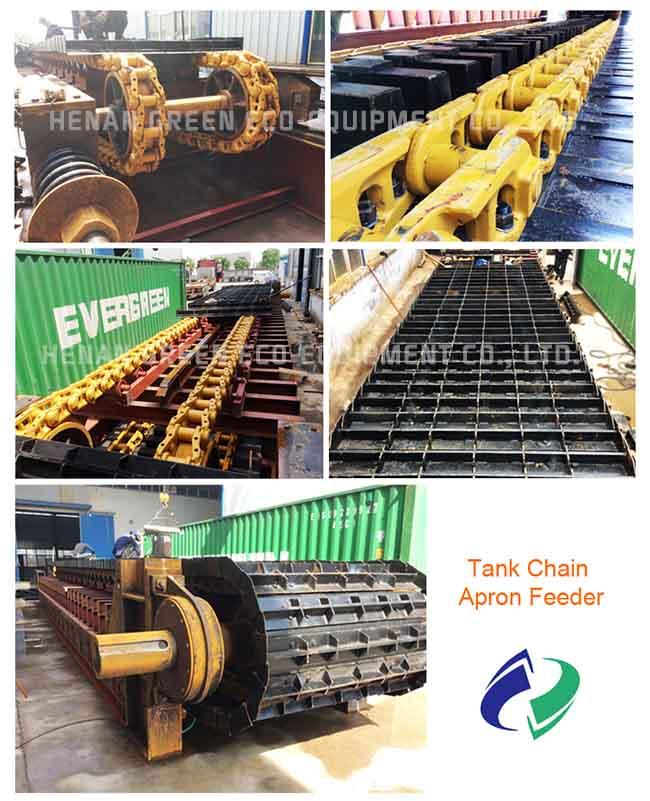

Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
