Customized Tubular Drag Chain Scraper Conveyor For Powder
Customized Tubular Drag Chain Conveyor Scraper Conveyor For Powder
Product Description
Customized Tubular Drag Chain Conveyor Scraper Conveyor For Powder is powder or small granular conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing vertically or at a large inclined angle. It is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
Main Parameters
| Model | MS20 | MS25 | MS32 | MS40 | MS50 | MS63 | MS80 |
| Trough Width(mm) | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Load-bearing Depth(mm) | 200 | 248 | 288 | 370 | 476 | 476 | 476 |
| Chain Speed(m/s) | 0.05~0.1 | 0.06~0.12 | 0.08~0.016 | ||||
| Capacity(t/h) | 3.15~6.3 | 5~10 | 6.3~12.5 | 12.5~18.5 | 20~40 | 25~50 | 30~100 |
| Max Conveying Length(m) | 60 | 70 | 50 | 45 | 35 | ||
| Power(kw) | 2.2~7.5 | 3~7.5 | 4~11 | 5.5~18.5 | 7.5~22 | 11~22 | 15~37 |
Main Features
1. Totally enclosed structure without pollution to the environment.
2. Light weight, small volume, space saving.
3. Convenient installation and maintenance.
4. Vertical or large inclined transportation, angles range from 0~30°.
5. Multiple material feeding point and discharging point.
6. Conveying distance is up to 40m.
7. Material temperature lower than 120°C.
8. Gear motor brand can be domestic or imported: Tailong, SEW, Siemens etc.
Application
High Quality Grain Scraper Conveyor Drag Chain Conveyor Machine grain scraper chain conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

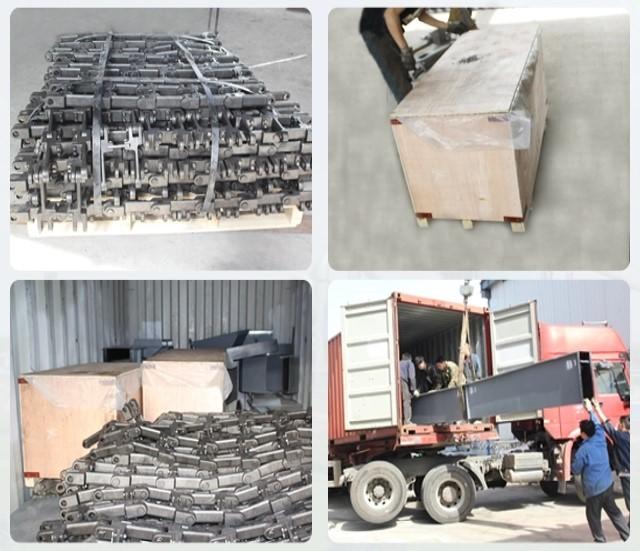

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Field Usage
