Bulk Material Lifting Bucket Elevator NE Chain Plate Type
Product Description

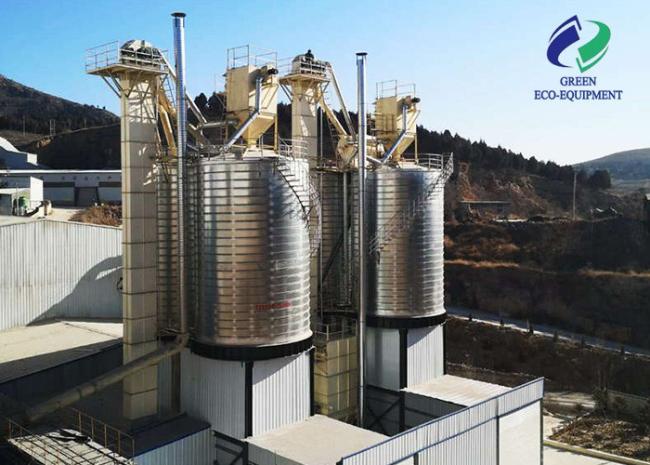

NE series Bucket elevator is one of the most widely used vertical conveying equipment. Which is suitable for powder and granular material (such as limestone, cement clinker, plaster power, coal) vertical transport.
Also, NE series bucket elevator adopts high strength plate chain, which is especially suitable for high grinding and high temperature material (such as cement clinker, ash), the temperature of material is up to 250 degree.
Features
1. Large capacity, from 15 – 800m3/h.
2. Max. height: 50 meters.
3. Introduced high strength plate chain, bucket elevator can transport 250 degree high temperature material.
4. Easy installation and maintenance.
Product Paramenters
|
Model
|
Capacity (m³/h)
|
Pitch (mm)
|
Speed (m/min)
|
Max.size of material (mm)
|
||||
|
Percentage
|
||||||||
|
10
|
25
|
50
|
75
|
100
|
||||
|
NE30
|
35
|
304.80
|
30.1
|
90
|
75
|
58
|
47
|
40
|
|
NE50
|
60
|
304.80
|
30.1
|
90
|
75
|
58
|
47
|
40
|
|
NE100
|
110
|
400
|
31
|
130
|
105
|
80
|
65
|
55
|
|
NE150
|
170
|
400
|
31
|
130
|
105
|
80
|
65
|
55
|
|
NE200
|
210
|
500
|
30
|
170
|
135
|
100
|
85
|
70
|
|
NE300
|
320
|
500
|
30
|
170
|
135
|
100
|
85
|
70
|
|
NE400
|
380
|
600
|
30
|
205
|
165
|
125
|
105
|
90
|
How to get bucket elevator’s quotation ? Tell us the followings please:
1. What's material will be transported by bucket elevator? And the density of material?
also the temperature of material? and its size.
2. How high is bucket elevator you need?
3. How much about the capacity of bucket elevator you need? 100t/h, 400t/h?
