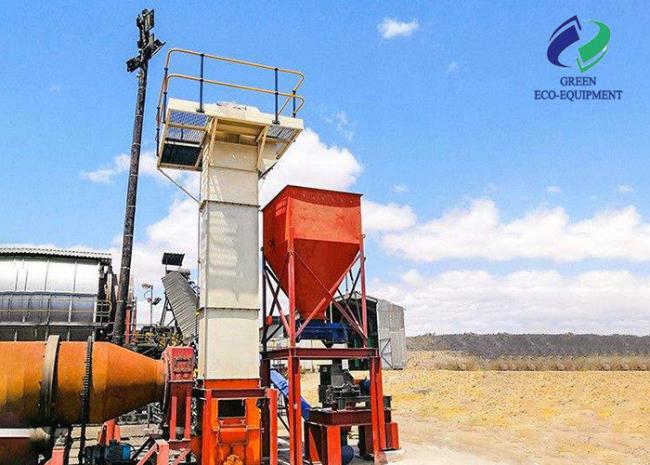

Coal Mining Gravel Hopper Bucket Elevator Hoisting Equipment



Working Principle of hopper bucket elevator:
Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chain, on which above or below is a drive sprocket and a divert sprocket. Continuous Chain or Belt Bucket Elevator for Cement are generally equipped with chassis to prevent the dust flying into the bucket elevator.





1,Application widely, not only lifting the common powder, granular and block material, but also lifting the high grinding material;
2,Low driving power, low energy consumption, energy conservation;
3,For lifting same material, energy consumption is 1/3~1/2 compared with the link chain bucket elevator;
4,The whole machine with full sealed design, no dust pollution while running;
5,The machine housing case adopt embossing structure, better stiffness, high precision, good-looking appearance;





Model	Capacity m 3 /h	Max. size of material (mm)
		Percentage %
		10	25	50	75	100
NE15	15	65	50	40	30	25
NE30	32	60	75	58	47	40
NE50	60	90	75	58	47	40
NE100	110	130	105	80	65	55
NE150	170	130	105	80	65	55
NE200	210	170	135	100	85	70
NE300	320	170	135	100	85	70
NE400	380	205	165	125	105	90
NE500	470	240	190	145	120	100
NE600	600	240	190	145	120	100
NE800	800	275	220	165	135	110





We mainly provide the following bucket elevators (Lifting equipment) :

• TD belt bucket elevator
• TH ring chain bucket elevator
• TB plate chain bucket elevator
• NE cement bucket elevator
• TDG/THG efficient bucket elevator
• TZD silo bucket elevator
